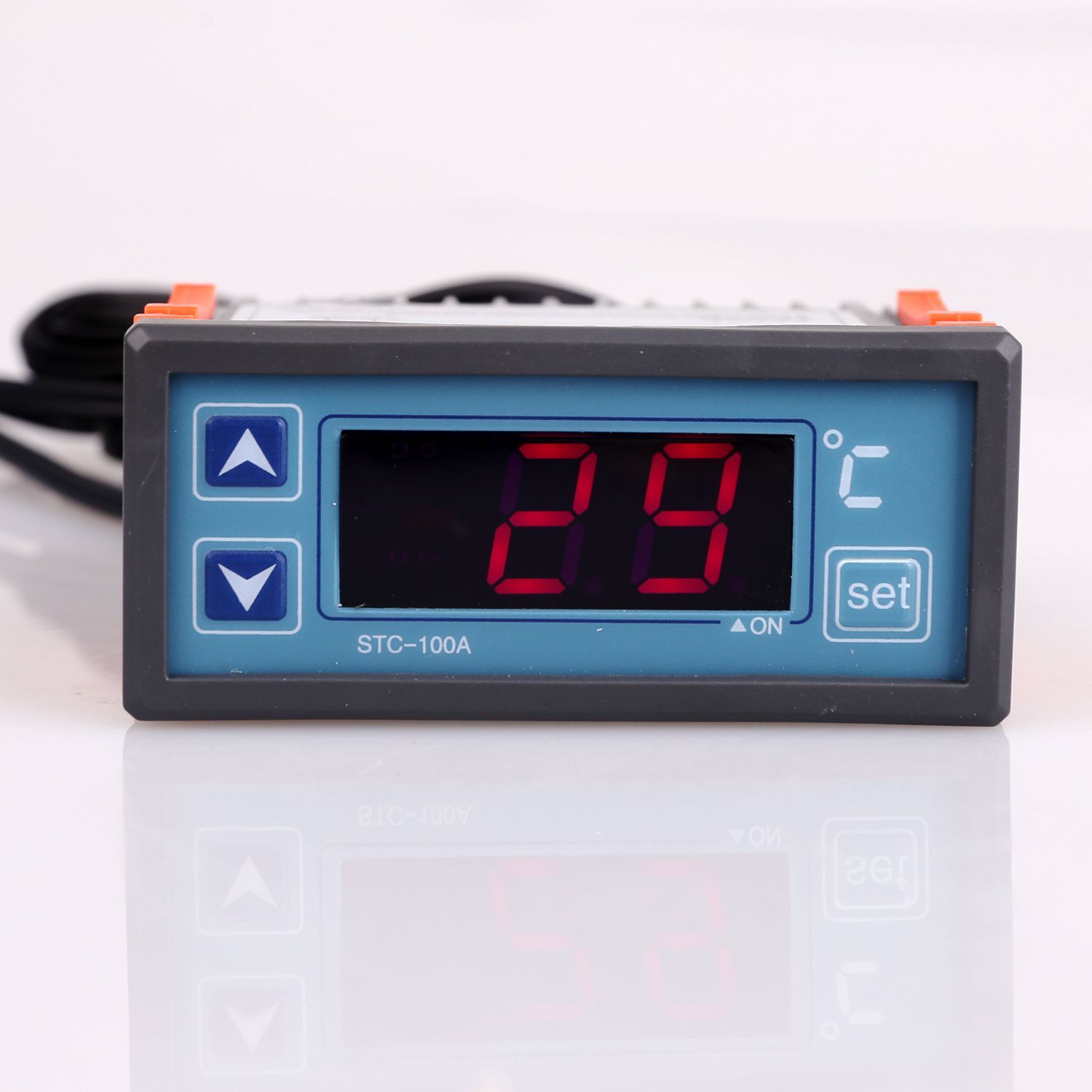

LCD Display Intelligent Pid Temperature Controller
| Price: |
US $ 5.2-6.9/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram |
| Prod Model: |
STC-100A |
| Customized Voltage: |
Available |
| Silk Print: |
Available |
| Usage: |
Refrigeration&HVAC |
| Sensor: |
Ntc |
| Color: |
Grey and Orange |
| Function1: |
Deforst |
| Function2: |
Compressor |
| Function: |
Fan |
| Product Size: |
75mm*34.5mm*85mm |
| Hole Size: |
71mm*29mm |
Product Description

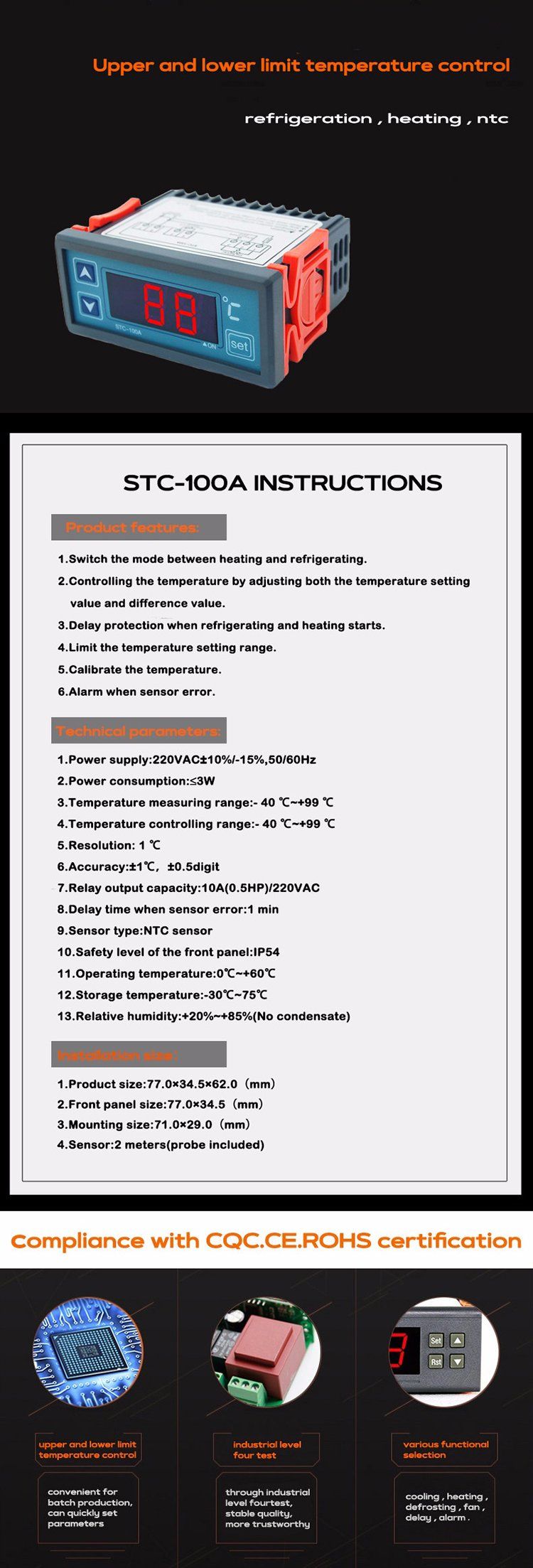

Product features:
1.Switch the mode between heating and refrigerating.
2.Controlling the temperature by adjusting both the temperature setting value and difference value.
3.Delay protection when refrigerating and heating starts.
4.Limit the temperature setting range.
5.Calibrate the temperature.
6.Alarm when sensor error.
Technical parameters:
1.Power supply:220VAC±10%/-15%,50/60Hz
2.Power consumption:≤3W
3.Temperature measuring range:- 40 ºC~+99 ºC
4.Temperature controlling range:- 40 ºC~+99 ºC
5.Resolution: 1 ºC
6.Accuracy:±1ºC,±0.5digit
7.Relay output capacity:10A(0.5HP)/220VAC
8.Delay time when sensor error:1 min
9.Sensor type:NTC sensor
10.Safety level of the front panel:IP54
11.Operating temperature:0ºC~+60ºC
12.Storage temperature:-30ºC~75ºC
13.Relative humidity:+20%~+85%(No condensate)
Installation size:
1.Product size:77.0×34.5×62.0(mm)
2.Front panel size:77.0×34.5(mm)
3.Mounting size:71.0×29.0(mm)
4.Sensor:2 meters(probe included) | The mounting holes size | 70.5 x 28.5 ( mm) |
| The running environment temperature | -5 ºC ~ 60 ºC |
| The storage temperature | -30ºC ~ 85 ºC |
| The relative humidity | 20% ~ 85% |
| The power supply voltage | 220 VAC ±10% (12 V ±10% optional) |
| Power consumption | ≤5 W |
| Temperature measurement range | -50 ºC ~ 99 ºC |
| Relay contacts capacity | 10 A / 250 VAC |
Company information:
XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO.,LTD
Founded in April 2005, is a professional manufacturer in the field of Micro-computer temperafure controller Micro-computer humidity controller, Micro-computer temperature and humidity controller, Micro-computer pressure controller, Digital thermometer and hygrometer, refrigeratory electric control box, the products adapt to many locations and areas that need the measuring and controlling of temperature, such as freezing and cold store, refrigeration display cabinet, seafood pond and so on..
Our services:
1) OEM service available and custom designs are welcomed!
2) Available in different assorted colors
3) We can offer you premium quality,competitive,price,prompt delivery and low minimum orders.
4) We can manufacture all kinds of digital thermometer according to your design and sample,we are more than happy to answer even the smallest question for you and we will gladly give you a bid on any item you are interested in.
Feature:
1) Unique design
2) Fine craftsmanship and special design
3) Any designs,logos can be printed
4) Customized logos and designs are accepted!
Shipping terms:
1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:15-25days(Depends on the Qty) after advanced payment received
QC:
All digital thermometer must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packed
Packaging & Delivery:
Packaging Details:
one piece in one paper box, 100 boxes in one carton
Carton Dimension:43*33*42cm one carton of product weight:23.5kg
Delivery Detail:1-7days
Delivery:
We can send DHL, FEX, TNT express, etc.Can also be sent by sea
XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO Ltd
Founded in April 2005 is a professional manufacturer in the field of Micro computer temperafure controller Micro computer humidity controller Micro computer temperature and humidity controller Micro computer pressure controller Digital thermometer and hygrometer refrigeratory electric contron display cabinet seafood pond and so on ol box the products adapt to many locations and areas that need the measuring and controlling of temperature such as freezing and cold store refrigeration
Through the research of above locations need the measuring and controlling temperature, we developed JD, JDC, JTC, JDJ, YK and electric control box etc several series.
Excellent pertinence advanced assembling, easy structure, strong anti-interference, reliable stability. We can make products according to your needs.
Usually, we will quote the FOB Shanghai price for you, if you need CIF price, please tell me your destination port, I will caculate the price for you. Our minimum order is 1000PCS, and the terms of payment is T/T or L/C. And the delivery time is 30 days after order placed.
We sincerely hope that we can have long-term cooperation with you, and to be our business partner. If you have some questions, please tell me, we will send the products quotation to you.
