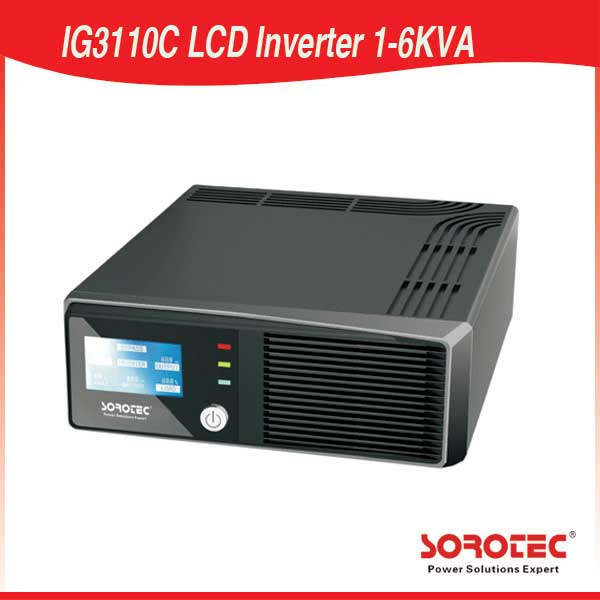

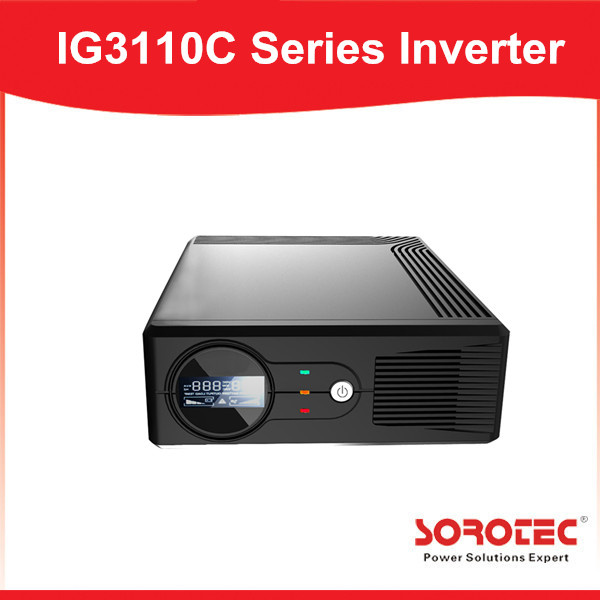

LCD Display Modified Sine Wave Power Inverter 500-2000va
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,others |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
IG3110C 500-2000KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD: |
AC, Battery, Fault, etc |
| Switch Time: |
Standard 2~4ms Typical 6ms |
| Wave Form: |
Modified Sine Wave |
| Frequency Regulation: |
50/60Hz+0.1Hz |
| Voltage Regulation: |
220/230/240VAC± 2% |
| Frequencyrange: |
50/60Hz |
| Voltagerange: |
176VAC-280VAC(± 3VAC) |
| Nominal Frequency: |
50/60Hz |
| Nominal Voltage: |
220/230/240VAC |
Product Description
LCD Display Modified Sine Wave Power Inverter 500-2000VAKey Features:1. LCD Display
2. Full automatic and silent operation
3. Rack Tower design
4. High Frequency
5. Off mode charging
6. Compact size for convenient use and storage
7. Built-in 10AMP or 20AMP super charger for up to 200Ah battery.
8. Small scale and cost effective inverter for home appliances and office equipment
9. Three-steps intelligent charging control to recharging time
Technical Specifications | Model | IG3110C 500-2000VA |
| 500-12 | 1000-12 | 2000-24 | 1000-24 |
| Capacity | 500VA/300W | 1000VA/600W | 2000VA/1200W | 1000VA/600W |
| Nominal voltage | 220/230/240VAC |
| Nominal frequency | 50/60Hz |
| Input |
| VoltageRange | 176VAC-280VAC(± 3VAC) |
| FrequencyRange | 50/60Hz |
| Output |
| Voltage Regulation | 220/230/240VAC± 2% |
| Frequency Regulation | 50/60Hz+0.1Hz |
| Wave Form | Modified sine wave |
| Switch time | Standard 2~4ms Typical 6ms |
| Current |
| Charge Current | 10A | 10A | 10A | 6A |
| DC Voltage | 12V | 12V | 24V | 24V |
| Overcharge Protection | 15V | 15V | 30V | 30V |
| Display |
| LCD | AC, battery, fault, etc |
| Operating Environment |
| Temperature | 0 º C~40º C |
| Humidity | 5%~95%(< 40º C, no condensation) |
Storage Temperature
| -25º C~55º C |
| Elevation Noise (within 1 metre) | Less than 1500 meter
< 45dB |
| Physical |
| Weight(KG) | Net weight | 2.0 | 2.5 | 2.5 | 2.0 |
| Gross weight | 2.2 | 2.7 | 2.7 | 2.2 |
| Dimension: WXDXH mm | 224× 225× 80 |
