LCD Display Refrigeration Temperature Controller Stc-8000h
| Price: |
US $ 5.67-7.46/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram |
| Prod Model: |
STC-8000H |
| Customized Voltage: |
Available |
| Silk Print: |
Available |
| Usage: |
Refrigeration&HVAC |
| Sensor: |
Ntc |
| Color: |
Grey and Orange |
| Feature: |
Universal Single Sensor |
| Function1: |
Alarm |
| Function: |
Compressor Protection Delay |
| Product Size: |
75mm*34.5mm*85mm |
| Hole Size: |
71mm*29mm |
Product Description

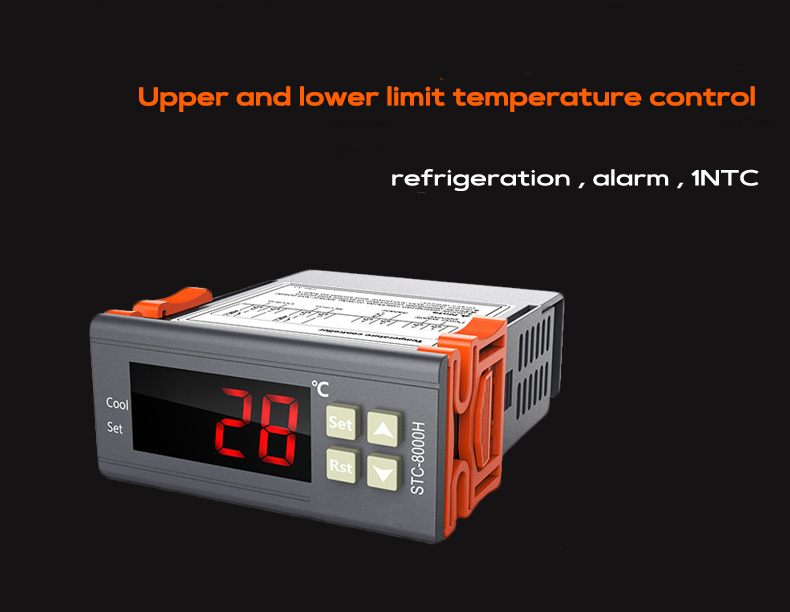

LCD Display Refrigeration Temperature Controller STC-8000HProduct features:
1.STC-8000H is a universal single-sensor temperature controller,with refrigeration,exceeding temperature limit alarm functions.
2.Compressor delay time adjustable,after electrified exceeding temp.limit alarm delay adjustable.
3.Suitable for refrigerant industries such as refrigerator,refrigerator car,etc.
Specifications and Technical Parameters: | Model number | STC-8000H |
| Power Supply | 220VAC±10%(12V±10% optinal) |
| Measure temperature range | -50ºC~99ºC |
| Resolution | 1ºC |
| Accuracy | -50ºC~+70ºC,±1ºC,±2ºC at others,can drive single phase compressor ≤1/2HP |
| Usage | Suitable for refrigerant industries such as refrigerator,refrigerator car,etc. |
Technical parameter:
1.Power supply:220VAC±10%/-15%,50/60Hz
2.Temperature measurement range: - 50 ºC~+99 ºC
3.Resolution: 1 ºC
4.Refrigeration output contact capacity:10A/277VAC
5.Sensor error delay time:1min
6.Safe level:IP65
7.Operation humidity:20~85%(no condensate)
8.Power consumption:≤3W
9.Temperature controlling range:- 40 ºC~+50 ºC
10.Accuracy:-50ºC~+70 ºC,±1ºC,±2ºC at others,can drive single phase compressor ≤1/2HP
11.Sensor:NTC
12.Operation temperature:0ºC~60ºC
13.Storage temperature:-30ºC~75ºC
Installation size:
1.Product size:75.0×34.5×85.0(mm)
2.Front panel size:75.0×34.5(mm)
3.Mounting size:71.0×29.0(mm)
4.Sensor:2 meters(probe included)

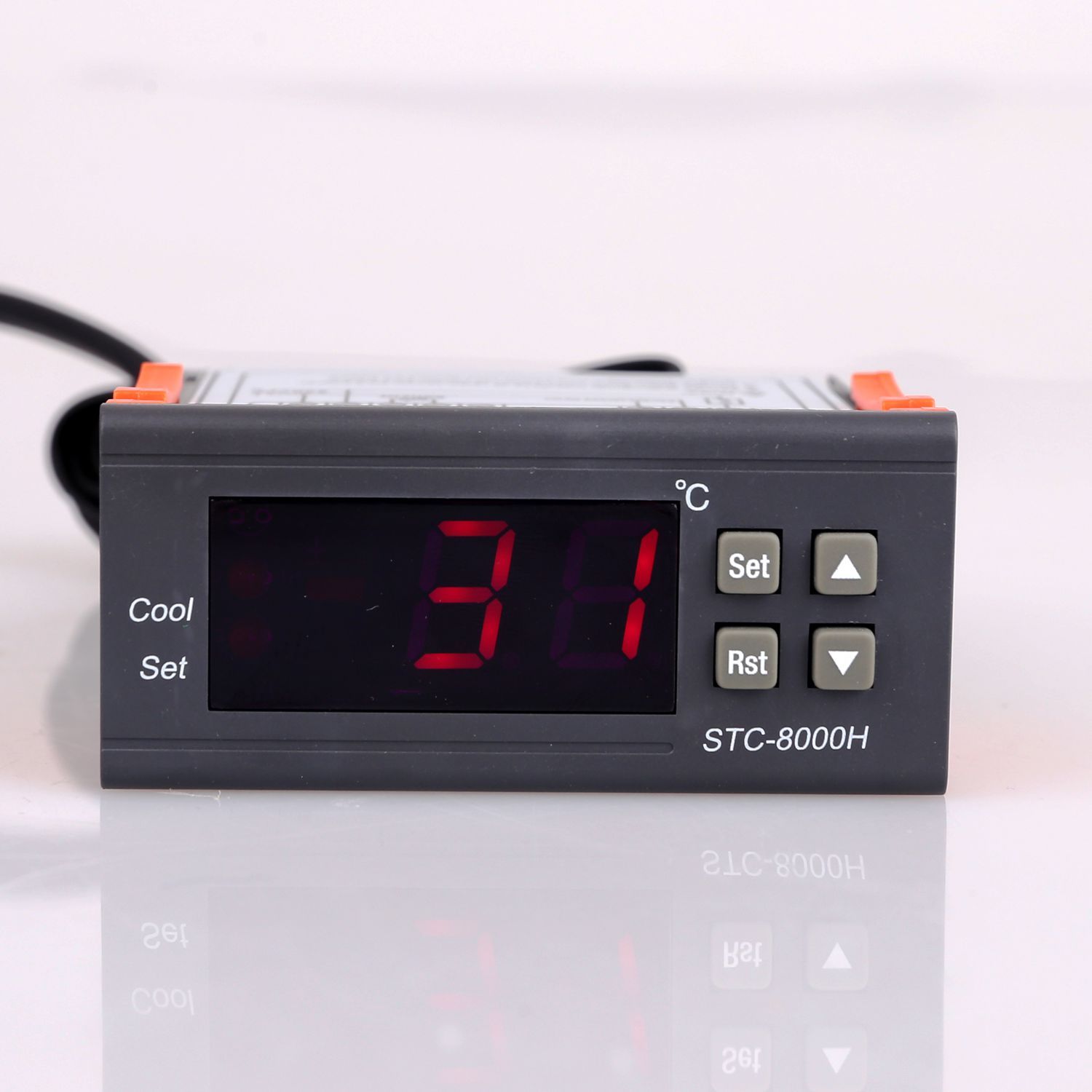

Product Display:

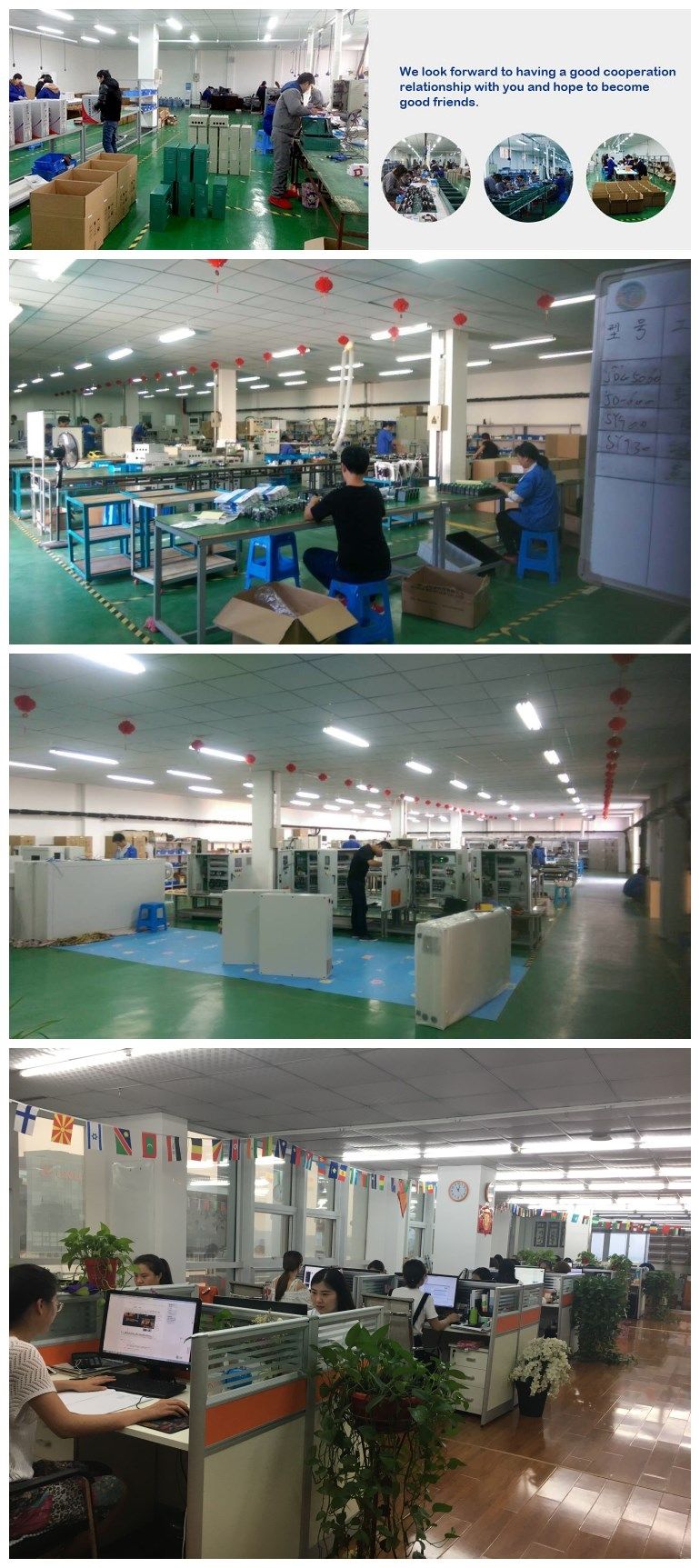

Company Information:
XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO.,LTD
Founded in April 2005, is a professional manufacturer in the field of Micro-computer temperafure controller Micro-computer humidity controller, Micro-computer temperature and humidity controller, Micro-computer pressure controller, Digital thermometer and hygrometer, refrigeratory electric control box, the products adapt to many locations and areas that need the measuring and controlling of temperature, such as freezing and cold store, refrigeration display cabinet, seafood pond and so on..
QC:
All of products must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packed
FAQ:
1.MOQ is 100 pieces.
2.OEM/ODM is welcomed!
3.Shipping terms:1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:7-25days(Depends on the Qty) after advanced payment received
4.Shipping way is depand on your choose.
XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO Ltd
Founded in April 2005 is a professional manufacturer in the field of Micro computer temperafure controller Micro computer humidity controller Micro computer temperature and humidity controller Micro computer pressure controller Digital thermometer and hygrometer refrigeratory electric contron display cabinet seafood pond and so on ol box the products adapt to many locations and areas that need the measuring and controlling of temperature such as freezing and cold store refrigeration
Through the research of above locations need the measuring and controlling temperature, we developed JD, JDC, JTC, JDJ, YK and electric control box etc several series.
Excellent pertinence advanced assembling, easy structure, strong anti-interference, reliable stability. We can make products according to your needs.
Usually, we will quote the FOB Shanghai price for you, if you need CIF price, please tell me your destination port, I will caculate the price for you. Our minimum order is 1000PCS, and the terms of payment is T/T or L/C. And the delivery time is 30 days after order placed.
We sincerely hope that we can have long-term cooperation with you, and to be our business partner. If you have some questions, please tell me, we will send the products quotation to you.
