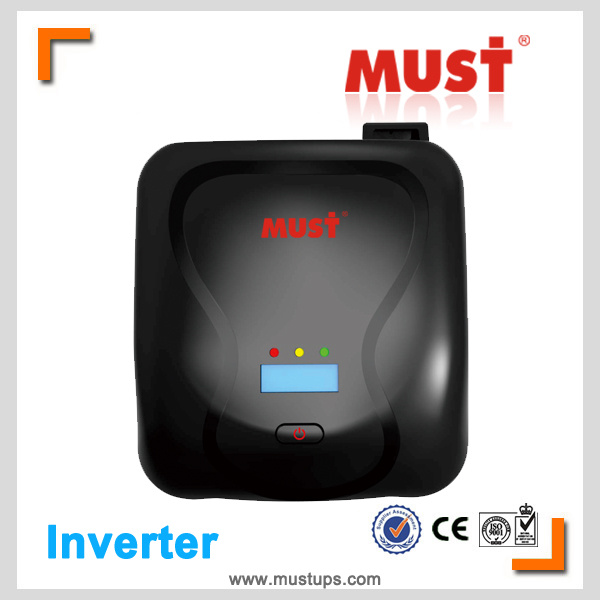

LCD New Design 1000va 2000va Small UPS Inverter Charger

Name: LCD New Design 1000va 2000va Small UPS Inverter Charger
Brand: all-electronics-online.com
SKU: 738009425
Availability: InStock
Rating: 4.8 (132 reviews)

Price:	US $ 55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EP1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage Range:	90-280VAC
Frequency:	50-60Hz(Auto Detection)
Output Voltage:	220/230/240VAC
Waveform:	Modified Sine Wave
Charging Current(1):	10A+/- 2A
Charging Current(2):	20A+/-2A

Product Description

High reliability with CPU control.
Inner-equipped protection of over-load, short-circuit, over-voltage, low-voltage over-heating
Self-diagnosis function, capable of detecting status at inverter and battery in the Inverter.
Automatic voltage regulation (AVR), most suitable for areas where commercial power supply is unstable.
Extra long standby time. And additional battery connections possible for longer power supply time according to customer's requirements.

MODEL			EP11-1200	EP11-2400
Default Battery System Voltage			12VDC	24VDC
INVERTER OUTPUT	Reted Power		1200VA/720W	2400VA/1440W
	Waveform		Modifide Sine-wave
	Nominal Output Voltage RMS		230V
	Output Voltage Regulation		+10/-18%
	Output Frequency		5OHz/60Hz±0.5 Hz
	Inverter Efficiency(Peak)		>80%
	Line Mode Efficiency		>95%
	Power Factor		0.72
	Typical Transfer Time		Typical 15~20ms 40ms max
AC INPUT	Voltage		230VAC
	Selectable Voltage Range	Narrow	170~280VAC
		Wide	90~280VAC
	Frequency Range		50Hz/60Hz (Auto sensing)
BATTERY	Nominal Input Voltage		12VDC	24VDC
	Minimum Start Voltage		10.5VDC	21.0VDC
	Low Battery Alarm		10.5VDC±0.3V	21.0VDC±0.3V
	Low Battery Cutoff		10.0VDC±0.3V	20.0VDC±0.3V
	High Voltage Alarm		16.0VDC±0.3V	32.0VDC±0.3V
	High Battery Voltage Recover		15.0VDC±0.3V	30.0VDC±0.3V
CHARGER	Charger Voltage (Vbat<12.5V)		14.4VDC±0.4V	28.8VDC±0.4V
	Charger Voltage (Vbat>12.5V)		13.7VDC±0.2V	27.4VDC±0.2V
	Charging Current 10A		10A±2A
	Charging Current 20A		20A±2A
	Overcharge Protection S.D.		16VDC ±0.4A	32VDC ±0.8A
BYPASS & PROTECTION	Nominal Input Frequency		50Hz or 60Hz
	Overload Protection (SMPS Load)		FUSE
	Output Short Circuit Protection		FUSE
	Bypass Breaker Rating		10A
	Max Bypass Current		10Amp
MECHANICAL SPECIFICATIONS	Dimensions (WHD)		24625387mm
	Net Weight (kg)		2.3	2.5
	Shipping Dimensions(WHD)		320332127mm
	Shipping Weight (kg)		2.9	3.1
OTHER	Operation Temperature Range		0°C to 40°C
	Audible Noise		60dB MAX
	Display		LED+LCD
	Standard Warranty		1 year

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
