Name: LCD Screen VHF Meeting Microphone System
Brand: all-electronics-online.com
SKU: 712850192
Availability: InStock
Rating: 4.8 (145 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	K-2002
Frequency Range:	VHF 190-280MHz
Channel:	2
Frequency Group:	8
LCD Screen:	Yes
Noise:	<95dB
Hi-Fi:	Hi-Fi
Application:	Commercial
Certification:	CCC

Product Description

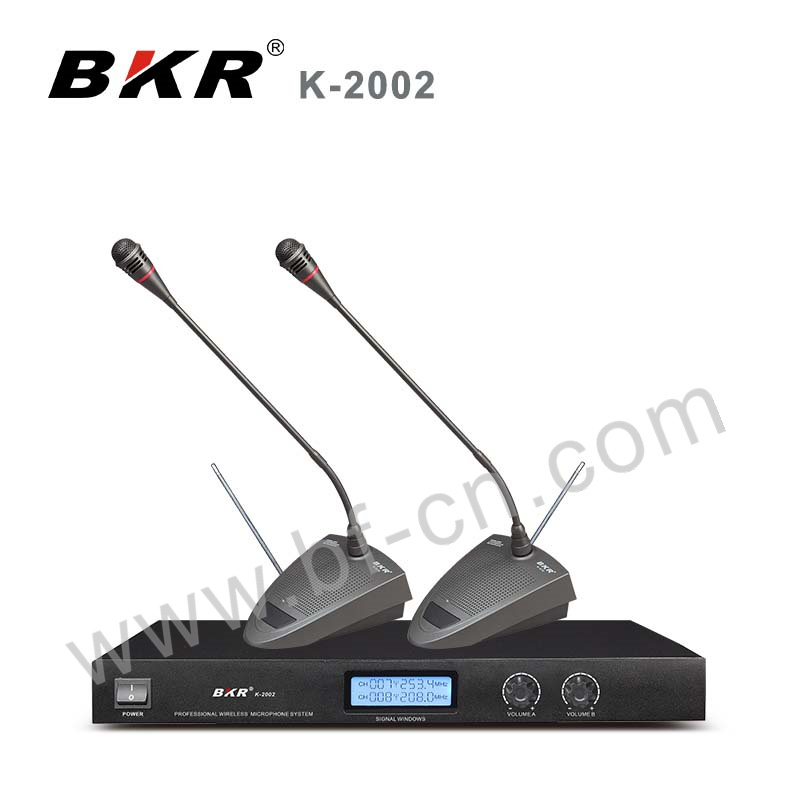

LCD screen VHF meeting microphone system

Function:
*2 channels wireless microphone system. Fixed frequency.
*8 controllers can used simultaneously.
*Back panel:2 pull rod antennas.2 balanced output and 1 mixed unbalanced output.
*Front panel: LCD screens on the controller show working status.
*Microphone power consumption is 60mA. AA 1.5V*2 battery,support 8 hours.
*Light ring on the microphone head will display working status.
*Working distance: 30-60meter.
*It's suitable for various kinds of conference and performance occasion.

Paramter:
Channel number: 2
Oscillation Mode: Quartz crystal
Modulation Mode: FM
Frequency Range: VHF 190~280MHz
Frequency Stability : +0.001%
Max. Deviation Range: +50KHz
S/N Ratio : >105dB
T.H.D: <0.5%@1KHz
Sensitivity: 1.2/UV@S/N=12dB
Power Supply: DC 12~17V
Audio Output: Independent: 0-400mV
Mixed: 0-300mV

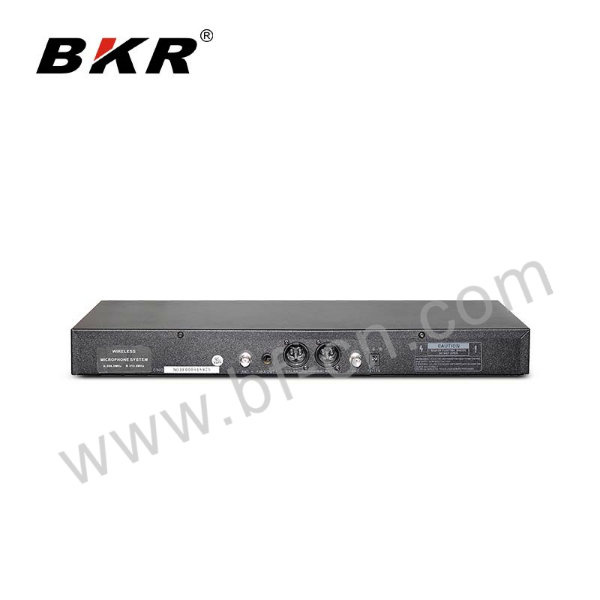

Wireless microphoen system back panel of the receiver:

Balanced XLR output: 2
Mixed unbalanced 6.3 output : 1

Transmitter:

Power key for put on/off microphone
Plastic material
Power indicater light
1.5V AA battery *2

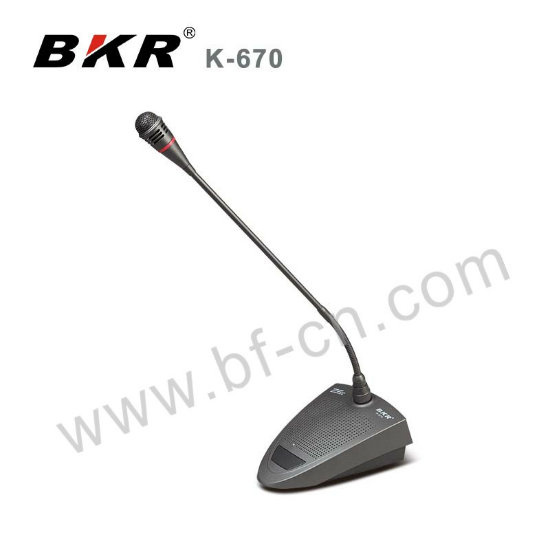

Classic type meeting microphone

Option transmitter as following:

GS03H GS03T

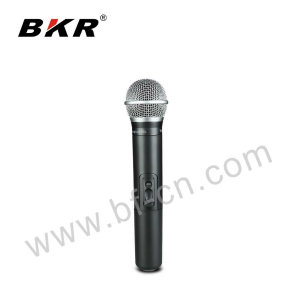

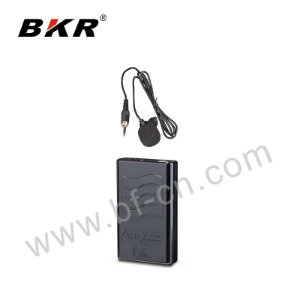

wireless handheld microphone wireless bodypack microphone

Enping BaoFeng Electronic Equipment Factory was established in 2006 and located in microphone town -Enping city, Guangdong Province. We are a high-tech enterprise which assembling of designing, developing, manufacturing, selling and after-sale serving as a whole. Our products mainly include digital wireless conference system, wireless conference microphone, wireless microphone and other audio equipment etc.

Through our efforts, our R&D group had already developed more than 30 products and gained several national patents. Out products sell well in domestic and oversea. The quality of our products has got much affirmation from our customers.

Our company has got mature experience of OEM and ODM. We take "Technique Advanced, Investigate Bravely, Quality First and Customers Superior" as our principle to provide the best products and service to customers.

We sincerely welcome worldwide clients to cooperation with us and create mutually beneficial business relation in the future.
