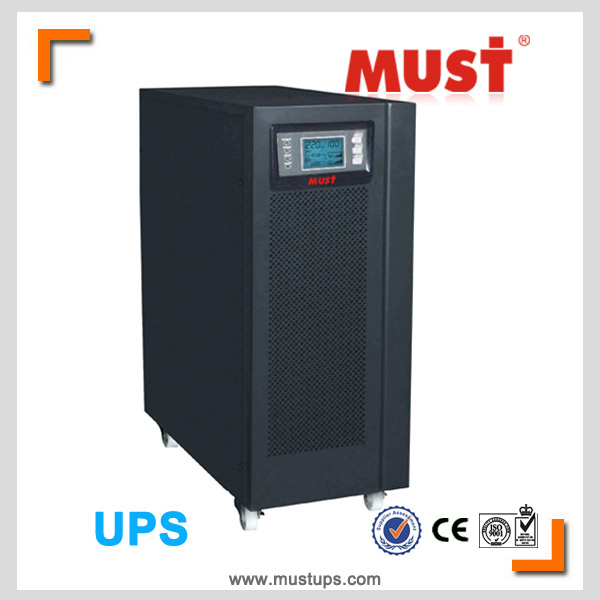

LCD Single Phase 6kVA 10kVA Online UPS

Name: LCD Single Phase 6kVA 10kVA Online UPS
Brand: all-electronics-online.com
SKU: 738912245
Availability: InStock
Rating: 4.8 (49 reviews)

Price:	US $ 480/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EH5000 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wave:	Pure Sine Wave
Power Factor:	0.8
Inside Battery:	16 PCS of 12V 7.2ah
External Type:	192VDC
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	OEM

Product Description

Application:
Applied to servers, data centers, critical network devices, sensitive electronic equipment, telecom. Enterprise servers, small and medium sized lans, small rooms, small precision electronic instrument.

Main Features:
Paralle function
True N+1 Redundancy
DSP Double-Conversion On-line Sinewave Design
Input Power Factor Correction
Hot-Swappable User Replaceable Batteries
LCD Display with Advanced Monitoring for Easy UPS Management
Programmable 50/60Hz Frequency Conversion
Optional Remote Emergency Power Off (REPO)
Wide Input Voltage Window
Precision Output Voltage Regulation
Superior Brownout, Surge & TransientProtection
Optional Extended Battery Banks & Chargers
RS-232C, USB & Optional SNMP/HTTP Agent
WINPOWER® UPS Monitoring & Management Software

Model	HC6K	HC6KS	HC10K	HC10KS
Capacity(VA/W)	6KVA/4.8KW		10KVA/8KW
INPUT
Phase	1PH 2W+G
Voltage Range	120 ~ 276VAC
Frequency	46~64Hz; 50~60Hz Autoadaptation
Power Factor	>0.99
OUTPUT
Voltage Range	220/ 230/240* (1±1%) VAC
Frequency Range	Main Mode: (46 ~ 54)Hz/(56 ~ 64)Hz Battery Mode: 50 Hz(± 0.1%) Hz or 60 Hz(± 0.1%) Hz
Crest Ratio	3:1
Power Factor	0.8
Wave Form	Pure Sine wave
Outlet	Hard Wiring with Terminal Black
TRANSFER TIME
Transfer Time	Zero
Inverter To Bypass	Zero
INDICATOR
LED Panel	Load/ Battery Capacity/ Main Mode/ Bypass Mode/ Fault
LCD Panel	Load/ Battery/ Input/ Output/Operation Mode
ENVIRONMENT
Operating Environment	0- 40°C
Humidity	20-90 % (non-condensing)
Noise Level	< 60dB @ 1 Meter
Temperature	-25°C - 55°C(no battery)
OTHER
Protection	Load<105%, Keeping working; 105%1min; 125% 30sec
Efficiency	Up to 90%
Battery Inbuilt	16pcs*12V/7.2Ah/ 9Ah
Battery DC Voltage	DC192V
PHYSICAL
Dimension DWH(mm)	248500616	240500460	248500616	240500460
Net Weight(kgs)	57	18	67.5	20
MANAGEMENT
Smart RS-232/USB	Supports Windows®98/2000/2003/XP/Vista/2008,Windows®7,Linux,and MAC
Optional SNMP	Power management from SNMP manager and web browser
* Product Specifications are subject to change without further notice.

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
