| Prod Model: |
DTH-80-C |
| Humidity Range: |
20%~98% R.H. |
| Analytic Accuracy: |
0.1degree |
| Low Temperature: |
-40degree |
| High Temperature: |
150degree |
| Cooling System: |
Air Cooling |
Product Description

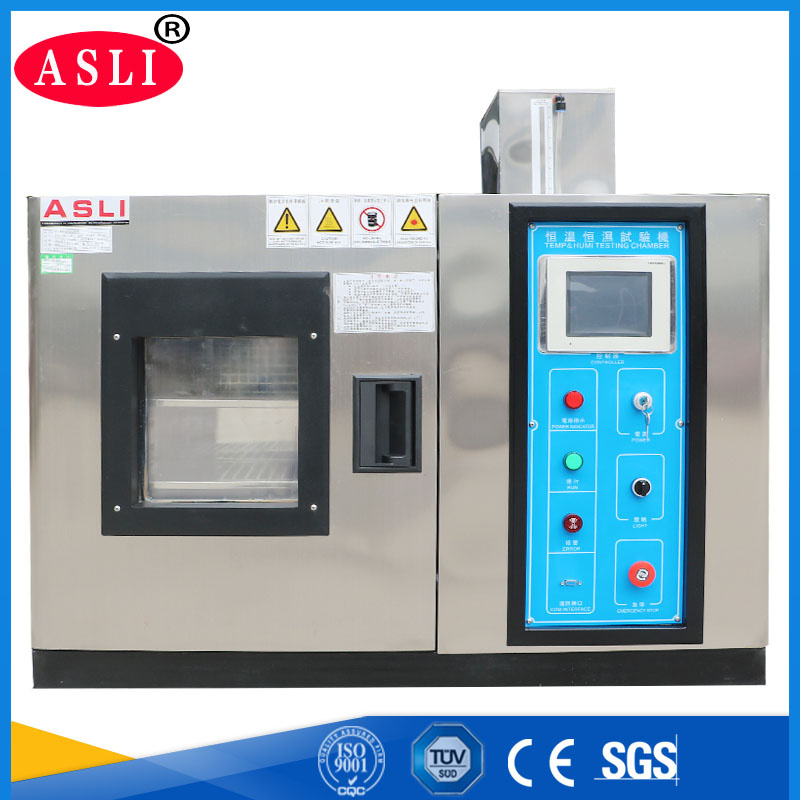

Lcd Touch Screen Style Desktop Cold Climatic Temperature Testing Benchtop Eenvironmental Test Chamber
Cooling system:
1.Impoerted power saving full closed compressor
2.Cooling method: air cooling. 3.Imported dry filter,electrol valve.,etc freeze accessories. 4.Air cooling type Conder,attached with heat dissipation moter device or water cooling pipe. 5.ryogenic system adopts dual refrigeration loop, fast cooling. 6.Expansion system: capillary capacity control refrigeration system.
Heated humidification system:
1.Adopt U-TYPE SUS#304ss Electric heat pipe heater
2.Humidify barrel made of SUS#304ss,with observation glass and electromagnetic valve of
water level
3.Idepently heat,wet humidify,dehumidify system.
4.With auto heating,wetting and demist function,with observation glass and imported tube. 5.Humidification water recycling, automatic filling water system,25L built in draw-out type
water tank
Saftey device:
1.With no-fuse protection switch
2.Over-heat protection
3.Ceramics E-16 fuse
4.high low temperature protection switch for compressor
5.over heat swith for compressor
6.Water shortage alarm, stop machine for long time water shortage protection
Technical Parameters: | Temperature Range | Low Temperature: D:-40ºC(Temperature according to customer's requirement)
High temperature: 150ºC |
| Humidity Range | 20%~98% R.H. |
Analytic Accuracy/
Distribution uniformity of temperature and humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
Control Accuracy of
Temperature and Humidity | ±0.5ºC; ±2.5% R.H. |
| Temperature Rising/ Falling Speed Rate | Temperature rising approx. 0.1~3.0ºC/min / temperature falling approx. 0.1~1.5ºC/min;
( The Falling Speed Rate Min.1.5ºCper minute is a special optional condition) |
Temperature humidity
control chart | |
| Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated,
Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling/single segment compressor(-40ºC, double segment compressor -70ºC) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand,Germany Bizer Brand |
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ |
| Approx. Weight (Kg) | 300 |
Accessories :
2 pcs SUS#304ss sample setting sheives, 5 pcs wet and dry bulb gauze five, 4 pcs universal wheel,4 pcs
horizontal foot cup.
Warranty:
1 year warranty for the full system of machine (except for natural disasters or man-made damage), life-long
maintenance.
Power:
AC220V ,1 phase 3lines, 50/60Hz
1. Are your company a trading one or a factory?Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. After an order is placed, when to deliver?Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. How to install and training?If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.
6.What's your main products? Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
