LCD Window Stamped Aluminum Metal Overlay Membrane Switch

Name: LCD Window Stamped Aluminum Metal Overlay Membrane Switch
Brand: all-electronics-online.com
SKU: 778025705
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPI-AOMS-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Overlay:	Anodized Aluminum
Process:	Stampled Overlay
Surface Treatment:	Anodize or Wire Drawing
Circuit:	Pet 0.125mm
Window:	LCD Window
Type:	Flexible
Application:	Telecommunication Equipment
Structure:	Multi-Layer
Material:	Aluminum
Contact Type:	Control Keypad
Detection Method:	Test by Computer
Brand:	Cmute

Product Description

1. 1. Universal information:

Place of Origin:	Shenzhen China
Brand Name:	GPI
Model Number:	GPI-AOMS-001
Certification:	ISO9001:2008, SGS,Rohs

2. 1. Business Terms:

Minimum Order Quantity:

50 pieces

Price:

USD 0.6~15

Packaging Details:

Inner packing:1pc/PP bag,PE bag,gift box Outer packing: exporter standard carton, or according to customer request

Sample Delivery Time:

Around business days after deposit received

Production Delivery time

14-18 working days after PO confirming.

Payment Method:

T/T/ western union/ paypal or L/C

Payment Terms:

Sample and tooling:100% payment before order
Mass Production:30% downpayment,70% balance before shipment

Supply Ability:

100,000 Piece/Pieces per Month

3. 1.    Description:

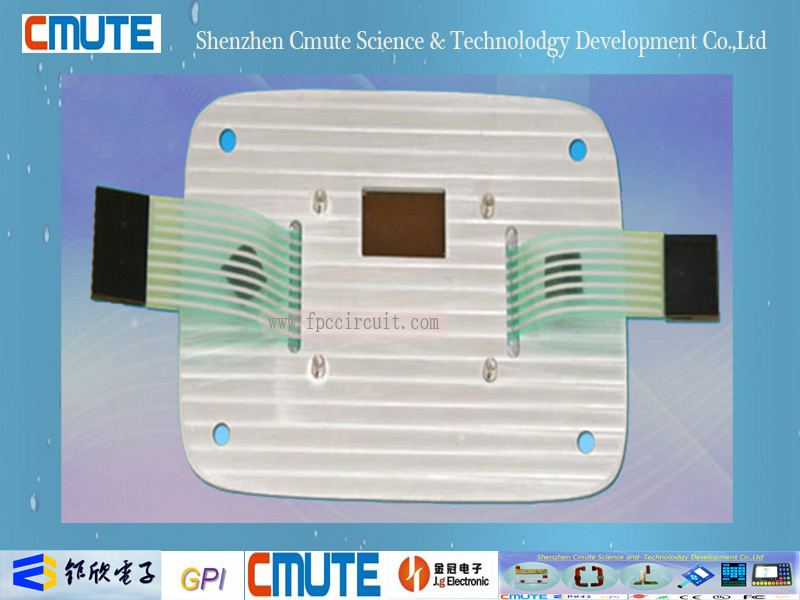

LCD window Stamped Aluminum Metal Overlay Membrane Switch
1.      Aluminum overlay
2.      Anodized Surface or wire drawing treatment looks perfect
3.      Crown adhesive spacer
4.      Clear LCD window
5.      With mount Screws
6.      180-320g touch force
7.      PET 0.125 or 0.1mm circuit
8.      3M series back adhesive or as per request
9.      Molex connector or other brand available
4. 1.    Product Characters
1) Custom made OEM/ODM
2) Rasing available
3) Membrane switch faceplate
4) Withstand millions of cycles
5) perfect exterior
6) metal dome or silicone keypad is also available

5. 1.    Our Advantage:
1)   Group Financial support
2)   Strong R&D capability
3)   Low cost and competitive price
4)   Quick delivery
5)   100% computer test and inspection before shipment
6)   One stop purchase available for customer
7)   Whole solution design available
8)   All Products provide one year quality warranty
6. 1.    Applications:
*Medical Equipment
* Telecommunications apparatus
* Smart phone systems
* Household appliances
* Security systems
* Various industry control keypad panel
7. 1.    Technical Data:

wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-40ºC~70ºC
Rated Voltage:	<50V, DC	Operation Humidity:	at40ºC,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

SZ Cmute Science & Technolodgy development Co., Ltd ( Group member of Ju xin ) is professional company which focus in manufacturing High-precision, High density and High reliable FPC & Membrane circuit and related PCB products, the company is located in DingFeng Science & Technolody park, No. 3 Industrial zone, Luo Tian of Songgang Twon, Baoan District, Shenzhen, Which has convenient transportation.

The company's products are widely used in communication, Audio & Video Products, Digital products, Electronics, Car electronics, Smart control equipments, Micro-Motor, Therapy Products, Automatic office equipment and many fields.

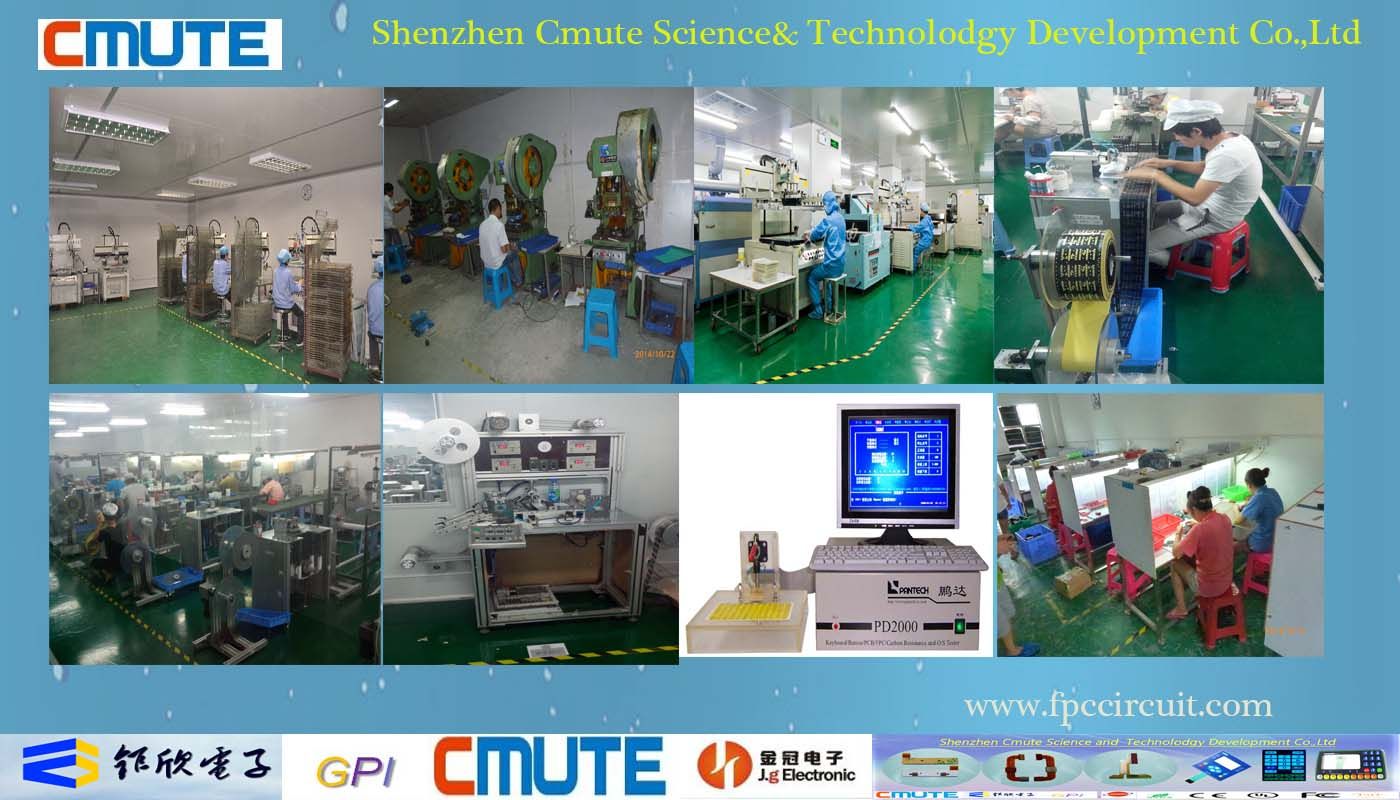

Cmute has the modern standard and high clearance facility with over 6000 square meters, which equipped well with advanced automatic production equipments and high precision test instruments.

We are an ISO9001: 2008 certified company, we provide our customers with our high precision & top quality products, also our quick response and high efficiency services has won many praise from worldwide clients.

Our group also have polydome, metal dome and membrane switch and PCB assembly factories in Dongguan & Shenzhen, so we can provide our customers with one stop shopping with competitive price.

At present, We have successful cooperation with Philips, Coolpad, Gionee, Malata and many famous brands.

We'll continuously improve our quality and services, Cmute, your best partner!
