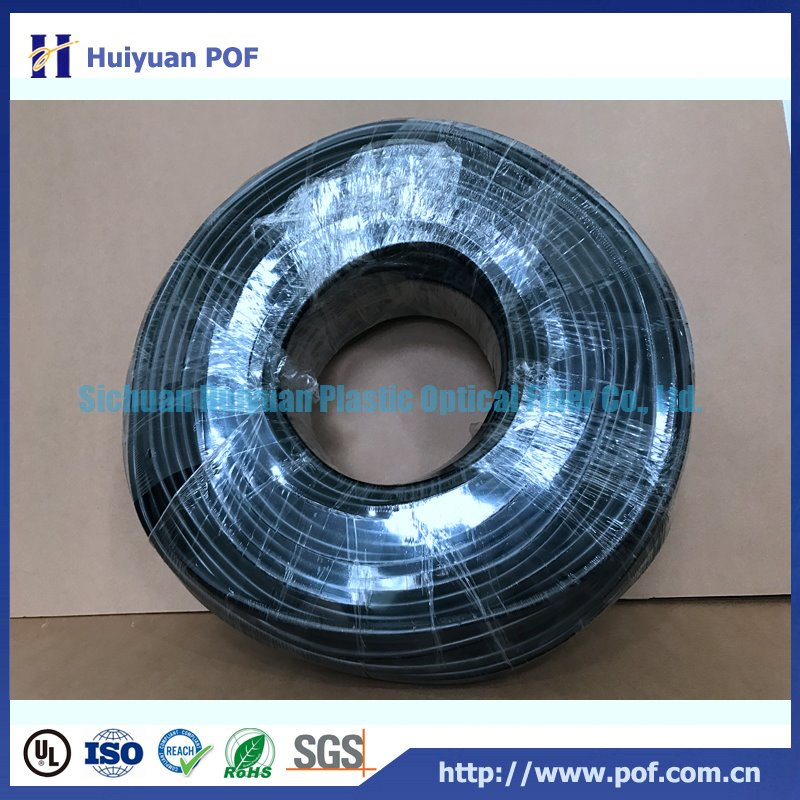

Lcv Series Multi-Core Side Glow Optical Fiber Cable in Lighting

Name: Lcv Series Multi-Core Side Glow Optical Fiber Cable in Lighting
Brand: all-electronics-online.com
SKU: 692504165
Availability: InStock
Rating: 4.8 (23 reviews)

Price:	US $ 49-799/Roll
Trade Terms:	FOB
Min Order:	5/Roll
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCV series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Illumination
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	PE
Brand:	Hypof

Product Description

Features:
1. The optical fiber cable has better anti-crunch, anti-griding, and anti-aging performance
2. Unique loose jacket, easy to peel off when installed
3. Brighter than signal-core cable
4. We have different kinds of this ptical fiber cable(different number of cores, different diameters)
5. Pure-color, soft light
6. No conduction of heat and electricity
7. No trasmission of ultraviolet and infrared

Applications:
This optical fiber cable is used for underwater lighting system, ceiling, oil stock house illumination and museum illumination system especially.,or any other place you want. OEM is acceptable.

Types:

Model	Inner dia.(mm)	Outer dia.(mm)	Attenuation(at 650nm)	Reel length(m)
LCV-750-4	4	0.75/3.5±1	<=0.3dB/m	450
LCV-750-7	7	0.75/4.0±1		450
LCV-750-14	14	0.75/5.0±1		300
LCV-750-25	25	0.75/6.0±1		100
LCV-750-42	42	0.75/8±1		100
LCV-750-75	75	0.75/12±2		100
LCV-750-126	126	0.75/14±2		100
LCV2-750-4	4	0.75/3.5±1	<=0.2dB/m	450
LCV2-750-7	7	0.75/4.0±1		450
LCV2-750-14	14	0.75/5.0±1		300
LCV2-750-25	25	0.75/6.0±1		100
LCV2-750-42	42	0.75/8±1		100
LCV2-750-75	75	0.75/12±2		100
LCV2-750-126	126	0.75/14±2		100

Sichuan Huiyuan Plastic Optical Fiber Co., Ltd is a high-tech company which specializes in researching, manufacturing and marketing of low-loss PMMA plastic optical fiber, optical cable as well as its applications.

Launched in 2000, the company had realized the mass production of Low Loss PMMA POF through independent R &D of optical fiber raw materials, manufacturing equipment and production process in 2003, which was recognized as the first success in China. The company's products have broken the monopoly of foreign companies and filled the gaps in the domestic industry. Based on this success, the company had undertaken and accomplished the technological breakthrough task of the National Science and Technology Department, the Industrialization Upgrading Project of the State Development and Reform Commission, and the independent manufacturing of fluorine resin clad material, with the optical attenuation < 0.2dB / m, which has achieved an advanced level among the similar products in the world>.

It has developed the technology of lighting products, and has cultivated a large number of lighting manufacturers and lighting dealers; PMMA POF is widely used in decorative lighting in China.

We are expanding our market to oversea market! Sincerely welcome any contact from dealer in communication and lighting area around the world!
