| Prod Model: |
CS12-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Lead Acid AGM Battery 12V24ah |
| Size: |
165*126*172mm |
| Rated Capacity: |
24ah |
| Weight Apporox: |
8.5kg |
| Maintenance Free: |
Yes |
| Color: |
Black |
| OEM: |
Available |
| Export Market: |
Global |
| Certificate: |
ISO, UL, CE |
| Brand Name: |
Cspower |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Type: |
Lead Acid AGM Battery |
| Shape: |
Lead Acid AGM Battery 12V 24ah |
Product Description

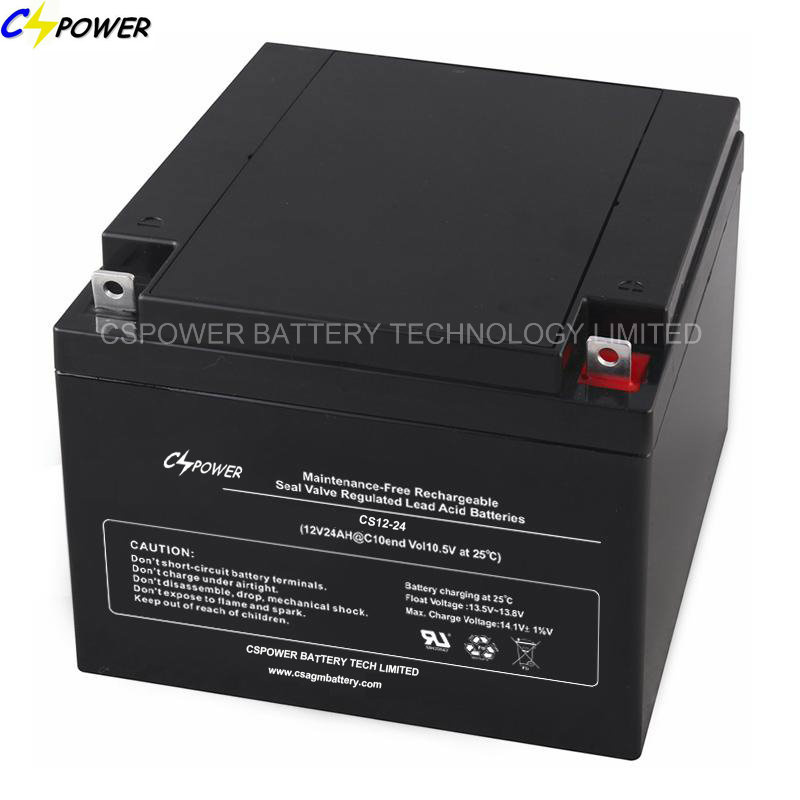

Lead Acid AGM battery 12v24ah with Small Size
Basic Info.
Model No.: CS12-24
Type: Gel Battery
Chargeable: Chargeable
Discharge Rate: High Discharge Rate
Shape: Square Battery
Nominal Voltage: 12V
Export Markets: Global
Additional Info.
Trademark: CSPOWER
Packing: Carton
Standard: CE, UL, TLC, ISO9001, ISO14001, OHSAS18001
Origin: Guangzhou City, Guangdong Province, China
HS Code: 8507200000
Product Description
Lead Acid AGM battery 12v24ah with Small Size
Item No: CS12-24ah
Nominal Voltage: 12V
Nominal Capacity: 24 AH
Net Size: 165*126*172 (L*W*H)mm Total H: 179mm
Weight: 8.5KGS
Warranty: 3 years
Design life: 8 years
Maintenance free: YES
Standard: GB/T 22473-2008 Gel Batteryused for energy storage.
Lead Acid AGM battery 12v24ah with Small Size
Application:
Wind power station
Photovoltaic power station
Communiction and telecommunication stations
Traffice field
Garden lamp power
Solar energy building
Other fields
Comprehensive performance:
1. Patents structure: Have "easy connection storage battery" patent structure, can buried underground to installation, to avoid pole corroded.
2. Excellent recovery performance: Use a special patented alloy and lead paste formula, have a strong capacity of recovery performance after deep discharge.
3. Strong charge acceptance: Used import low resistance materials and advanced technology, current become smaller at end of the charge and has a strong charge accept ability.
4. Wide temperature range: -30degrees Celsius- 45 degrees Celsius
5. Long life: Using gel electrolyte, no acid layer and has long life.
6. Environment-friendly: Not include Cadmium metal which is pollution to environment. With no leaking and ensured the battery's environmental protection and safety.
OUR BATTERY MATERIAL ADVANTAGES:
1) Container/Cover: Made of UL94HB and UL 94-0ABS Plastic.
2) 99.99% pure new lead never use recycle lead.
3) Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
4) High quality AGM separator
5) Positive plates: PbCa grids minimize corrosion and prolong life.
6) Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly.
7) Vent Valve: Allows the release of the excess gas automatically for safety.
| Component | Positive Plates | Negative Plates | Separator | Lead | Cover | Terminal | Safety Valve |
| Raw Material | Lead Dioxide | Lead | Fiberglass | Pure 99.99% | ABS | Copper | Rubber |
http://www.csagmbattery.com
Deep Cycle AGM Battery
Lead Acid AGM Battery
Lead Acid Battery
Sealed Lead Acid Battery
Maintenance Free battery
CSPOWER BATTERY TECH Co., Ltd is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.
Incorporated in 2003, CSPOWER has steadily expanded to approximately 1000 employees which include an experienced management team supported by a team of highly committed technical and manufacturing workers.
Located in a world-class, modern industrial park of 50, 000 square meters in Guangdong, China, CSPOWER's top of line facilities produce an annual capacity of approximately 2, 000, 000kVAh.
CSPOWER batteries are classified into two categories: Valve-Regulated Lead Acid Battery and GEL Battery. The VRLA battery includes UPS inverter AGM battery, Solar Deep Cycle battery, Telecom Front terminal battery, Car battery; The GEL Battery includes Solar Gel electrolyte battery, High temperature long life Gel battery, OPzV Tubular Gel battery, longer life span 15-25years mainly for solar and wind power system.
With the continuous innovation and pursuit of perfection, CSPOWER has own professional Quality Management System since established. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognitions, like UK's IEC, Germany VDS Norm certificates, CE authentication of the European Union, UL recognition of the USA, and TLC certificates in China.
In domestic market, our main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. And for overseas market, we have exported to over hundreds of countries such as: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Iran, Korea, Thailand, South Africa, Nigeria, etc.
CSPOWER is competent at ODM and OEM orders according to customers realtime request.
Please come to us for your quality battery and solar partner in China today.
