Lead Acid Battery 2V 800ah Industrial Battery

Name: Lead Acid Battery 2V 800ah Industrial Battery
Brand: all-electronics-online.com
SKU: 701245935
Availability: InStock
Rating: 4.8 (93 reviews)

Price:	US $ 150-190/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	24/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SRD800-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	410175330mm
Weight:	53.0kg
Color:	Black / Dark Gray
Cell:	1
Sealing:	Glue Sealing
Plate:	Flat Plate
Separator:	AGM
Battery Case:	ABS
Terminal Type:	Copper
Safety:	Explosion-Proof
Type:	Lead-Acid Batteries
Usage:	Solar
Nominal Voltage:	2V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Product Description

2V Battery
Lead Acid Battery 2V 800ah Industrial Battery

Specifications
1.2V lead acid battery
2. Low internal resisitance
3. Low self discharge

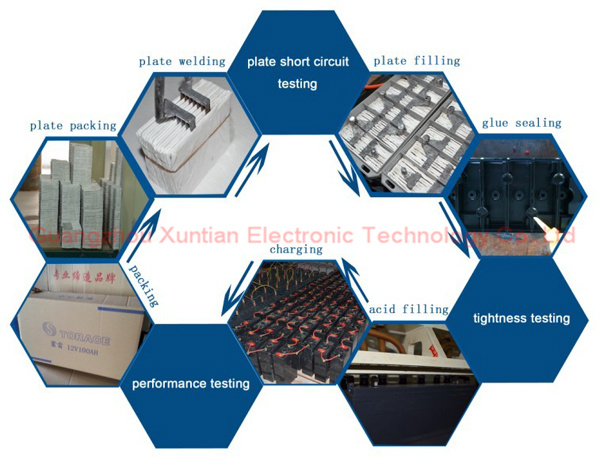

Production

Characters
1. Safety and Sealed
2. Maintenance-Free operation
3. Batteries do not need the equalizing charge
4. No Free Acid
5. Long life Design
6. High Reliability and stable quality
7. Self-discharge
8. Operating temperature

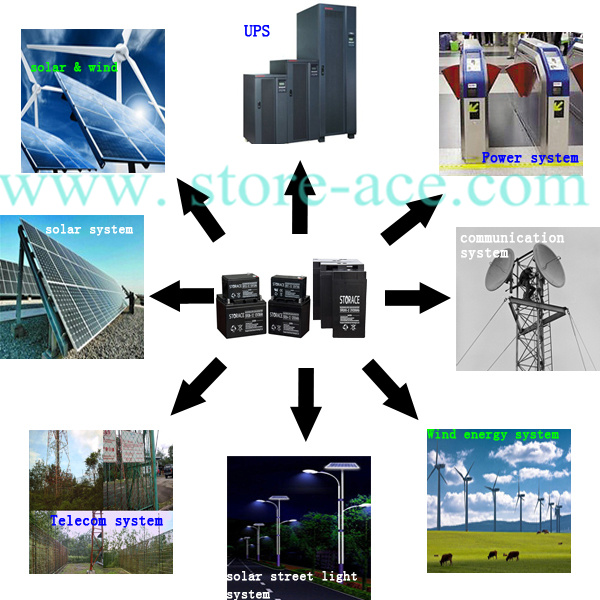

Application
Wind power system, Solar power system, Emergency lighting alarm systems, UPS(Uninterruptible power sypply) Telecommunications, Telephone exchanges control equipment, EPS instrumentation, Bank ATM System, Medical equipment, Fire and security system and so on.

Data sheet

Capacity 77° F(25º C)	10 hours rate(80A 1.80V)	800Ah
	5 hours rate(142A 1.75V)	710Ah
	3 hours rate(205A 1.70V)	615Ah
	1 hour rate(495A 1.60V)	495Ah
Internal Resistance	Full charged battery 77° F(25º C): 0.6mΩ

Capacity affected by Temperature (10 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 2500A(5S)
Charge (Constant Voltage)	Float: 2.25 to 2.30V/77° F/(25º C)
	Cycle: 2.35 to 2.45V/77° F/(25º C)
	Max Current: 160A

Guangzhou Xuntian Electronic Technology Co., Ltd.is located in beautiful flower city-----Guangzhou, Guangdong province, China. Our company is a high new technical company, and we focus on research and development of lead acid battery, deep cycle battery and Gel storage battery. Beside, we sale full range of different capacity 12 voltage, 6 voltage or 2 voltage battery.

Storage Battery is used mainly in UPS electric power; Telecommunication; Solar or wind power system; Aerospace and navigation; Bank and medical system; Rail transit; Military area and so on.

After years of development, we builded up a professional product reseach and develop term, and a mature engineering technology reseach centre. With such facility and domestic famous senior engineers of battery production as consultant, our technology is leading in battery production field.

Our reseached and developed storage battery earned a high reputation not only in China but also in all over the world. Our batteries sale to European market; American market; Southeast Asia market; Africa market and Middle East market, what is more, they all received high compliment from customer.
