| Prod Model: |
CS6-4 lead acid battery |
| Voltage: |
12V Rechargeable Battery |
| Size: |
70*47*101*107 |
| Capacity: |
4ah Lead Acid Battery |
| Weight: |
0.68kgs UPS Battery |
| Warranty: |
1 Year Solar Battery |
| Delivery Time: |
7 Days SMF Battery |
| Brand: |
Cspower/OEM Storage Battery |
| Export Markets: |
Global Power Battery |
| Terminal Type: |
T2 VRLA Battery |
| Color: |
Black or Black Grey |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
6V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

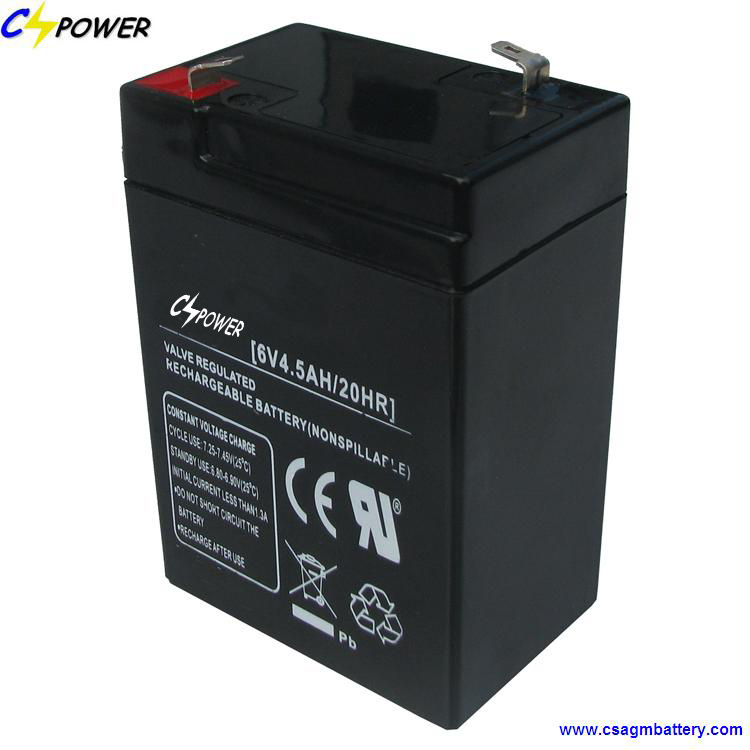

CSPOWER 6V4ah Accumulator battery
--- For UPS/Electronic toy/Alarm system Main Featurers1. 1year warranty at 25°C average
2. Able to operate at 60°C
3. Cycle usage: 50% DOD, 700cycles, 30% DOD 12cycles.
4. Design Floating Life 25°C: 8 years
5. Self-discharge is 2% ~ 3% per month.
Product Description| CS6-4 CUT |
| Nominal Voltage | 6V (3 cells per unit) |
| Design Floating Life @ 25ºC | 5 Years |
| Nominal Capacity @ 25ºC | 20 hour [email protected],10.8V | 4Ah |
| Capacity @ 25ºC | 10 hour rate (0.38A, 10.8V) | 3.80Ah |
| 5 hour rate (0.71A, 10.5V) | 3.55Ah |
| 1 hour rate (2.64A,9.6V) | 2.64Ah |
| Internal Resistance | Full Charged Battery@ 25ºC | ≤20.0mΩ |
| Ambient Temperature | Discharge | -15ºC~45ºC |
| Charge | -15ºC~45ºC |
| Storage | -15ºC~45ºC |
| Max.Discharge Current | @ 25ºC 24A(5s) |
| Capacity affected by Temperature (10 hour ) | 40ºC | 105% |
| 25ºC | 100% |
| 0ºC | 85% |
| -15ºC | 65% |
| Self-Discharge@25ºCper Month | 3% |
| Charge (Constant Voltage) @ 25ºC | Standby Use | Initial Charging Current Less than 1.2A Voltage 6.8-6.9V |
| Cycle Use | Initial Charging Current Less than 1.2A Voltage 7.2-7.45V |
| Dimension (mm*mm*mm) | Length 70±1 * Width 47±1 * Height 101±1 (Total Height 107±1) |
| Weight (kg) | 0.68±3% |
The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.
Features and Advantages of VRLA agm battery
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to
99% and freedom from electrolyte maintenance or water adding.
1. Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
2. UL-recognized component.
3. Can be mounted in any orientation.
4. Computer designed lead, calcium tin alloy grid for high power density.
5. Long service life, float or cyclic applications.
6. Maintenance-free operation.

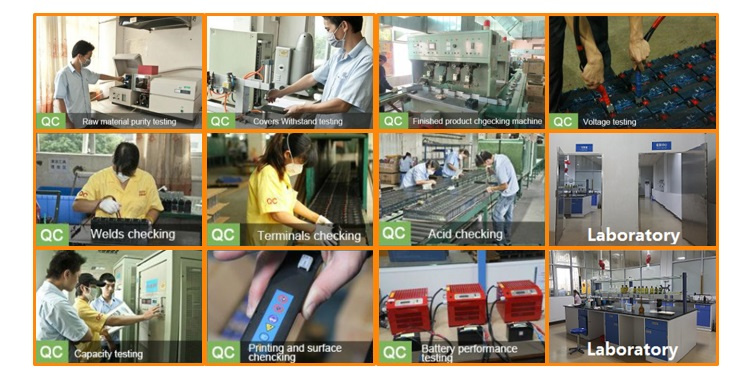

QC process
