Lead Acid Battery with CE, UL, RoHS Certificate (12V40AH)
| Price: |
US $ 41.75-44.65/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TL12400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Designed Life: |
8 Years |
| Voltage: |
12V |
| Capacity: |
40ah |
| Dimension: |
197*165*170/170mm |
| Weight: |
13kg |
| Color:Grey Or Black: |
Grey, Black or Other |
| Standby Use: |
13.6-13.8V |
| Cycle Use: |
14.5-14.9V |
| Internal Resistance: |
10mohms |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting Battery |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

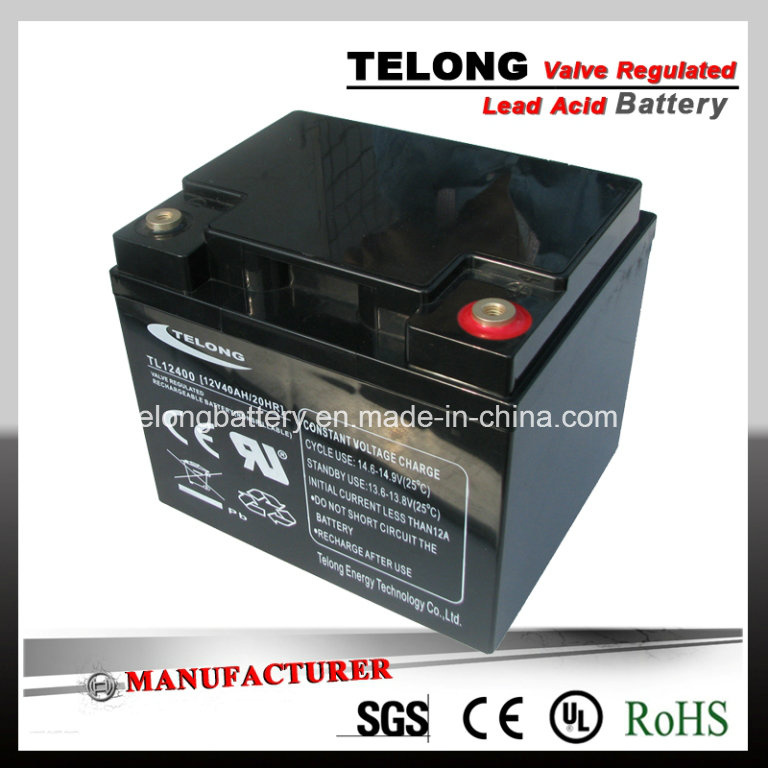

12V40AH Solar battery
1. Product parameters
Model: TL12400
Certificate: CE, UL, RoHS, MSDS, UN38.3
Voltage: 12V
Capacity: 40Ah
Dimension: 197× 165× 170/170mm(Length× Width× High/Total High)
Net weight: 13KG
Quantity per carton: 1PCS
Gross weight per carton: 13.5kg
2. Applications
- Remote Switching Control equipments
- Communication systems Portable Lights
- Alarm systems Power tools
- Medical equipments Electric toys
- Fire and lighting for Emergency systems
- Uninterruptible power supplies (UPS) and stand-by power for computers
3. Features
- When it is safe surroundings, maintenance free, and add water is not need.
- Equalization charges are not required and cycle or standby (or float) use.
- Long life for 3 year.
- low resistance and energy output is more remarkable.
- Fully enclosed (not liquid leakage, no acid gas spill).
- Low self-discharge rate.4. Quality Assurance- Equipment control
We adopt the entire computer automatic control (Density testing, adding acid, charging, etc.)
- Raw material control
Any raw material will be forbidden used in the production if they didn't pass the testing by laboratory strictly.

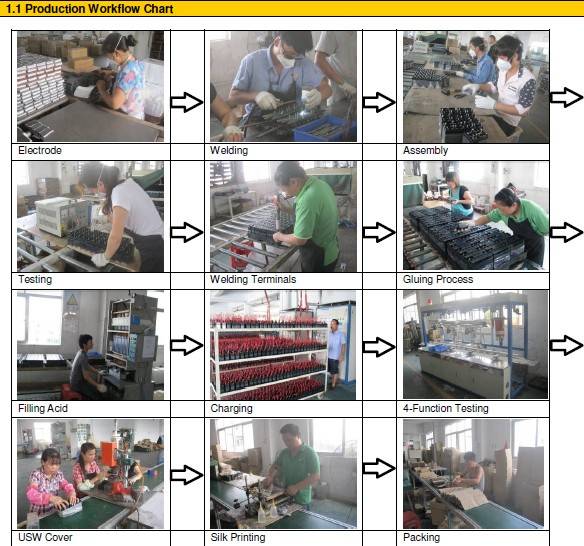

- Production process control
The semi-finished products must pass several inspections in the production line.
- Finished products control
Before packaging, the finished battery must be tested 100% by our function testing machine and pass the inner resistance testing, density testing, 3-5ºC discharge performance testing etc.
- Shipment control
The goods can't be sold unless their appearance and performance are tested 100% by the professional inspector.
5. Advantage
Choose Telong, and you will choose a good partner! You will benefit from:
- Lowest purchasing cost with no quality worry
- Premium quality with real no problem batteries
- Standard but perfect individual printing and packing
- Maximize your profit by ordering directly with us, the terminal manufacturer
- Professional OEM is available for your esteemed company
6. Welcome to visit our website
http://www.sztlg.com/http://www.telongbattery.com/http://tlgbattery.en.made-in-china.com/| Batterymodel | TL12400 |
| Nominal voltage | 12V |
| Number of cell | 6 |
| Design Life | 8 years |
| Capacity 77ºF (25ºC) | 20 hour rate (2.1A,10.5V) | 10 hour rate (4.0A,10.5V) | 5 hour rate
(6.8A,10.5V) | 1 hour rate (25.0A,9.6V) |
| 42.0Ah | 40.0Ah | 34.0Ah | 25.0Ah |
| Dimensions | Length | Width | Height | Total Height |
| 195±1mm | 165±1mm | 170±1mm | 170±1mm |
| Approx. weight | 12.8Kg |
| Internal resistance | Full charged at 77ºF(25ºC):10mOhms |
| Self discharge 68ºF(20ºC) | Capacity after 3 month storage | Capacity after 6 month storage | Capacity after 12 month storage |
| 90% | 80% | 60% |
| Capacity affected by temperature(20 hour rate) | 104ºF(40ºC) | 77ºF(25ºC) | 32ºF(10ºC) | 5ºF(-15ºC) |
| 102% | 100% | 85% | 65% |
Operating temperature
range | Discharge | Charge | Storage |
| -20~60ºC | -10~60ºC | -20~60ºC |
| Max. discharge current 77ºF(25ºC) | 400A(5s) |
| Short circuit current | 2000A |
| Charge(Constant Voltage) | Float: 4.54~4.60V/77ºF(25ºC) |
Cycle:4.85~4.90V/77ºF(25ºC)
Max Current:10A |
