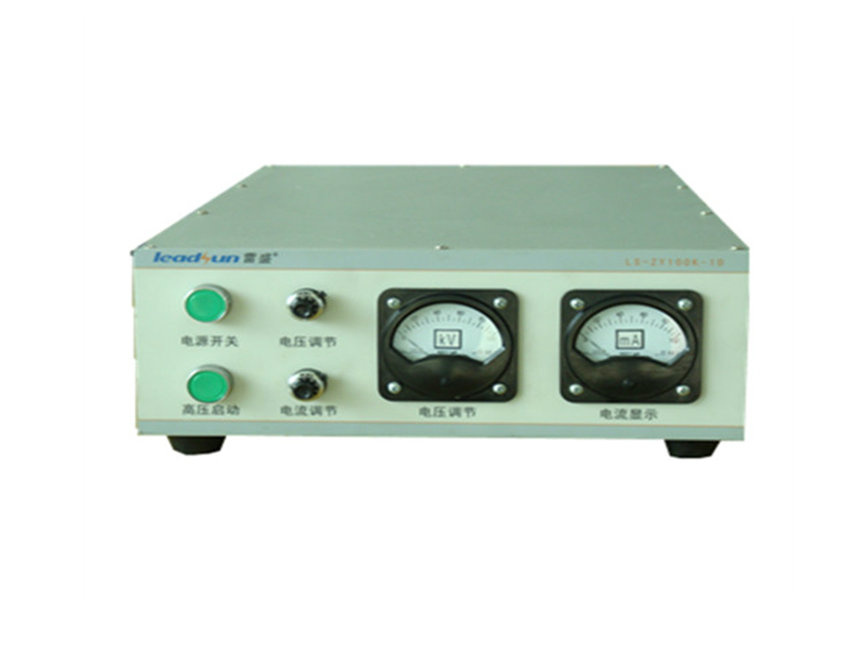

Leadsun High Voltage Power Supply LS-150kv/100mA High Frequency

Prod Model:	LS150KV/100mA
L*H*B:	550*440*600mm
Ambient Temperature:	-20oc~50oc
Cooling:	Air Cooling
Work Frequency:	40kHz
Output Type:	Single
Warranty:	1 Year
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Output Power:	15KW
Input Voltage:	220V or 380V AC
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

High Frequency High Voltage Power Supply 150KV/100mA
Specifications

Item	Parameters	Remarks
Input voltage	220V AC	Wave less than 10%
Rated power	15KW	Full load, output Umax, Imax
Rated output voltage	150KV
Rated output current	100mA
Comparative voltage control accuracy	1%	Uo=80%Umax
Absolute voltage control accuracy	3%	Uo=80%Umax
Voltage/temperature coefficient	300PPM
Voltage program accuracy	Better than 1.5%
Voltage output range	50~150KV adjustable
Output limiting current	100mA
Control response time	Better than 3mS
Ambient temperature	-20 ~ 50ºC
Ambient humidity	10% ~ 90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase-shifting PWM
Current control mode	Constant current of average value  Peak value testing	Within 100nS peak value loading, cut off and restart automatically
Working frequency	40kHZ
Converting efficiency	Better than 93%	Uout=50-100kV,Iout=50mA
Voltage regulation rate	1.5%
Ripple Coefficient	Less than 5%
Current and voltage program mode	By potentiometer
Dimension	550*440*600mm  L*B*H

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.
We can also customize the products as your need.
