| Prod Model: |
LS-21-D0 |
| Usage: |
Light |
| Output Type: |
Dual |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
Electronic Step-down Transformer |
| Power Supply Voltage: |
0-10V |
Product Description

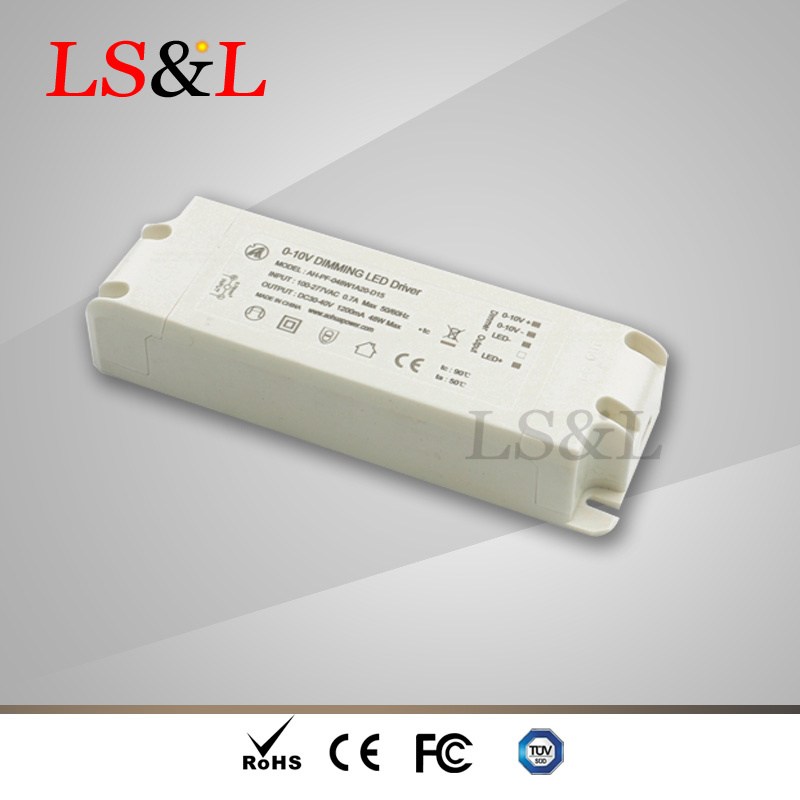

LED Adapter Power Supply for Lighting Dimming Function
0/1-10V LED dimming drivers,also called LED adaptor, which adopt the constant current solution for suppling the lamps with power from 100-277V AC voltage, it matches with the 0/1-10V dimming control system and get the signal from the controller to dim the lamps which is connected, to make the lamps as what we want to dim. To choose a good led driver, it will reduce you much more troubles and kindly pay much attention to Luxsky Lighting, who offer you excellent lighting solution and high quality products.
Features:Fuction for 0/1-10V dimming
High Power Factor
Voltage: 100-277V AC
High efficency: >87% ( 230VAC testing)
Protection for short circuit, over voltage,over temperature
Warranty for 3 years

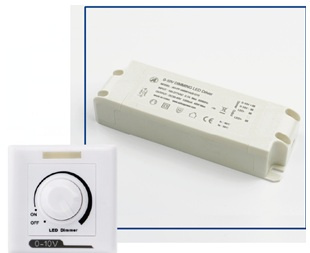

0/1-10V driver needs to match with 0-10V controller
0-10V LED Dimming Driver( Series I)| Part No. | Power | Input(V) | Output(V) | Current | size(mm) | Efficency | Flickering | Photos |
| LS-21-D0-48 | 48W | 85-277V | DC27-42V | 1200mA | 155*52*30 | 86%-87% | D-No |
|
| LS-21-D0-30 | 30W | 85-277V | DC27-42V | 750mA | 145*42*29 | 84%-85% | D-No |
| LS-21-D0-12 | 12W | 85-277V | DC27-42V | 300mA | 96*37*23 | 83%-84% | S-Yes |
| LS-21-D0-24 | 24W | 85-277V | DC27-42V | 600mA | 119*40*28 | 87%-88% | S-Yes |
| LS-21-D0-40 | 40W | 85-277V | DC27-42V | 1000MA | 145*44*29 | 89%-90% | S-Yes |
| LS-21-D0-56 | 56W | 85-277V | DC27-42V | 1400mA | 155*52*30 | 89%-90% | S-Yes |
Parameters for 0-10V LED Dimming Drivers:Surge Current(Max.): start in cooling,330A/230V
Overvoltage Protection: over the rated output Voltage:110%-130%
Overcurrent Protection: over constant current 95%-108%, recover when malfunction removes
Over Temperature Protection: enter into protection situation when themperature overs 90ºC +/-10ºC(RTH2)
Start Time:230VAC,500ms
Withstand Voltage:3.75KVAC
Working Temperature:-20ºC~+50ºC
Safe Standards:UL8750,EN61347-1,EN61347-2-13 independent
Dimming Models: Sink & Source
EMC: Comploance to EN55015,EN61000-3-2 CLass C, EN61000-3-3,EN61000-4-2,3,4,5,6,8,11:EN61547,EN55024,
industry level,criteria
Application: 0/1-10V LED Dimming Drivers can use for lamps indoor: LED Down lights, LED Track lights,
LED Panel Lights, LED Linear Lights and so on.

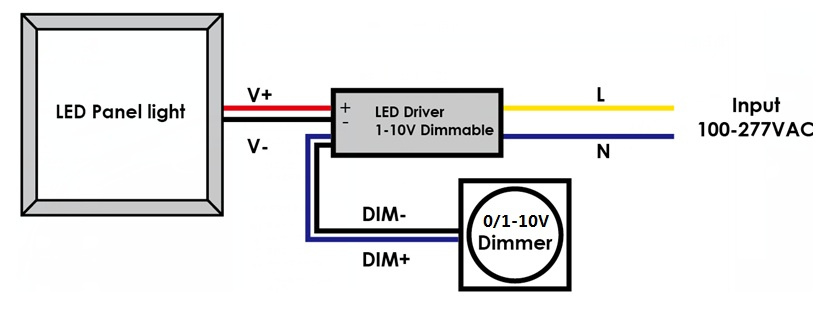

0/1-10V dimming Driver Connect Drawing:0/1-10V Dimming: Accepting the signal of 0/1-10V dimming, it begins to control the driver's output current,
so take the fucntion to control and dim the LED lamps, which can support the sink and Source two kinds
of different dimming signal outputs. It fits for the all kinds of different lamps lighting control systems
or dimmer application.
1-10V dimming range: 5%-100%
If you're going to wholesale the 0-10v/1-10v dimming led driver with ce rohs 3 years warranty made in China, welcome to contact our manufacturers and suppliers. We have introduced advanced equipment and technology into our factory to better serve you.
