| Prod Model: |
XJY-PCB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer No: |
1 to 20 |
| Legend Color: |
Black or Customized |
| Surface Treatment: |
Varible According to Your Product |
| Type: |
Aluminum PCB |
| Min. Line Width: |
0.075mm |
| Min.Line Spacing: |
0.075mm |
| Min. Hole Size: |
0.15mm |
| Board Thickness: |
0.2mm-6.0mm |
| Copper Thickness: |
1oz or Customized |
| Layers: |
Multilayer |
| Certification: |
SGS |
| Base Material: |
FR-4 |
| Mode Of Production: |
SMT |
| Metal Coating: |
Copper |
| Customized: |
Customized |
| Condition: |
New |
Product Description
Quick Details
Place of Origin: Chongqing, China (Mainland)
Brand Name: XJYPCB
Model Number: XJY-LFL10738
Base Material: FPC, PI,FR-4,94vo,High-frequency,Cu-base, Al-base
Copper Thickness: 1oz or customized
Board Thickness: 0.2mm-6.0mm
Min. Hole Size: 0.15mm
Min. Line Width: 0.075mm
Min. Line Spacing: 0.075mm
Surface Finishing: HASL,ENIG,Immersion Tin,OSP,Flash Gold,Gold finger
Layer Counts: 1-24
Material: 1 pcs
solder mask Color: color: white or customized
Certificate: UL, RoHS, SGS, ISO9001,ISO14001
Packing: Strong and safety
legend color: black or customized
surface treatment: variable according to your product
Sample: available .
Urgent service: 24 hours
Type: aluminum pcb
AL MC PCB
Technology capability
Item | Capability | Item | Capability |
| Layers | 1-28 | Thicker Copper | 1-6oz |
| Products Type |
HI(High-Frequency)&(Radio Frequency)
board, Imedance controlled board,HDI
board, BGA& Fine pitch board |
solder mask | Nanya&Taiyo, LPI&Matt red, green,yellow,white,blue,black. |
| Base Material | FR4(Shengyi China, ITEQ, KB A+,HZ),HI-TG,Fr06,Rogers,Taconic,Argon,Naclo,Isola and so on | Finished Surface | Conventional HASL, Lead-Free HASL,Flash Gold,ENIG(Immersion Gold),OSP(Entek),Immersion Tin, Immersion Sliver, Hard Gold |
| Selective Surface Treatment | EING(Immersion Gold)+OSP, ENIG(Immersion Gold)+Gold Finger, Flash Gold Finger, Immersion Sliver+Gold Finger, Immersion Tin+Gold Finger |
| Technical Specification | Minimum line width/gap | 3.5/4mil(laser dirll) |
| Minimum line width/gap | 0.15mm(mechanical dirll) 4mil(laser dirll) |
| Minimum Annular Ring | 4mil |
| Max Copper Thickness | 6oz |
| Max Production Size | 600mm*800mm |
| Board Thickness | D/S:0.2-7.0mm, Multilayer:0.4-7.0mm |
| Min Solder Mask Bridge | ≥0.08mm |
| Aspect Ratio | 15:1 |
| Plugging Vias Capability | 0.2-0.8mm |
| Tolerance | Minimum line width/gap | ±0.08mm(min±0.05) |
| Non-Plated Hole Tolerance | 0.15mm(mechanical dirll) 4mil(laser dirll) |
| Outline Tolerance | ±0.15mil(min±0.10mm) |
| Functional Test |
|
| Insulating Resistance | 50ohms(normality) |
| Peel Off Strength | 1.4N/mm |
| Thermal Stress Test | 265ºC,20seconds |
| Solder Mask Hardness | 6H |
| E-test Voltage | 500V+15/-0V 30s |
| Warp and Twist | 0.7%(Semiconductor test board 0.3%) |

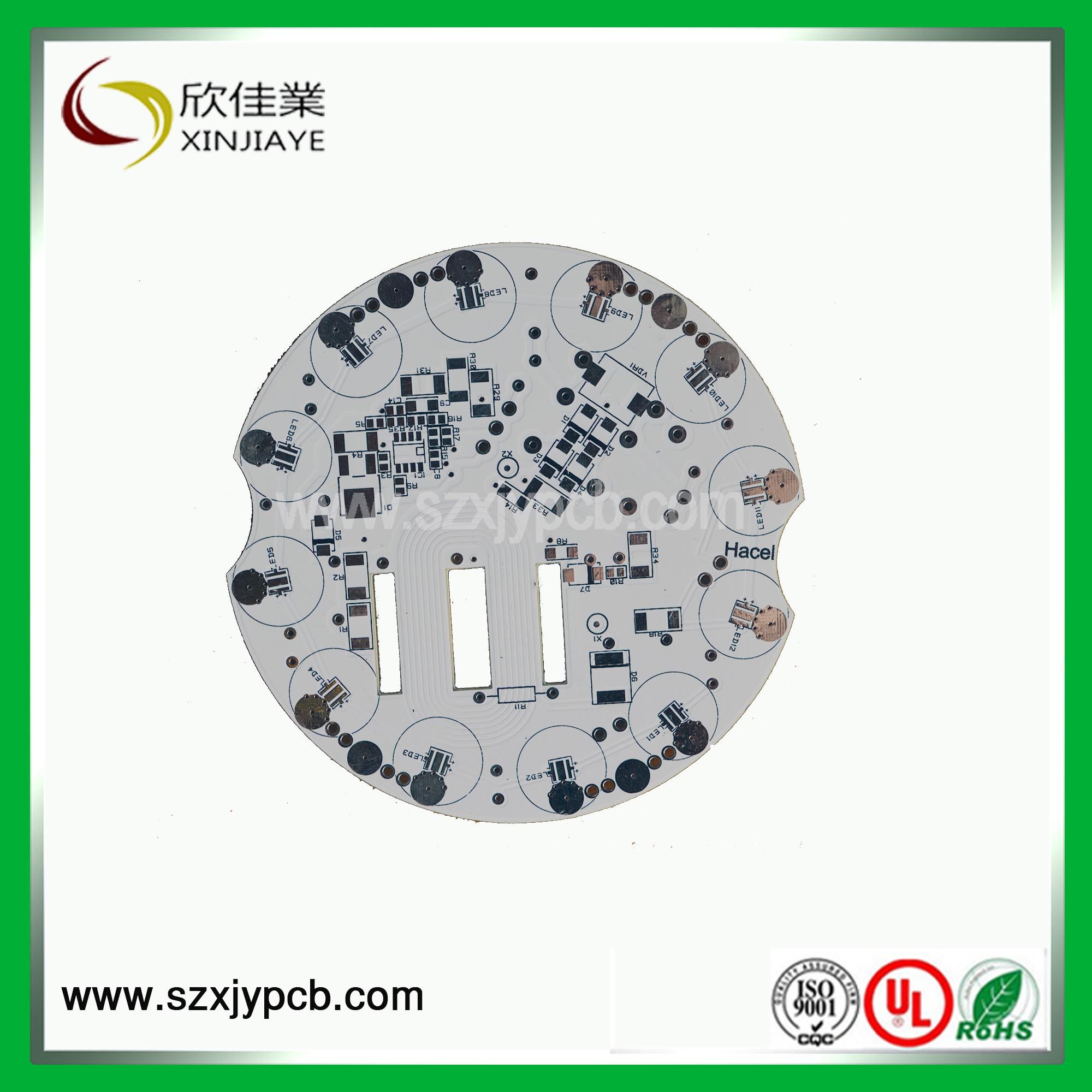

led aluminum pcb,aluminum led pcb,metal core alu PCB, AL MC PCB
