| Prod Model: |
ETC-902 |
| Emperature Range: |
-50~300ºC |
| Cable Length: |
~105cm; Can Be Customize |
| Accuracy: |
+-1ºC |
| Material: |
Durable Plastic Materials |
| Theory: |
Temperature Sensor |
| Powered: |
2 X Lr44 Button Cell Batteries |
| Usage: |
Household |
Product Description
ECS-10 LED Digital Display Pid Temperature Controller;ECS-100 LED Digital Microcomputer Temperature Controller;Powers pid process temperature controller version for heating and cooling system online
Product Description

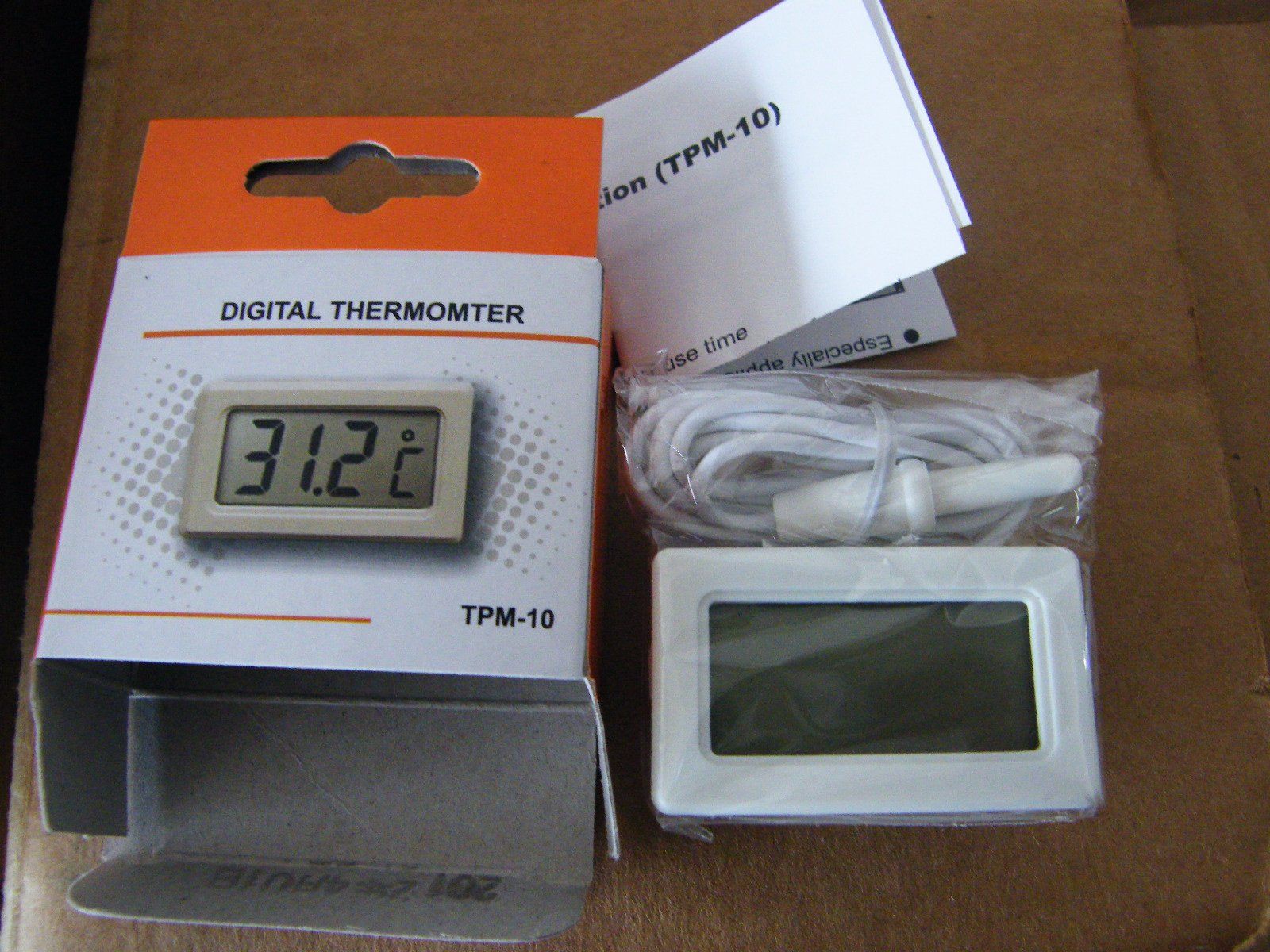

Ultra small and lightweight Mini LCD Digital Refrigerator Thermometer for use in refrigerators, chillers and deep freezes! It can be used in any situations where you need an accurate temperature of the environment.
Features
Great accurate temperature readings with this Mini Digital Thermometer which has a simple appearance, unobtrusive design and a easy to read LCD display.
Made of durable plastic materials, ideal for use in refrigerators, chillers and deep freezes, the thermometer has a range of -50°C to + 70°C.
Size of the Refrigerator Freezer Digital Thermometer makes it ideal for any situations where you need an accurate reading and the easy-to-read screen displays the temperature of the environment in Celsius.
Digital Refrigerator Thermometer features ultra small and lightweight unit.
Powered by two button battery, LCD Digital Thermometer can be used for a longer time.
Specifications
Usage temperature: -10°C ~ +50°C
Usage humidity: 5% ~ 80%
Accuracy:±1°C
Distinguishing temperature: 0.1°C
Unit dimensions: ~4.8 x 2.8 x 1.5cm
Cable length: ~105cm
Power: 2 x LR44 button cell batteries.
Weight: 34g
1) Provide Express like DHL, UPS, FedEx, EMS for a relatively small order.
2) The ocean shipping is also available for big orders.
3) You also can use your own forwarder account.
| Model | ETC-902 | ETC-974 | ETC-512B | ECS-10 | ECS-100 | ESC-130 |
| Main Features | Power | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 12VAC/DC |
| Temperature range | -40~+70ºC | -50~+50ºC | -50~+105ºC | -50~+50ºC | -45.5~+110ºC | -50~+50ºC |
| Temperature control range | -40~+50ºC | -50~+50ºC | -10~+60ºC | -50~+50ºC | -45.5~+110ºC | -50~+50ºC |
| Resolution | 0.1ºC | 0.1ºC | 0.1ºC | 0.1ºC | 0.1ºC | 0.1ºC |
| Accuracy | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 |
| Application | cooling | cooling | cooling | cooling | cooling | cooling |
| Mounting size | 71*29mm | 71*29mm | 71*29mm | 71*29mm | 71*29mm | 71*29mm |
| Output | Compressor | 8A | 8A | 30A(harici) | 8A | 30A | 5A |
| Defrost | | 8A | - | - | 5A | 10A |
| Fan | - | 8A | - | - | 5A | 10A |
| Light | - | - | - | - | - | 5A |
| Alarm | Voice | Voice | - | Voice | Voice | Voice |
| Input | Sensor | 1NTC | 2NTC | 1NTC | 1NTC | 2NTC | 2NTC |
| Digital Input | - | - | - | - | - | - |
| Other | Copy card | - | Optional | - | Optional | Optional | - |
| HACCP | - | - | - | - | - | - |
| Model | MTC-6020 | MTC-2120S | STC-8080A+ | STC-8080H | STC-8090 | STC200+ |
| Main Features | Power | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ |
| Temperature range | -50~+50ºC | -40~+70ºC | -50~+99ºC | -50~+99ºC | -40~+99ºC | -40~+90ºC |
| Temperature control range | -50~+50ºC | -40~+70ºC | -40~+50ºC | -40~+50ºC | -40~+70ºC | -40~+70ºC |
| Resolution | 0.1ºC | 1ºC | 1ºC | 1ºC | 1ºC | 1ºC |
| Accuracy | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 |
| Application | cooling | cooling | cooling | cooling | cooling | cooling/heating/alarm |
| Mounting size | 72.5*43.5mm | 71*29mm | 71*29mm | 71*29mm | 71*29mm | 71*29mm |
| Output | Compressor | 3A | 8A | 10A | 10A | 10A | 10A |
| Defrost | 3A | | 10A based on the time | 10A based on the time | 10A based on the time | - |
| Fan | 3A | - | - | - | - | - |
| Light | 3A | - | - | - | - | - |
| Alarm | Voice | - | Voice(may be aborted) | Voice(may be aborted) | Voice(may be aborted) | Voice |
| Input | Sensor | 2NTC | 1NTC | 1NTC | 1NTC | 1NTC | 1NTC |
| Digital Input | - | - | - | - | - | - |
| Other | Copy card | - | - | - | - | - | - |
| HACCP | - | - | - | - | - | - |
| Model | ETC-200 | ETC-66 | ETC-60HT | ETC-60HT-B | ETC-30 | ETC-60 |
| Main Features | Power | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ |
| Temperature range | -40~+120ºC | -40~+50ºC | -40~+70ºC | -40~+70ºC | -50~+150ºC | -50~+120ºC |
| Temperature control range | -40~+120ºC | -10~+50ºC | -40~+50ºC | -40~+50ºC | -50~+120ºC | -50~+120ºC |
| Resolution | 0.1ºC | 0.1ºC | 0.1ºC | 1ºC | 0.1ºC | 0.1ºC |
| Accuracy | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 |
| Application | cooling/heating | cooling | cooling | cooling | cooling/heating | cooling/heating |
| Mounting size | 71*29mm | 71*29mm | 71*29mm | 71*29mm | 71*29mm | 71*29mm |
| Output | Compressor | 10A | 30A(harici) | 30A | 30A | 16A | 16A |
| Defrost | 10A based on the time | 30A(harici) | 30A | - | - | 10A |
| Fan | - | 30A(harici) | - | - | - | 10A |
| Light | - | - | - | - | - | - |
| Alarm | Voice | - | Voice | - | - | Voice |
| Input | Sensor | 1NTC | 2NTC | 2NTC | 2NTC | 1NTC or 1 PTC | 2NTC or PTC |
| Digital Input | - | - | - | - | - | yes |
| Other | Copy card | - | - | - | - | - | optional |
| HACCP | - | - | - | - | - | May be applied |
| Model | STC-9200 | ETC-4200 | STC-001 | CTE-102 | MTC-5060 | MTC-5080 | MTC-6000 |
| Main Features | Power | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ |
| Temperature range | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC |
| Temperature control range | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC | -50~+50ºC |
| Resolution | 0.1ºC | 0.1ºC | 0.1ºC | 0.1ºC | 0.1ºC | 0.1ºC | 0.1ºC |
| Accuracy | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 |
| Application | cooling | cooling | cooling | cooling/heating | cooling | cooling | cooling |
| Mounting size | 71*29mm | 71*87*58mm | 71*29mm | 71*29mm | 92.5*43.5mm | 92.5*43.5mm | 92.5*43.5mm |
| Output | Compressor | 8A | 8A | 8A | 8A | 3A | 3A | 3A |
| Defrost | 8A | 8A | | | 3A | 3A | 3A |
| Fan | 8A | 8A | - | - | - | 3A | 3A |
| Light | - | - | - | - | - | - | 3A |
| Alarm | Voice | Voice | Voice | Sesli | Voice | Voice | Voice |
| Input | Sensor | 2NTC | - | 1NTC | 1NTC | 2NTC | 2NTC | 2NTC |
| Digital Input | - | - | - | - | - | - | - |
| Other | Copy card | optional | - | - | optional | - | - | - |
| HACCP | - | - | - | - | - | - | - |
| Model | STC-9600 | STC-100A | ATC-800+ | STC-1000 | STC-600 | STC-620 | ETC-100+ |
| Main Features | Power | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 12VAC/DC | 9-32V | 220V + 10% 50/60HZ |
| Temperature range | -50~+50ºC | -40~+99ºC | -50~+99ºC | -50~+99ºC | -50~+50ºC | -35~+70ºC | -40~+120ºC |
| Temperature control range | -50~+50ºC | -40~+99ºC | -50~+50ºC | -50~+99ºC | -50~+50ºC | -35~+70ºC | -40~+120ºC |
| Resolution | 0.1ºC | 1ºC | 1ºC | 0.1ºC | 0.1ºC | 1ºC | 1ºC |
| Accuracy | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 |
| Application | cooling | cooling/heating | cooling/heating | Auto cooling/heating | cooling | cooling | cooling |
| Mounting size | 71*29mm | 71*29mm | 170*90mm | 71*29mm | 71*29mm | 103.5*53mm | 71*29mm |
| Output | Compressor | 10A | 10A | 10A heating/20A cooling | 10A heating/10A cooling | 30A(haricl) | - | 10A(20A optinal) |
| Defrost | - | - | - | - | 30A(haricl) | - | - |
| Fan | - | - | - | - | 30A(haricl) | - | - |
| Light | - | - | - | - | - | - | - |
| Alarm | Relay Voice | Voice(Optional) | Voice | Voice | Voice | Voice | Voice |
| Input | Sensor | 1NTC | 1NTC | 1NTC | 1NTC | 2NTC | 2NTC | 1NTC |
| Digital Input | door switch | - | - | - | - | - | - |
| Other | Copy card | - | - | - | - | - | - | - |
| HACCP | - | - | - | - | - | - | - |
| Model | ETC-2040 | ETC-3000 | ECS-R12F12 | LTC-3X | DHC-100+ | LTC-100 | ATC-210 |
| Main Features | Power | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ | 220V + 10% 50/60HZ |
| Temperature range | -45.5~+120ºC | -45.5~+110ºC | -40~+70ºC | -40~+90ºC | 0~+99ºCRH | -40~+50ºC | -40~+100ºC |
| Temperature control range | -45.5~+110ºC | -45.5~+110ºC | -40~+70ºC | -40~+90ºC | 10~+99ºCRH | -10~+50ºC | 0~+50ºC |
| Resolution | 0.1ºC | 0.1ºC | 1ºC | 1ºC | 1%RH | 0.1ºC | 0.1ºC |
| Accuracy | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 | +_1 |
| Application | cooling | cooling | cooling | - | Moisture/humidity | cooling | heating |
| Mounting size | 71*29mm | 71*29mm | 157*39mm | 112*39mm | 71*29mm | 71*29mm | - |
| Output | Compressor | 8A | 8A | 30A | 30A | 10A | 8A | - |
| Defrost | 8A | 8A | 30A | 30A | - | 8A | - |
| Fan | - | 8A | - | - | - | 8A | - |
| Light | - | - | - | - | - | - | - |
| Alarm | - | Voice | - | - | Voice | Voice | - |
| Input | Sensor | 1NTC | 2NTC | 2NTC | 1NTC | 1NTC | 2NTC | 1NTC |
| Digital Input | - | - | - | - | - | - | - |
| Other | Copy card | Optional | Optional | - | - | - | - | - |
| HACCP | - | - | - | - | - | - | - |
