LED Display Digital Pressure Transmitter

Name: LED Display Digital Pressure Transmitter
Brand: all-electronics-online.com
SKU: 789548325
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 72-78/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-87X
Display:	4 Digital
Material:	Strainless Steel
Max Pressure Range:	100MPa
Accuracy:	0.25%Fs
Power Supply:	12~36VDC
Place Of Production:	Shaanxi
Product Name:	Pressure Transmitter with LED Display/ Pressure Di

Product Description

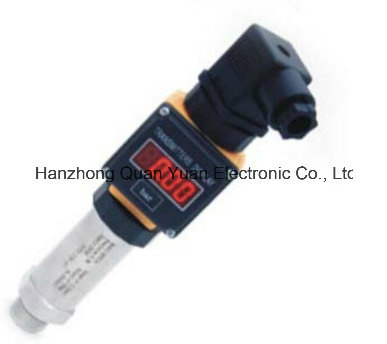

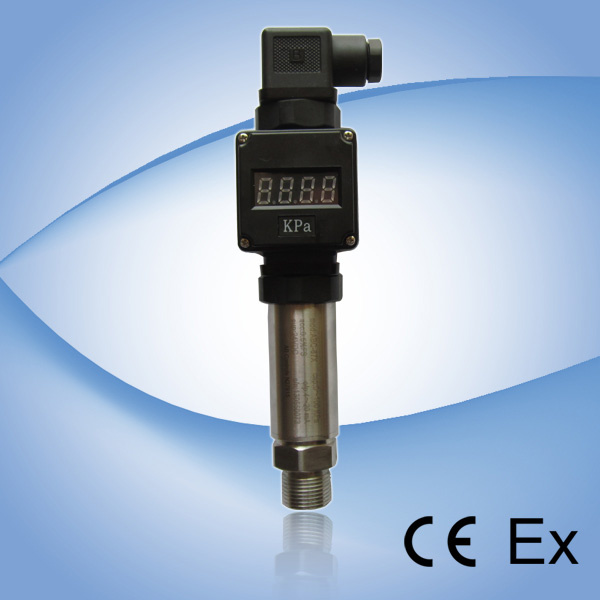

LED Display Digital Pressure Transmitter

Measuring Range: -100~0KPa, 0~5KPa.0~500KPa.0~100MPa

Feature:
Have the characteristics of high precision, good stability, long working life and high reliability.
With the function of LED display
Easy to installation.
Small in size, light in weight.
Pressure connection and Electrical connection are able to chosen by customers.
Suitable for measuring the gases and liquids.

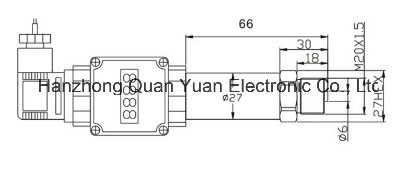

Dimension:

Technical specification:

Measuring media	gases or liquids which are compatible to 316L stainless steel
Measuring range	-100~0KPa, 0~5KPa.0~500KPa.0~100MPa
Pressure type	Gauge(G),Absolute(A),Sealed(S)
Signal output	transmitter, mA (2 wires)	4~20mA
Signal output	transmitter, Vdc (3 wires)	0~10V, 0~5V,1~5V,0~20mA
Combined accuracy	%FS	±0.5, ±0.3, ±0.2(Standard)
Long stability	≤±0.2%FS/year
Power supply	Vdc	12~36 (standard 24Vdc)
Compensated temp.	ºC	-10~+60
Operating temp.	ºC	-20~+80
Temperature coefficient of ZERO	%FS/10ºC	≤±0.3
Temperature coefficient of SPAN	%FS/10ºC	≤±0.3
Insulation resistance	MΩ	>500 @ 100Vdc
Display	LED display
Material	stainless steel(shell is cast aluminum)
Pressure connection	M20x1.5, M12x1, G1/4, G1/2,(customized)
Environment protection	IP	65
Safe overload	%FS	150
Ultimate overload	%FS	200

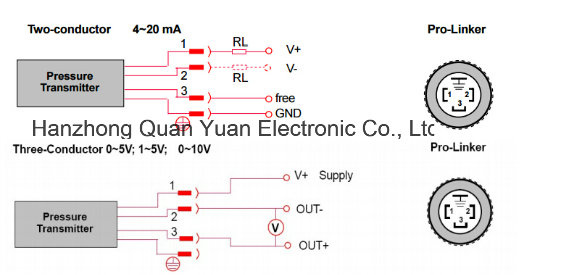

Electrical Connection:

Ordering code: model- range & type-signal output-accuracy-pressure connection-electrical
connection-defend grade-the other requests.
Example: QP-87X-0/300KPaG-4/20mA-0.25%FS-M20x1.5-DIN43650-IP65-***
