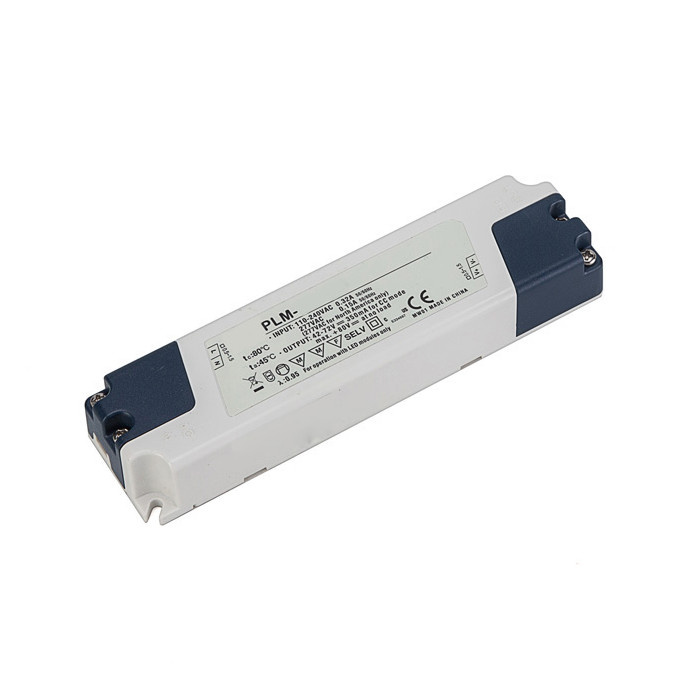

LED Driver 12-40W Constant Current with Pfc Function (PLM Series)

Name: LED Driver 12-40W Constant Current with Pfc Function (PLM Series)
Brand: all-electronics-online.com
SKU: 710847212
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 3.8-4/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-PLM
Constant Current:	Constant Current Design (Constant Current Mode
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

LED driver 12-40W constant current with PFC function (PLM Series)
Features:
* 110~295VAC input
*Built-in active power factor correction function
*Protection function: Short circuit, over temperature(PLM-40)
*Fully sealed insulation plastic shell
*Constant current design (constant current mode)
*No-load loss < 0.5W
*Three-phase analog dimming function (PLM-40)
*Natural cooling
*Class 2 or 1 isolation, no F.G
*IP30 Design
*Class 2 or 1 power supply, by LPS(limited power source) test
*Low cost, high reliability
*Suitable for indoor LED lighting application
*2 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

Start time

Short cirduit protection

PLM-40 over temperature protection

Withstand Voltage

Working Temperature

EMC standards

Connector
input/output

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

PLM-12

PLM-12-350

110~295VAC;156~417VDC

Cold start,
15A/230VAC

500ms (230VAC full load)

hiccup mode,auto-recovery

I/P-O/P:3.75KVAC

-30ºC~+50ºC

EN55015,EN61000-3-2 class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11, EN61547

2+2P,Layering type terminal type

22~36V,350mA

±5%

3.6V

85.0%

145x38x22

PLM-12-500

15~24V,500mA

±5%

2.4V

84.0%

PLM-12-700

11~18V,700mA

±5%

2.4V

83.0%

PLM-12-1050

±5%

1.8V

81.0%

PLM-25

PLM-25-350

110~295VAC;156~417VDC

Cold start,
15A/230VAC

500ms (230VAC full load)

hiccup mode,auto-recovery

I/P-O/P:3.75KVAC

-30ºC~+45ºC

42~72V,350mA

±5%

7.2V

87.0%

145x38x22

PLM-25-500

30~50V, 500mA

±5%

5.0V

86.0%

PLM-25-700

21~36V,700mA

±5%

3.6V

86.0%

PLM-25-1050

14~24V,1050mA

±5%

2.4V

85.0%

PLM-40

PLM-40-350

110~295VAC;156~417VDC

Cold start,
15A/230VAC

500ms (230VAC full load)

hiccup mode,auto-recovery

I/P-O/P:3.75KVAC

-30ºC~+45ºC

53~105V,350mA

±5%

10V

88.0%

175x42x24

PLM-40-500

40~80V, 500mA

±5%

8.0V

88.0%

PLM-40-700

29~57V,700mA

±5%

6.0V

87.0%

PLM-40-1050

19~38V,1050mA

±5%

4.0V

87.0%

PLM-40-1400

15~29V,1400mA

±5%

3.0V

86.0%

PLM-40-1750

12~23V,1750mA

±5%

2.5V

86.0%
