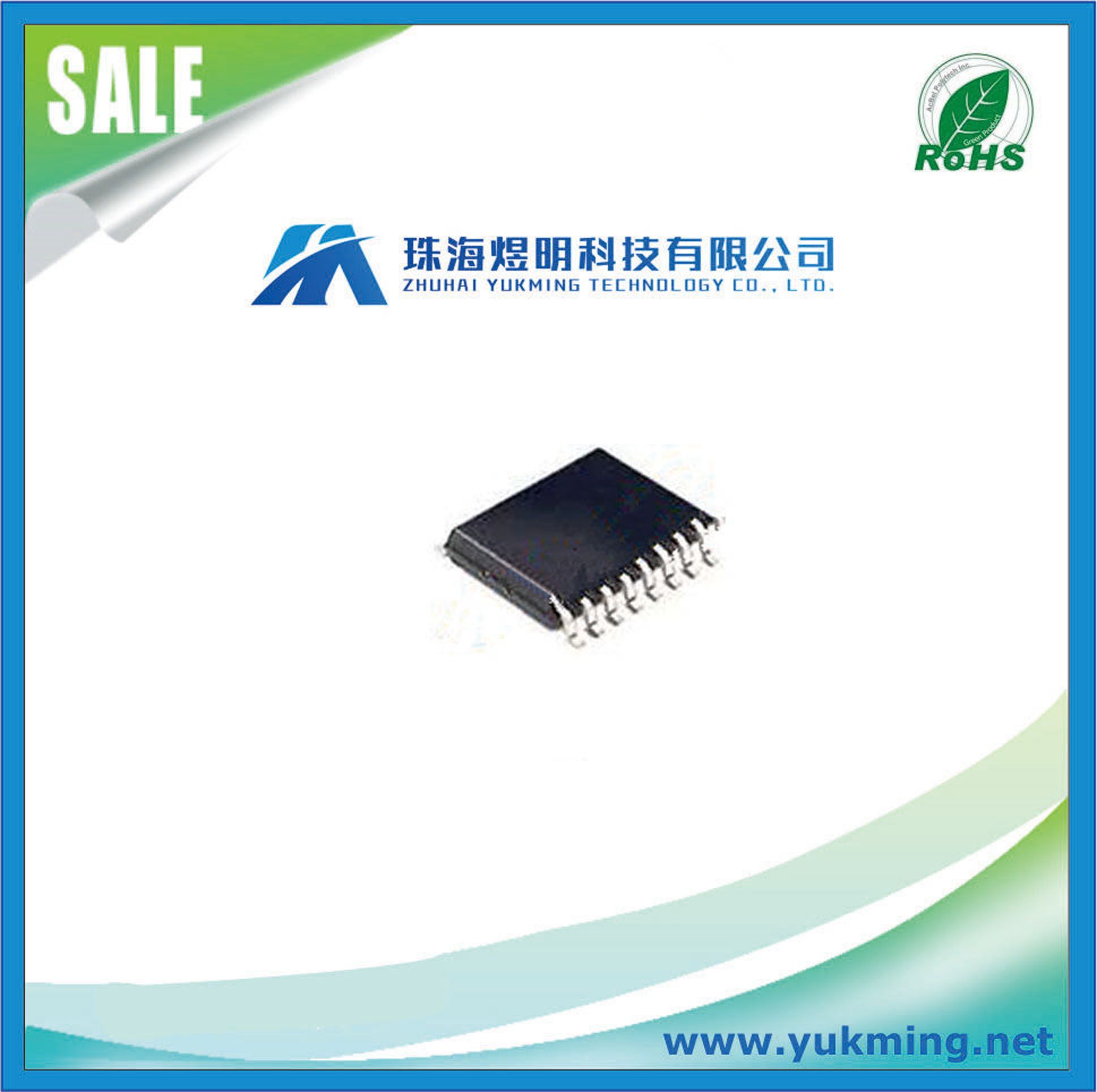

LED Driver IC Integrated Circuit Hv9912ng-G

Name: LED Driver IC Integrated Circuit Hv9912ng-G
Brand: all-electronics-online.com
SKU: 799252155
Availability: InStock
Rating: 4.8 (24 reviews)

Price:	US $ 0.65/Piece
Min Order:	14000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HV9912NG-G
Quantity:	14000
Low Level Output Current (Ua):	400000(Min)
Output Voltage (V):	0.7 to 6.75
Maximum Operating Supply Voltage (V) 90:	90
Maximum Power Dissipation (MW):	1200
Mounting:	Surface Mount
Lead Shape:	Gull-Wing

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can achieve WIN-WIN cooperation.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

PRODUCT CATEGORY
LED Driver

DESCRIPTION
LED DRVR 16-Pin SOIC N

Specifications
EU RoHS Compliant
Low Level Output Current (uA) 400000(Min)
Output Voltage (V) 0.7 to 6.75
Maximum Operating Supply Voltage (V) 90
Maximum Power Dissipation (mW) 1200
Mounting Surface Mount
Package Height (mm) 1.65(Max)
Package Length (mm) 9.9
Package Width (mm) 3.9
PCB changed 16
Standard Package Name SOP
Supplier Package SOIC N
Pin Count 16
Lead Shape Gull-wing

Features
Switch mode controller for single switch
drivers
♦ Buck
♦ Boost
♦ Buck-boost and SEPIC
Works with high side current sensors
Closed loop control of output current
High PWM dimming ratio
Internal 90V linear regulator (can be
extended using external zener diodes)
Internal 2% voltage reference
(0°C < TA < 85°C)
Constant frequency operation
Programmable slope compensation
Linear & PWM dimming
+0.2A/-0.4A gate drive
Hiccup Mode Protection for both short circuit
and open circuit conditions
Synchronization capability
Pin compatible with HV9911

Applications
LED backlight applications
General LED lighting applications
Battery powered LED lamps

Any items you need, please send the BOM List to us, we will for sure to supply you not only with new and original products but also the best service by our professional team who are with us since our head office in Shenzhen was set up in 2009!

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
