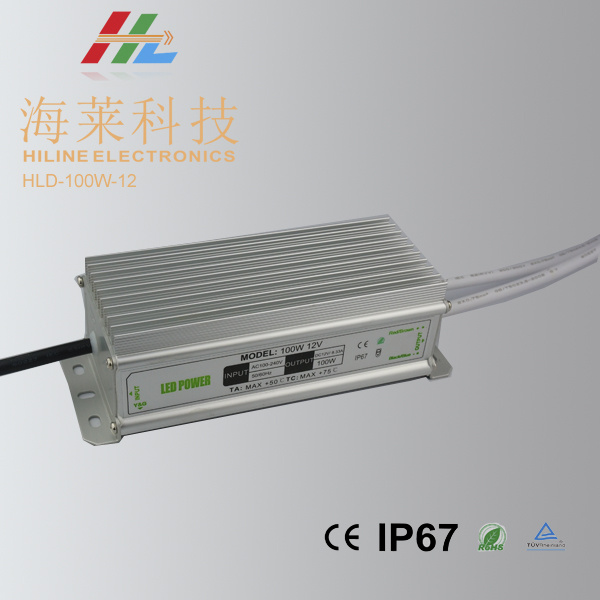

LED Driver Waterproof 12V 100W

Name: LED Driver Waterproof 12V 100W
Brand: all-electronics-online.com
SKU: 810026395
Availability: InStock
Rating: 4.5 (97 reviews)

Price:	US $ 15.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLD-100W-12
Size:	1786855mm
Usage:	LED Strip LED Module
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Brand:	Hiline

Product Description

100W 12V 24V Waterproof IP67 LED Driver Features:

1. Designed for constant voltage style, with steady and hi-precise voltage output;
2. The output voltage can be customized according to customer's requirements;
3. With aluminum body, protective grade is IP67;
4. Accord with CE, RoHS and LVD directive;
5. With 105° C electric capacitor, long life tenure, adaptable to terrible ambiance;
6. With PWM technology, safe isolated-style design;
7. Withstand instant surge input;
8. With overload, short circuit, over voltage, over thermal protection
9. Through sorts of strict quality test and 100% burn-in test;
10. Suitable for LED strip and moving sign applications etc.

Specifications:

MODEL		HLD-12V-100W	HLD-24V-100W
OUTPUT	Rated DC voltage	12V	24V
	Rated current	8.33A	4.16A
	Current range	0~8.33A	0~4.16A
	Rated Power	100W
	Voltage tolerance	12±0.5V	24±0.5V
	Ripple & Noise	200mVp-p
	Load regulation	±2%
	Setup, Rise time	50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage range	170~260VAC;
	Frequency range	47~63Hz
	Efficiency (Typ.)	>80%	>82%
	Leakage current	0.25mA/240VAC
PROTECTION	Over Current	110%~150%
		Protection type: Hiccup mode
	Short circuit	Short circuit protection
ENVIRONMENT	Working TEMP.	-20ºC~50ºC
	Storage TEMP.	-40ºC~80ºC
	Working Humidity	20~90% RH non condensing, refer to IP67
	Vibration	10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes
	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008
	Withstand Voltage	I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC
	Isolation Resistance	I/P-O/P:>100M Ohms/500VDC/25ºC/70% RH
	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:20
OTHERS	MTBF	08,EN61547:200950KHours (25ºC)
	Dimension	1786855mm(LWH)
	Weight	0.859Kg,20pcs/17.9Kg/0.021CBM
