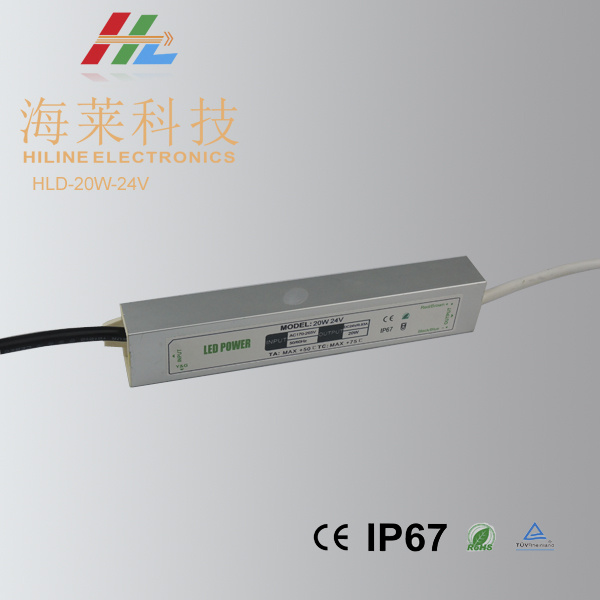

LED Driver Waterproof 20W

Name: LED Driver Waterproof 20W
Brand: all-electronics-online.com
SKU: 809758805
Availability: InStock
Rating: 4.4 (26 reviews)

Price:	US $ 4.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLD-20W-12/24
Size:	1002920mm
Color:	White or Black
Material:	Aluminum
Usage:	Vehicle
Output Type:	Single
Circuit Structure:	PWM Controlled
Driving Method:	Constant Voltage
Power Supply Voltage:	AC90-130V/AC170V-250V
Brand:	Hl

Product Description

20W LED IP67 Waterproof Driver Features:

1. Small size,High efficiency,High reliability,Long lifetime;

2. IP66 rating;

3. Working temperature -25~+50°C

4·Protection:Overload,Short-circuit pratection,Over-temperature;

5·Typical efficiency:85%

6·Low standby power,min to 0.5W;

7·Start delay design,which can reduce the starting current when multiple simulatance start;

8·CE,UL,IP66 certifide,ROHS compliant;

9·Low output ripple moises.

20W LED IP67 Waterproof Driver Specifications:

Item No.	HL-VD-12020D0960 HL-VD-24020D960
Input Voltage	90-264V
Output Voltage	12±0.5V ; 24±0.5V
Output Current	1.67A; 0.836A
Output Power	20W
Power type	Constant Voltage
Color	Silver
Material	Aluminum
Quality	High reliability
Strong point	High reliability and Low price
MOQ	1Pcs
Size	16225.526.5mm
Weight	200g
Protected functions	Short circuit/Over voltage/Over temperature
Standard	CE&UL&IP66&ROHS
Warranty	3 years warranty
Market	Europe&Australia&American and Others
Standard	CE Rohs FCC

Zhuhai Hi-Line Electronics is located in the beautiful coastal city-Zhuhai, China. It is a high-tech R&D enterprise dedicated to developing, producing various innovative LED RGB lighting products, LED power supply and intelligent controllers.

Our main products include LED RGB digital boarder tube, LED digital video tube, LED strip light, LED digital DMX tube, LED power supply and RGB intelligent controllers for LED lights. These products are widely applied in municipal projects, casinos, stage lighting, home decoration etc which have been receiving good reputation among many parts of the foreign markets, such as American and European areas, Middle East and Southeast Asia etc.

We have been in LED field since 2007; We continuously focus on our tenet "Quality, Honest, Innovative and Efficient". With experienced R&D team and advanced equipments, we can offer our customers with the most-innovative, cost-effective and advanced decorative LED lighting products used for events, parties, home decorations, weddings, exhibitions, business, indoor and outdoor applications. There is no doubt that your satisfaction is our priority concert.

We are warmly welcome you to establish win-win commercial partnership with us to exchange valuable information and explore splendid future in the field of LED lighting.
