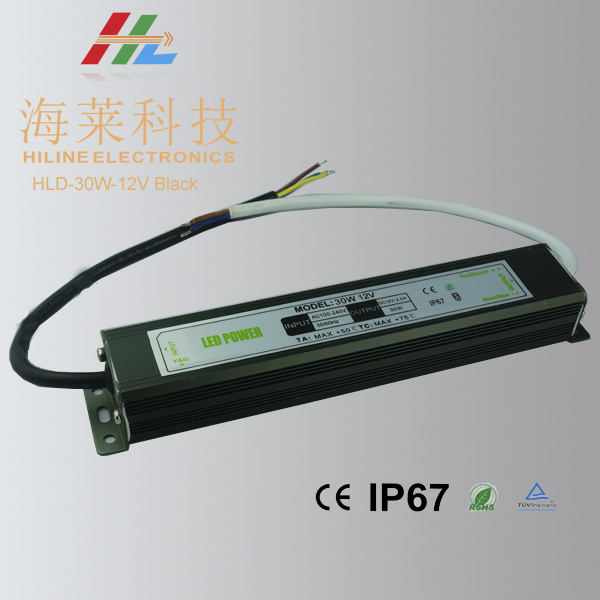

LED Driver Waterproof 30W Black

Name: LED Driver Waterproof 30W Black
Brand: all-electronics-online.com
SKU: 809760885
Availability: InStock
Rating: 4.6 (54 reviews)

Price:	US $ 4.4-5.17/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLD-30W-12/24
Size:	2263020mm
Color:	Optional: White or Black
Material:	Aluminum
Usage:	LED Strip LED Module
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Hiline

Product Description

Features:

1. Input: 90~250VAC Ouput: 2.5A/1.25A 30W;
2. Real 30W output, designed for 100% full loading constantly;
3. Aluminum housing, 100% waterproof, IP 67;
4.100% full load burn-in tested;
5. Overload / short circuit protection;
6. Plug is available for LED driver;
7. OEM is acceptable.

Specifications:

MODEL		HLD -12V-30W	HLD -24V-30W
OUTPUT	Rated DC voltage	12V	24V
	Rated current	2.5A	1.25A
	Current range	0~2.5A	0~1.25A
	Rated Power	30W
	Voltage tolerance	12±0.5V	24±0.5V
	Ripple & Noise	200MVP-p
	Load regulation	±2%
	Setup, Rise time	50ms/230VAC
	Hold up time	20ms/230VAC
INPUT	Voltage range	170~260VAC;
	Frequency range	47~63Hz
	Efficiency (Typ. )	>80%	>80%
	Leakage current	0.25mA/240VAC
PROTECTION	Over Current	110%~150%
		Protection type: Hiccup mode
	Short circuit	Short circuit protection
ENVIRONMENT	Working TEMP.	-25ºC~50ºC
	Storage TEMP.	-40ºC~80ºC
	Working Humidity	20~90% RH non condensing, refer to IP67
	Vibration	10~500Hz, 2G 10min/1cycle, period for 60min, each along X, Y, Z axes
	TEMP. coefficient	±0.03%/ºC(0~50ºC)
SAFETY & EMC	Safety Standards	IP67 approved; Design refer to LVD EN61347-2-13: 2005, EN61347-1: 2008
	Withstand Voltage	I/P-O/P: 3KVAC, I/P-COVER: 3KVAC, O/P-COVER: 500VAC
	Isolation Resistance	I/P-O/P: >100M Ohms/500VDC/25ºC/70% RH
	EMC	EN55015: 2006/A2: 2009, EN61000-3-2: 2006/A2: 2009, EN61000-3-3: 20
OTHERS	MTBF	08, EN61547: 200950KHours (25ºC)
	Dimension	2223020mm(LWH)
	Weight	0.26Kg, 80PCS/21.3Kg/0.023CBM

Mechanical Specs:
