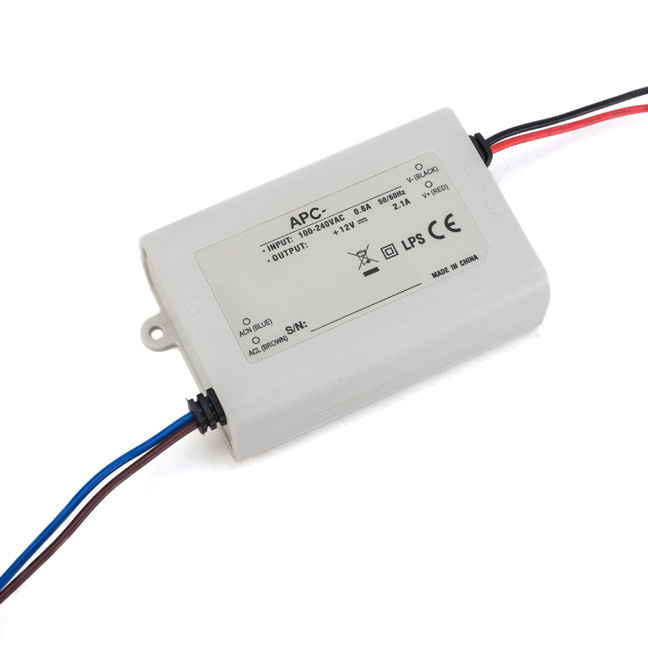

LED Drivers 12-35W Single Output (APC series)

Name: LED Drivers 12-35W Single Output (APC series)
Brand: all-electronics-online.com
SKU: 789577195
Availability: InStock
Rating: 4.7 (98 reviews)

Price:	US $ 4/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-APC
Function:	Constant Current Mode
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

LED drivers 12-35W Single output (APC series)
Features:
*Universal AC input / full range
*Fully sealed insulation plastic shell
*IP 30 design
*Withstand 300VAC surge input for 5 seconds(APC-25/35)
*Class 2 isolation, no F.G
*Natural cooling
*Protection function: short circuit,over voltage
*APC Constant current design (constant current mode)
*100%full load ageing test
*Low cost,high reliability
*Applicable to LED lighting and LED electronic display screen
*2 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

Overload protection

Over voltage protection

Withstand Voltage

Working Temperature

EMC standards

Connector
input/output

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

APC-12
(constant current mode)

APC-12-350

90~264VAC;127~370VDC

Cold start,
70A/230VAC

>105% hiccup mode,auto-recovery

110%~145% Rated output voltage

I/P-O/P:3.75KVAC

-30ºC~+70ºC

EN55015,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11,EN61547

Input: UL,18AGWx2C(15cm);Output:UL,20AGWx2C(15cm)

9~36V,350mA

±8%

300mV

82.0%

77x40x29

APC-12-700

9~18V,700mA

±8%

250mV

80.0%

APC-16
(constant current mode)

APC-16-350

90~264VAC;127~370VDC

Cold start,
45A/230VAC

12~48V,350mA

±8%

300mV

84.0%

77x40x29

APC-16-700

9~24V, 700mA

±8%

250mV

83.0%

APC-25
(constant current mode)

APC-25-350

90~264VAC;127~370VDC

Cold start,
45A/230VAC

>105% hiccup mode,auto-recovery

110%~145% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

EN55022 class B,EN61000-3-2Class A,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11

Input: UL,18AGWx2C(15cm);Output:UL,18AGWx2C(15cm)

25~70V,350mA

±8%

300mV

83.0%

84x57x29.5

APC-25-500

15~50V, 500mA

±8%

300mV

83.0%

APC-25-700

11~36V,700mA

±8%

300mV

83.0%

APC-25-1050

9~24V,1050mA

±8%

300mV

83.0%

APC-35
(constant current mode)

APC-35-350

90~264VAC;127~370VDC

Cold start,
45A/230VAC

>105% hiccup mode,auto-recovery

110%~145% Rated output voltage

I/P-O/P:3KVAC

-30ºC~+70ºC

28~100V,350mA

±8%

350mV

84.0%

84x57x29.5

APC-35-500

25~70V, 500mA

±8%

350mV

84.0%

APC-35-700

15~50V,700mA

±8%

350mV

84.0%

APC-35-1050

11~33V, 1050mA

±8%

350mV

84.0%
