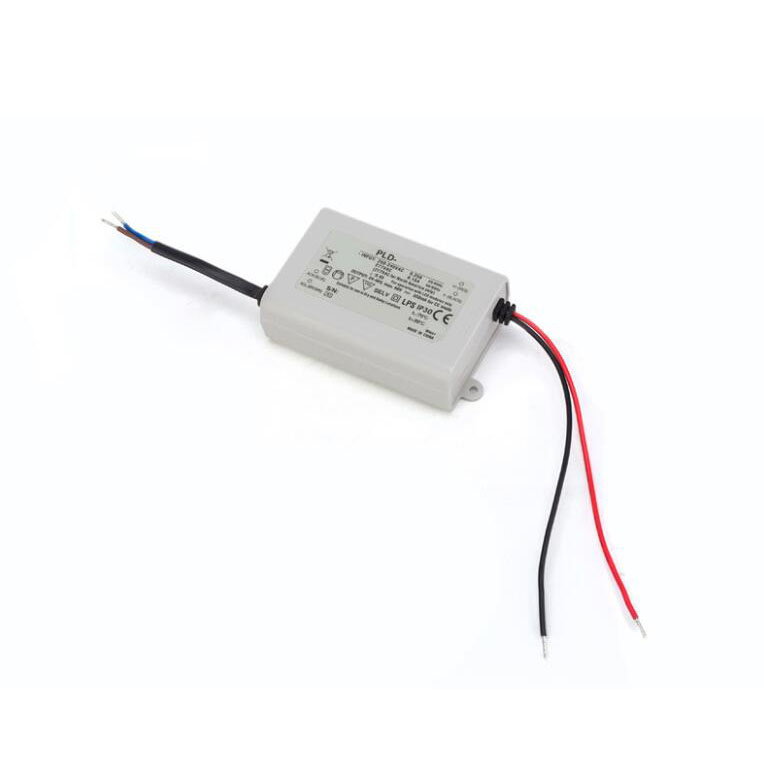

LED Drivers 16-60W Constant Current with Pfc Function (PLD Series)

Name: LED Drivers 16-60W Constant Current with Pfc Function (PLD Series)
Brand: all-electronics-online.com
SKU: 789876145
Availability: InStock
Rating: 4.9 (44 reviews)

Price:	US $ 4-4.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-PLD
Constant Current:	Constant Current Design (Constant Current Mode
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

LED drivers 16-60W constant current with PFC function(PLD Series)
Features:
*PLD-16: 115VAC or 230VAC input
*PLD-25: 90~295VAC (input)
*PLD-40 / 60 : 230VAC (input)
*Built-in active power factor correction function
*Fully sealed insulation plastic shell
*Class 2 or 1 isolation, no F.G
*Natural cooling
*Constant current design (constant current mode)
*IP30 Design
*Class 2 or 1 power supply, by LPS(limited power source) test
*Protection function: Short circuit, over temperature
*Suitable for all kinds of LED lighting
*3 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

Withstand Voltage

Short cirduit protection

over temperature protection

Working Temperature

EMC standards

Connector
input/output

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

PLD-16

PLD-16-350

115VAC(90~135VAC) or 230VAC(180~295VDC)

Cold start,
20A/230VAC

I/P-O/P:3.75KVAC

hiccup mode,auto-recovery

Shut down the output voltage,restart after recovery

-30ºC~+50ºC

A type & PLD-25: FCC part18 non-consumer equipment
B type & PLD-25: EN55015,EN61000-3-2 class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11, EN61547

Input: PLD-16 A type: UL1430,18AGWx2C(7.5cm);PLD-16 B type &PLD-25 : NISPT-1 18AGWx2C(7.5cm);PLD-40/60:H03VVH2-F 0.75mm2x2C (7.5mm);Output:UL1430,18AGWx2C(15cm)

24~48V,350mA

±5%

4.6V

84.5%

84x57x29.5

PLD-16-700

16~24V,700mA

±5%

2.7V

84.5%

PLD-16-1050

12~16V,1050mA

±5%

2.2V

84.0%

PLD-16-1400

8~12V,1400mA

±5%

2.0V

82.5%

PLD-25

PLD-25-350

90~295VAC

Cold start,
15A/230VAC

I/P-O/P:3.75KVAC

hiccup mode,auto-recovery

-30ºC~+60ºC

36~58V,350mA

±5%

4.6V

85.0%

84x57x29.5

PLD-25-700

24~36V, 700mA

±5%

2.7V

86.0%

PLD-25-1050

16~24V,1050mA

±5%

2.2V

85.0%

PLD-25-1400

12~18V,1400mA

±5%

2.0V

84.0%

PLD-40

PLD-40-350B

230VAC(180~295VDC)

Cold start,
25A/230VAC

I/P-O/P:3.75KVAC

hiccup mode,auto-recovery

Close the output voltage,automatic recovery

-30ºC~+50ºC

70~108V,350mA

±5%

9.5V

88.0%

128x60x31.5

PLD-40-500B

45~80V, 500mA

±5%

5.0V

88.0%

PLD-40-700B

34~57V,700mA

±5%

3.1V

87.0%

PLD-40-1050B

22~38V,1050mA

±5%

2.6V

87.0%

PLD-40-1400B

17~29V,1400mA

±5%

2.5V

86.0%

PLD-40-1750B

13~23V,1750mA

±5%

2.4V

86.0%

PLD-60

PCD-60-500B

Cold start,
25A/230VAC

hiccup mode,auto-recovery

-30ºC~+45ºC

70~108V,500mA

±5%

10.2V

88.0%

128x60x31.5

PCD-60-700B

50~86V, 700mA

±5%

5.6V

87.0%

PCD-60-1050B

34~57V,1050mA

±5%

3.8V

87.0%

PCD-60-1400B

25~43V,1400mA

±5%

3.4V

86.0%

PCD-60-1750B

20~34V,1750mA

±5%

3.3V

86.0%

PCD-60-2000B

18~30V,2000mA

±5%

2.4V

86.0%

PCD-60-2400B

15~25V,2400mA

±5%

2.4V

85.0%
