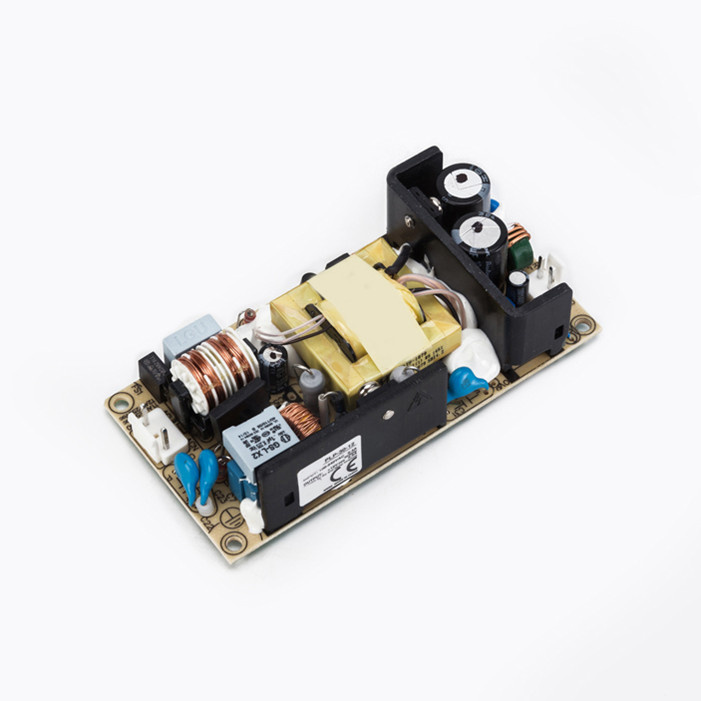

LED Drivers 20-60W with Pfc Function (PLP Series)

Name: LED Drivers 20-60W with Pfc Function (PLP Series)
Brand: all-electronics-online.com
SKU: 789883945
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	US $ 3/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-PLP
Dimming Function:	Built-in 3 in 1 Dimming Function(1-10VDC,PWM Signa
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	OEM

Product Description

LED drivers 20-60W with PFC function(PLP Series)
*Universal AC input/full range
*Built-in active power factor correction function
*Natural cooling
*Built-in 3 in 1 dimming function(1-10VDC,PWM signal or resistance)
*Class 2 isolation, no F.G(PLP-20)
*Protection function: short circuit,over current,over voltage,over temperature(only PLP-20)
*Built-in current limiting circuit
*Class 2 power supply, by LPS(limited power source)test
*Used in the LED lighting system
*2 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

Current adjustable range

Over current protection

Start,rise,holding time

Withstand Voltage

Working Temperature

EMC standards

Connector

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

PLP-20

PLP-20-12

90~277VAC;
127~392VDC

Cold start,
25A/230VAC

75%~100%

95%~110% Rated current limit,, Automatic recovery

2300ms,200mss(230VAC Full load),no hold time

I/P-O/P:3.75KVAC,

-30ºC~+60ºC

EN55015,EN61000-3-2Class C,EN61000-3-3,EN61000-4-2,3,4,5,6,8,11,EN61547

UI1015 18AWGX2C(30cm)

12V, 0~1.6A

±10%

2.5V

80.0%

140x32x22

PLP-20-18

18V, 0~1.1A

±10%

3.0V

81.0%

PLP-20-24

24V, 0~0.8A

±10%

3.0V

82.0%

PLP-20-36

36V, 0~0.55A

±10%

3.0V

83.0%

PLP-20-48

48V, 0~0.42A

±10%

3.8V

83.5%

PLP-30

PLP-30-12

90~264VAC;
127~370VDC

Cold start,
25A/230VAC

75%~100%

100%~110% Rated current limit,, Automatic recovery

1200ms(230VAC Full load),no hold time

I/P-O/P:3.75KVAC, I/P-FG:2KVAC,O/P-FG:0.5KVAC

-30ºC~+70ºC

EN55015,EN61000-3-2Class C,EN61000-4-2,3,4,5,6,8,11,EN61547

3+2P/3.96mm pitch,JST P/N:B3P/B2P-VH

12V, 0~2.5A

±10%

2.0V

83.0%

101.6x50.8x26.6

PLP-30-24

24V, 0~1.3A

±10%

2.4V

85.5%

PLP-30-48

48V, 0~0.63A

±10%

4.8V

86.5%

PLP-45

PLP-45-12

90~264VAC;
127~370VDC

Cold start,
30A/230VAC

75%~100%

100%~110% Rated current limit,, Automatic recovery

1000ms(230VAC Full load),no hold time

I/P-O/P:3.7KVAC, I/P-FG:2KVAC,O/P-FG:0.5KVAC

-30ºC~+70ºC

EN55015,EN61000-3-2Class C,EN61000-4-2,3,4,5,6,8,11,EN61547

3+2P/3.96mm pitch,JST P/N:B3P/B2P-VH

12V, 0~3.8A

±10%

4.2V

86.0%

101.6x50.8x26.6

PLP-45-24

24V, 0~1.9A

±10%

3.8V

89.0%

PLP-45-48

48V, 0~0.95A

±10%

4.8V

89.0%

PLP-60

PLP-60-12

90~264VAC;
127~370VDC

Cold start,
35A/230VAC

75%~100%

100%~110% Rated current limit,, Automatic recovery

1000ms(230VAC Full load),no hold time

I/P-O/P:3.7KVAC, I/P-FG:2KVAC,O/P-FG:0.5KVAC

-30ºC~+70ºC

EN55015,EN61000-3-2Class C,EN61000-4-2,3,4,5,6,8,11,EN61547

3+2P/3.96mm pitch,JST P/N:B3P/B2P-VH

12V, 0~5.0A

±10%

4.5V

84.0%

101.6x50.8x26.6

PLP-60-24

24V, 0~2.5A

±10%

4.5V

88.0%

PLP-60-48

48V, 0~1.3A

±10%

4.8V

89.0%
