| Prod Model: |
LS-21-EM |
| Usage: |
Light |
| Output Type: |
Dual |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
Electronic Step-down Transformer |
| In-Out: |
DC24-42V |
| Power Supply Voltage: |
AC100-277V |
Product Description
LED Emergency Lighting Drivers are designed for LED lighting products, which can reduce the power of lamps
to light when the AC power off in the situation of emergency state.Luxsky Lighting company ,
as a professional LED Lighting products manufacturer, would like to offer our client with
emergency lighting solutions together to finish their high quality lighting projects.
LED Emergency Lighting Driver Kits Series
Emergency Parameters:
| Power | 3W | 5W | 6W | 8W | 10W | 12W | 15W | 18W |
| Time(H) | 1/1.5/2/3H | 1/1.5/2/3H | 1/1.5/2/3H | 1/1.5/2/3H | 1/1.5/2/3H | 1/1.5/2/3H | 1/1.5/2/3H | 1/1.5/2/3H |
Features of the Emergency lighting Battery:
Product Name: LED Emergency Driver
Product No.: LS-21-EM-XX ( XX stands for power)
Input Voltage: AC100-277V( with led products driver)
Out Voltage: DC24-42V
Battery Type: Alluminum battery
Shell: Metal/ Plastic
Emergency Power: full power or reduce power(<72W)
Emergency Time: 60/90/120/180 minutes available
Certificates: CE & RoHs
International using date: 2 years warranty, 3th year to change forcely.

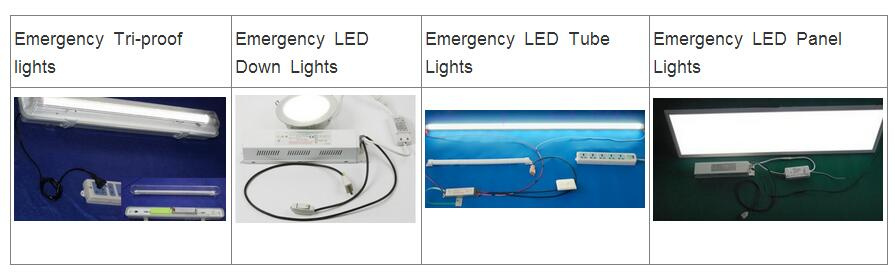

Application of Emergency Lighting:
LED Emergency driver, as a part of the lighting system, they are mainly made of LED light, battery,
inverter and when the whole power is off and offer the emgergency power to lamps and their
featurers & application as following:
LED bulbs, LED Panels, LED down lights, LED Tube lights, LED Ceiling lights, LED Spot lights,
LED Linear Lights, LED Track Lights,LED Tri-proof lights, where these lamps are used in the
commercial lighting or offical lighting,public lighting for safety emergency. such as: inground parking lots,
supermarkets, metro stations,high biulding offices, hotels.

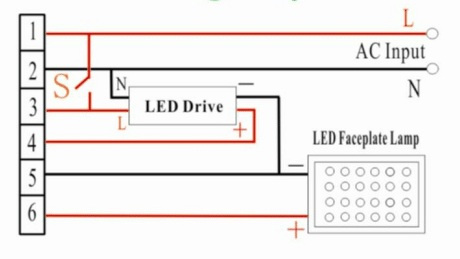

Emergency Driver Connect Drawing & Attention:
Seeing the connect drawing and each part will separately connect to the following lines: 1>. "1" connect AC"L". 2>. "2" connect AC"N" and LED driver's AC "-" ends. 3>. From "1" to connect one wire to wall switcher "S", then connect to "3". LED driver's AC "L" also needs to connect to "3". 4>. "4" connect LED driver's DC"+" of DC output end. 5>. "5"connect Lamp's "-" and LED driver's DC"-" here. 6>. "6"connect lamp's " +" here. After all connections are finished, then turn on the power to test. Do not allow the emergency driver to be no load, no matter to check the lighting function or test the inverter's charging function, it must connect lamp to work. Main driver wire: AC "L" and "N" must connect to the main wire in the emergency box, switcher is not allowed to install on them. When lamp starts emergency lighting, it will be not controlled by Switcher. Green LED: it shows driver working; Red LED, it shows recharging; Yellow LED: it shows malfunction. In the emergency lighting, except LED lamp, all working sign lamps will be turned off. |

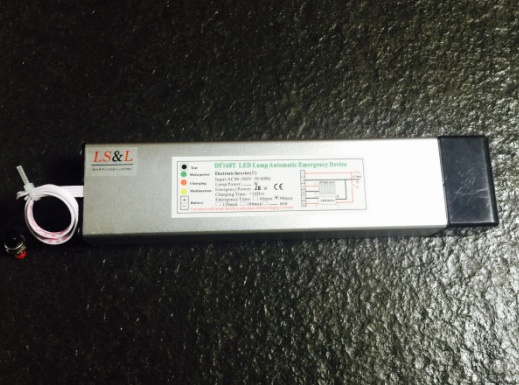

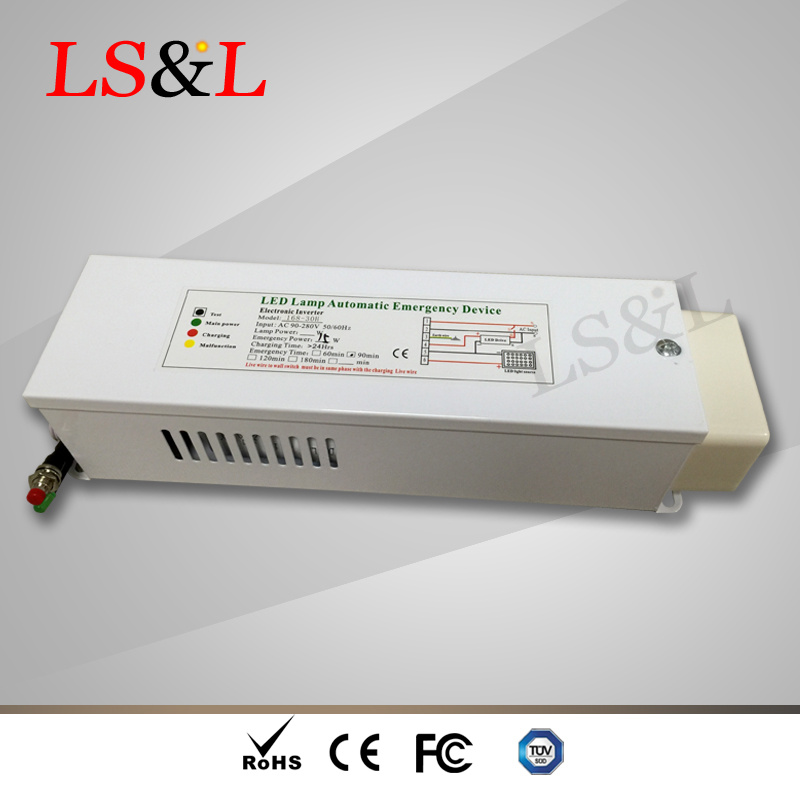

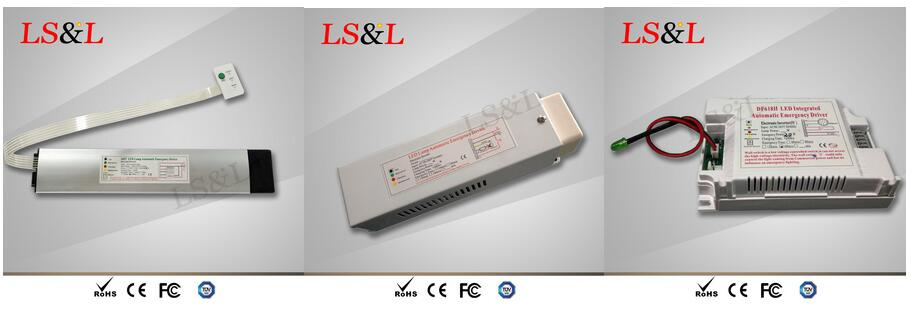

The real Photos of LED Emergency Battery Kits:
