| Prod Model: |
XWC-23522 |
| IP Grade: |
IP67 |
| Custom Service: |
Available |
| Overlay Material: |
F200 |
| Wiring: |
Single Live Line |
| Type: |
Flexible |
| Material: |
PET |
| Application: |
Medical Machine |
| Structure: |
Pet+Metal Dome+Lower Circuit+Rear Adhesive+Housing |
| Detection Method: |
Electrical Test |
| Brand: |
Singway |

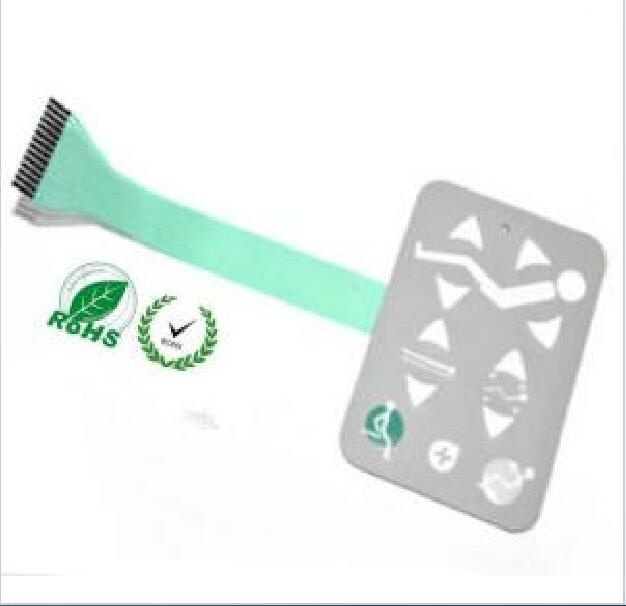

Product Description
This product is mainly used in health care medical equipment, the key was embossed, metal shrapnel, handle light and moderate, suitable for the special needs of the people.Also,We have advantage because we are the manufactory,we can accept small quantity order and offer competitve price and we are professional of make sure all the material are in high quality,all the material we used are ROHs,we design accurately and strickly according to the customers' requirement,for example,the function, button, content, the color, the effect and so on, the outward appearance is exquisite and long life used. This product can be based on customer needs to put a variety of colors of LED lights and the functional is very strong.
Please see the construction as the following:
| LAYER CONSTRUCTION and Performance |
| CONSTRUCTION | Material | THK(mm) |
| Graphic Overlay | F200 | 0.2mm |
| Spacer tape | 3M7956 | 0.15mm |
| Upper circuit | DK11 | 0.125mm |
| Spacer tape | DP-75TA | 0.175mm |
| Lower circuit | DK11 | 0.125mm |
| LED Spacer tape | DP-75TA | 0.175mm |
| Lower circuit Polyester | DK11 | 0.125mm |
| Rear Adhesive | 3M468 | 0.13mm |
| Resistance | <150OHMS | |
| Pitch | 2.54mm | |
| Silver Paste | ED725A/CI1001 | |
| Carbon Paste | ED423SS/CI2001 | |
| Insulating Ink | ED452SS/DI7502 | |
| LED | ZUR88W-05*2 | |
In addition, this product is fully in line with the requirements of ISO 13485 medical product certification.
Our Service
1.Your email will be replied within 24 hours during the working time.
2. Whenever, we are pleased to get your order and any relevant requests.
3. Ensure the products meet the quality standards.
4. Ensure the goods will be delivered on time.
5.Your own label,we could use your label,with your company name and details.
6. Provide warm and friendly service and after-sale service.
7. About the warranty, if you have any problem about the goods after received it, you can tell us on time. We will make sure to give you a satisfactory solution.
8. For more details and latest price, please feel free to contact us.
Dongguan Singway Electronic Technology Co., Ltd. Was established in September 2011, a set of research and development, manufacturing, sales and service as one of the high-tech enterprises, adjacent to the beautiful scenery of the Dongguan Songshan Lake Science and Technology Industrial Park, plant construction area of about 7000 square meters, the company has a high-quality professional management and R & D team, management and engineering and technical personnel account for 40%, with advanced and system, the value of the touch screen technology and solutions provider.
Dongguan Singway Electronic Technology Co., Ltd. is a professional R & D, manufacturing Touch Panel ITO (touch screen) manufacturers. Has the introduction of the United States, Japan, Taiwan and the domestic production, testing, laboratory equipment. Mainly to provide pre installed and post navigation, security, industrial control, smart home, medical equipment and other special touch screen. The monthly output is 400K/PCS, and has gradually become the outstanding supplier of many large enterprises. Dongguan Xing Electronic Technology Co., Ltd. Adhering to the "product quality first, market-oriented, customer value maximization" for the business philosophy; "thinking, conservation, implementation of the" management philosophy; "quality of service first, to maximize meet customers all reasonable demand" for the service concept. Relying on excellent technology and sophisticated equipment, and continued to establish a perfect quality, environment, safety and health management system, to promote the company's overall management of continuous improvement and continuous improvement. Has passed ISO9001/TS16949 quality management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, QC080000 hazardous substance process management system certification.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
