LED Microwave Keypad Membrane Switch

Name: LED Microwave Keypad Membrane Switch
Brand: all-electronics-online.com
SKU: 715161205
Availability: InStock
Rating: 4.9 (70 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-MS-121
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Feature:	LED
Touch Feeling:	Excellent Touch Feeling
Material:	PET
Type:	Convex
Application:	Machines

Product Description

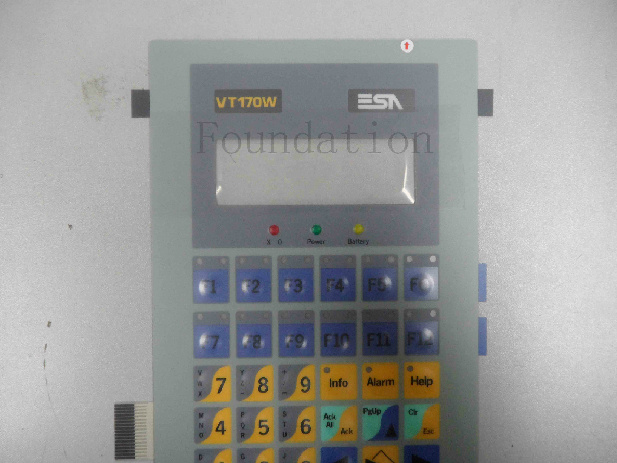

LED Microwave Keypad Membrane Switch

Membrane switch is a conductive keypad panel with unique cosmetic design.
We offer full range designs of membrane keyboard switches:
Membrane switch with LED and EL backlight
Membrane switch with silicone rubber keypad
Membrane switch with flexible FPC
Membrane switch with EL plate
Membrane switch with tail termination either male or female connectors
Water-resistant type membrane switch
ITO touch screen embedded membrane switch
Membrane switch OEM orders are welcome

Membrane switch specifications:
Maximum circuit rating: 35V DC, 100mA, 1W
Contact resistance: 10 to 500 Ohms (varied from the trace length and material)
Insulation resistance: 100MΩ At 100V Dielectric withstand: 250V RMS (50 to 60Hz per minimum)
Contact bounce: 5ms or less
Actuation force: Tactile type: 150 to 400g (6 to 14 ounce)
Switch stroke: Tactile type: 0.6 to 1.5mm
Life expectancy: Tactile type: 1, 000, 000 closures or more
Surface hardness: 3H or more

Notice: We have the capacity to provide you membrane switches with other special requirements, such as water proof, shielding, windows/lens coating, embedded LEDs, UV glossy/ matte/ textured, etc.

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
