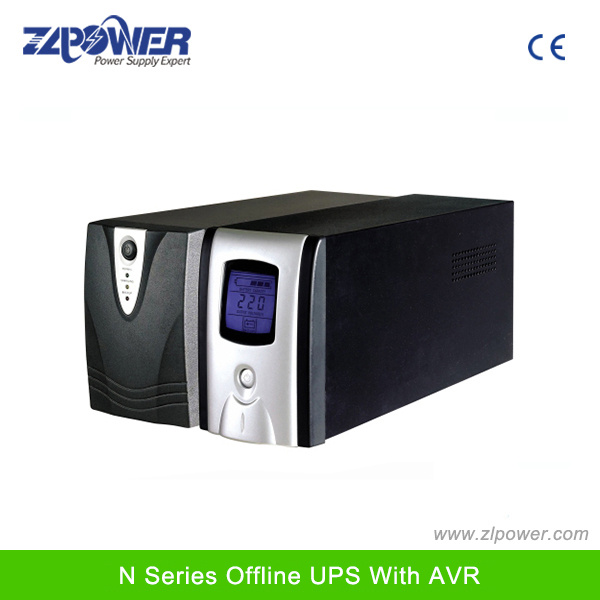

LED Offline UPS-Computer Power System UPS-400VA-1500VA UPS (N Series)

Name: LED Offline UPS-Computer Power System UPS-400VA-1500VA UPS (N Series)
Brand: all-electronics-online.com
SKU: 675815805
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	N400~N1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overcurrent

Product Description

LED Offline UPS-Computer Power System UPS-400VA-1500VAUPS
Product Features

IP/OP: 110/220VAC 50/60Hz
IP/OP: 110/220VAC 50/60Hz

KEY FEATURES
Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Function & Characteristic:
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
APPLICATION
Home, computer, printer, POS, computer peripherals

Product performance

TECHNICAL SPECIFICATION
MODEL
N400
N500
N650
N800
N1000
N1200
N1500

Nominal Voltage
400VA/240W
500VA/300W
650VA/390W
800VA/480W
1000VA/600W
1200VA/720W
1500VA/900W

Input
Voltage Range
145~280VAC

Frequency
50/60Hz

Output
Voltage Range
220VAC ± 10%

Frequency
50Hz ± 5%

Output Waveform
Square Wave

Transfer time
< 10ms

Battery
Type
Sealed free maintenance lead acid battery

Capacity
12V, 4AH *1PCS
12V, 7AH *1PCS
12V, 7AH *1PCS
12V, 9AH *1PCS
12V, 7AH *2PCS
12V, 9AH *2PCS
12V, 9AH *2PCS

Recharge Time
8 hrs to 90% of capacity full load discharge

Protection
Auto protect

Back-up time( Full load )
3~5 min
5~7 min
7~10 min
6~8 min
5~7 min
8~10 min
10-12min

Function
Auto voltage output on AC mode, Auto shutoff if short circuit or overload

dB-9 port, communication software
Optional RS232, RJ11, RJ45, USB

Protection
AC mode
Fuse

Short circuit
AC
Fuse

Invert mode
Auto protect

Alarm
Alarm
Battery discharge
Alarm beeps every four seconds

Low battery voltage
Alarm beeps every second

Overload
Alarm beeps continuously

Indicator light
Auto adjust
Green lighting: AC mode

Battery Discharge
Red lighting: Battery mode

Environment
Operating temperature
0C~40C

Operating Humidity
0-90% non-condensing

Noise
<35dB (1 meter distance)

UPS Dimension (L× W× H) mm
325*90*150
335*100*150
345*125*190

Net weight (N. W)
4.5KG
6.5KG
6.8KG
7.5KG
11KG
12KG
13KG

Gross weight (G. W)
4.7KG
6.7KG
7KG
7.7KG
11.3KG
12.3KG
13.3KG

Nominal Voltage			400VA/240W	500VA/300W	650VA/390W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/900W
Input	Voltage Range		145~280VAC
	Frequency		50/60Hz
Output	Voltage Range		220VAC ±10%
	Frequency		50Hz ±5%
Output Waveform					Square Wave
Transfer time			< 10ms
Battery	Type		Sealed free maintenance lead acid battery
	Capacity		12V,4AH *1PCS	12V,7AH *1PCS	12V,7AH *1PCS	12V,9AH *1PCS	12V,7AH *2PCS	12V,9AH *2PCS	12V,9AH *2PCS
	Recharge Time		8 hrs to 90% of capacity full load discharge
	Protection		Auto protect
	Back-up time( Full load )		3~5 min	5~7 min	7~10 min	6~8 min	5~7 min	8~10 min	10-12min
Function			Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port,communication software			Optional RS232, RJ11, RJ45, USB
Protection	AC mode		Fuse
	Short circuit	AC	Fuse
		Invert mode	Auto protect
Alarm	Alarm	Battery discharge	Alarm beeps every four seconds
		Low battery voltage	Alarm beeps every second
		Overload	Alarm beeps continuously
	Indicator light	Auto adjust	Green lighting: AC mode
		Battery Discharge	Red lighting: Battery mode
Environment	Operating temperature		0C~40C
	Operating Humidity		0-90% non-condensing
	Noise		<35dB (1 meter distance)
UPS Dimension (L×W×H) mm			32590150	335100150			345125190
Net weight (N.W)			4.5KG	6.5KG	6.8KG	7.5KG	11KG	12KG	13KG
Gross weight (G.W)			4.7KG	6.7KG	7KG	7.7KG	11.3KG	12.3KG	13.3KG
