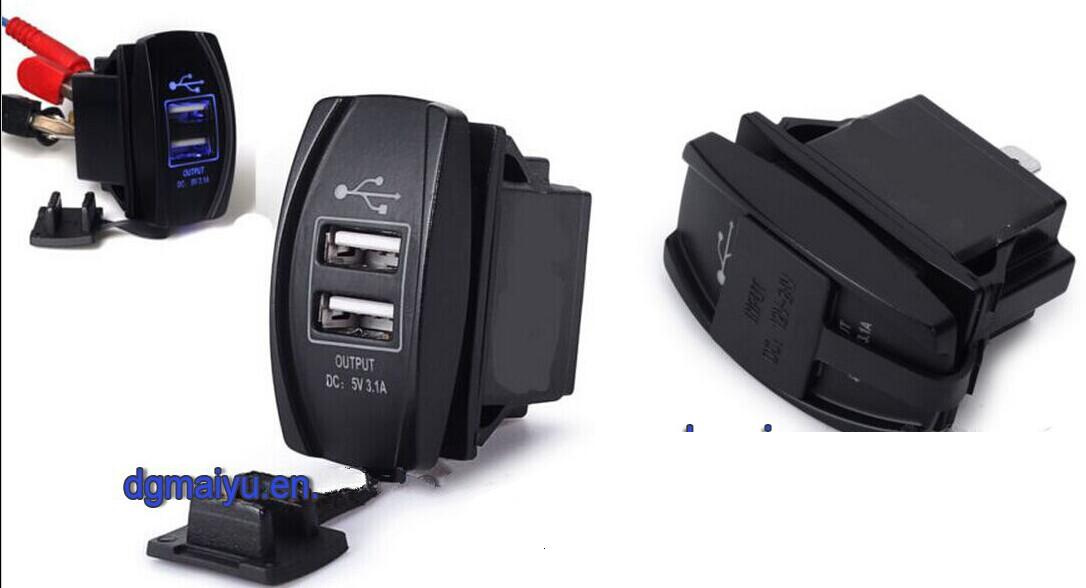

LED on-off Illuminated Rocker Spst Switch with Dual USB Charger Socket

Prod Model:	rocker Switch + Dual USB charger Socket-163
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Maiyu
Max. Current:	DC20A\10A AC 10A \16A
Max. Voltage:	DC12V\24V AC 250V\125V
Warranty:	1 Year
Size:	49.57*24.4*49(Mm)
Nstallation Of The Product Hole:	37.2*21.2mm
Maximum Load And Time:	DC 12V /23A 24V/11.5A
Maximum Continuous Load:	AC 125V/10A, 2V/20A, 24V/10A
Max Contact Load:	AC 125V/10A, 2V/20A, 24V/10A
Mechanical Life:	30000cycle
Usage:	Vehicle
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Illuminated Rocker Switch + Dual USB Socket

Description:
[1] super luxury high-end automobile refitting switch usb sockets, with LED indicator;
[2] CE certification, environmental friendly flame retardant materials;
[3] 12-24V voltage vehicle general; suitable for retrofit control car all equipment;
[4] output short-circuit protection, overload protection, polarity protection, multiple protection,more security for use.
Led indicator light: blue

With light condition: 1
Product size: 49.57*24.4*49(mm)
installation of the product rule: 37.2*21.2mm
weight: 30g
Maximum continuous load: AC 125V/10A ,2V/20A,24V/10A
Maximum load and time: DC 12V /23A 24V 11.5A 5 seconds for once,Continuous 30 times
Minimum load current: Minimum load can be zero

DC maximum voltage: 30v
DC minimum voltage: 3v
Max contact load: AC 125V/10A ,2V/20A,24V/10A
Break the negative sectional maximum contact: AC 1500V 1 miunte
Working cycle: 5s
Life cycle without load: 20000
The life cycle of full load: 10000
Contact materials / components: Silver tin oxide / copper
Operating temperature range: 30K
Product material: CE,ABS waterproof material
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
