LED Panel Constant Current 36W 40W LED Driver

Name: LED Panel Constant Current 36W 40W LED Driver
Brand: all-electronics-online.com
SKU: 717242122
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 2-3.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTS-D40W
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Electronic Step-down Transformer
Pack Sealing Size:	15
Brand:	Pts

Product Description

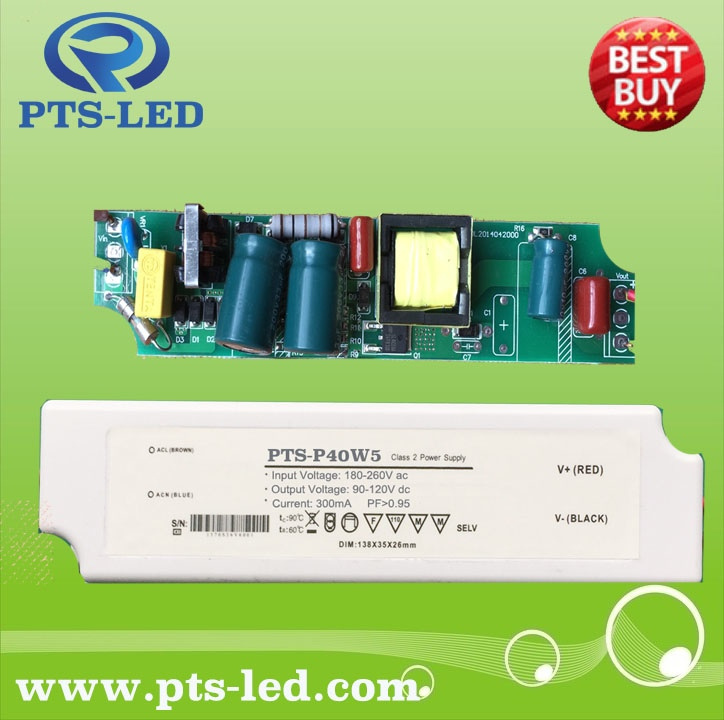

Constant current 36W 40W LED Driver
Features:

PTS-Standard 36W LED Driver

Constant current design

Universal AC input / Full range (up to 285VAC

Built-in active PFC function

High efficiency up to 92%

Protections: Short circuit / Over voltage / Over temperature

Cooling by free air convection

Output current adjustable through output cable or internal potentiometer

IP44 / IP67 design for indoor or outdoor installations

Three in one dimming function (1~10Vdc or PWM signal or resistance)

Suitable for dry / damp /wet location

3 years warranty

Quick Detail:

High PF NO Flicker Driver
Modle No.	PTS-P40W-300	PTS-P40W-600	PTS-P40W-1000
Output Voltage	90-120V DC	50-70V DC	30-42V DC
Output Current	300mA +/-5%	600mA +/-5%	1000mA +/-5%
Rated Load	30-40W	30-40W	30-40W
Input Voltage	100-260VAC 50/60Hz
Conversion Efficiency	≥90%
Power factor	PF>0.95
Dimension	L138xW35xH26mm
Working temperature	-40°C ~+70°C
Temperature Rise	≤30°C
Storage temperature	-30~80°C
IP code	IP44 or IP65

About US

NINGBO PTS ELECTRIC TECHNOLOGY company is strong in LED lighting Area.

We have all parts manufactory and creat a big advantage in production cost.

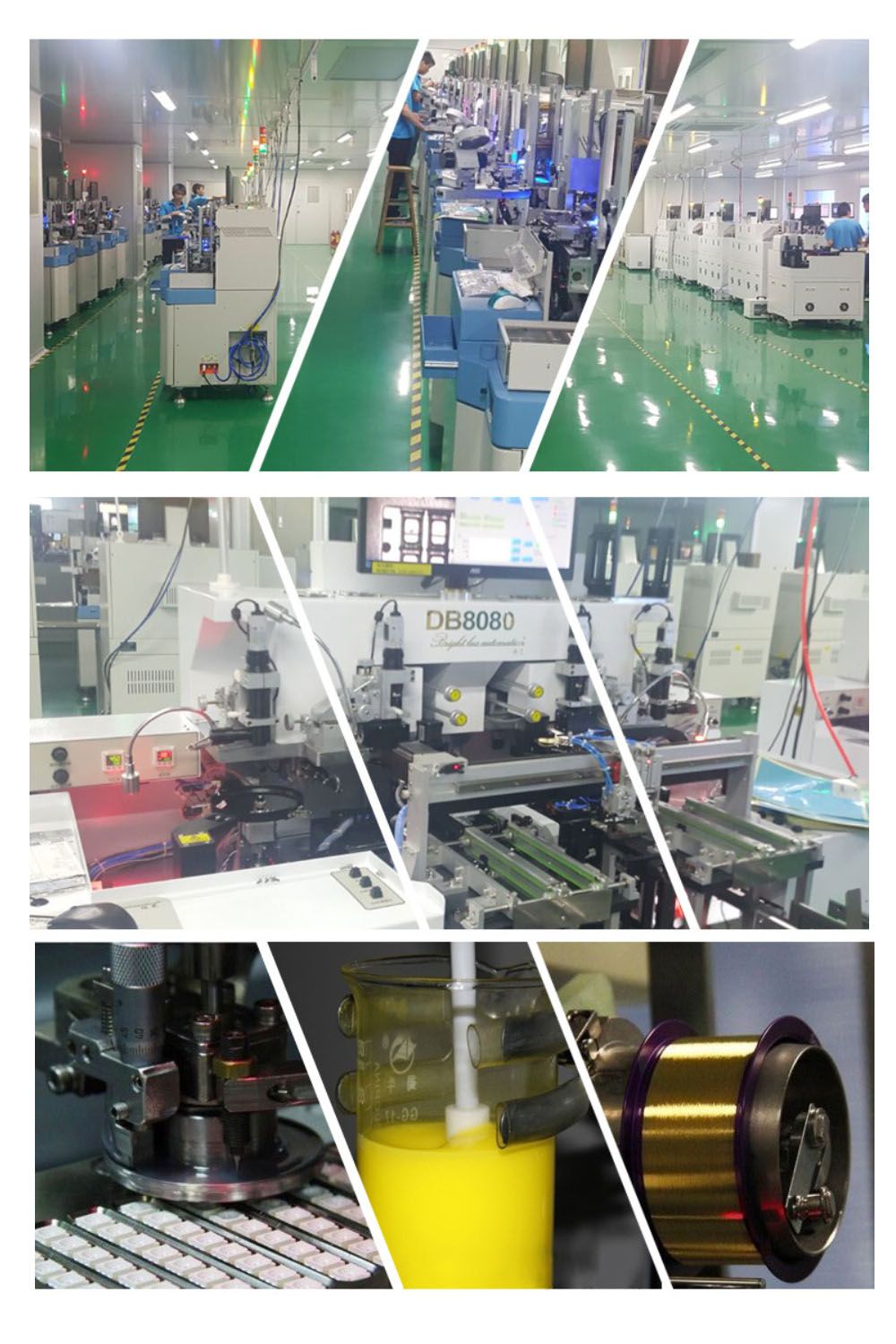

Our manufactories contains:

LED SMD Component

LED Driver

LED Housing body

LED PCB Board

Assembling manufactory part.

Based on all parts produced by ourselvies. We are strong in this LED lighting Area.

From 2014, 2015 and 2016, we are continue developping smart lighting products.

We have patents for our LED Driver and LED sensor products.

In future, we would have more sensor lighting product and WiFi products.

Based on same quality and request, PTS have lower price than others. We are sure.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
