| Prod Model: |
PCB-XJY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
0.21mm to 7.0mm |
| Layer: |
1 to 28 Layers |
| Meterial Type: |
Fr-4,Cem-1,High Tg,Fr4 Halogen Free,Rogers |
| Structure: |
Multilayer Rigid PCB |
| Production Process: |
Subtractive Process |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Insulation Materials: |
Fr-4 |
| Brand: |
Xjy-PCB |
Product Description

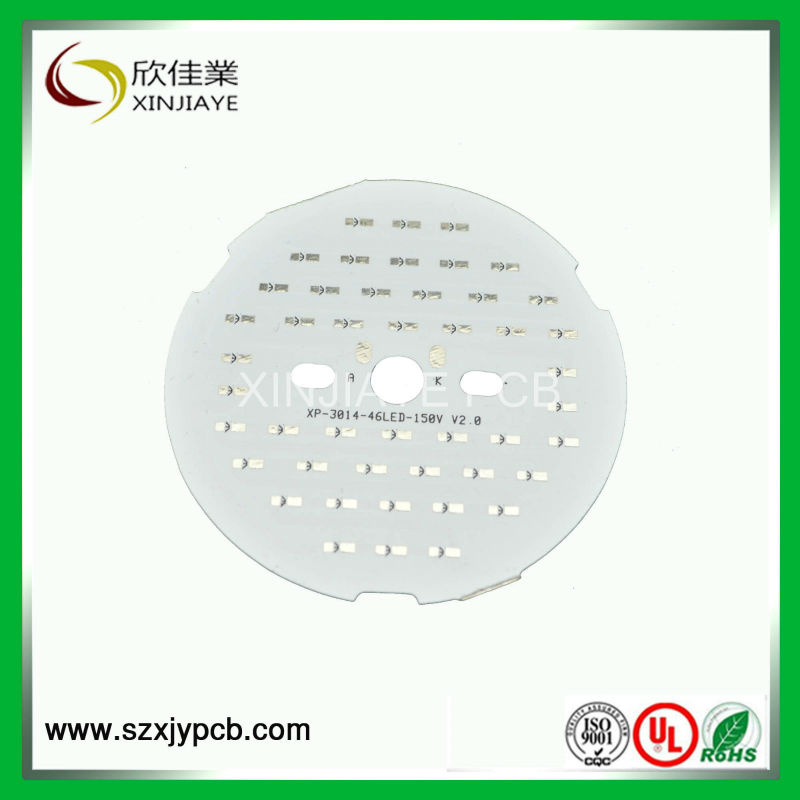

Copper PCB FR4 PCB, Flexible PCB, PCB board for LED, computer,Machine
Quick DetailsYT
Place of Origin: |
Guangdong China (Mainland) |
Brand Name: | XJY PCB | Model Number: |
XJY-01 |
Base Material: |
FR4 |
Copper Thickness: |
0.5 OZ to 7.0 OZ |
Board Thickness: |
1.60mm |
Min. Hole Size: |
0.075mm(3 mil) |
Min. Line Width: |
0.075mm(3 mil) |
Min. Line Spacing: |
0.075mm(3 mil) |
Surface Finishing:Y |
Immersion Gold & Immersion Gold |
Packaging & Delivery
Packaging Detail: | vacuum package |
| Delivery Detail: | 10~20days |
Specifications
Double sided PCB board for tablets comes with 1.6mm board thickness and immersion gold surface finish, ONE piece order accepted.
Currently, the use of the tablets is common as the cellphones but the large screen function is more popular. Tablet producers need more stable and long lifespan printed circuit board to support the large screen.
Here is the smart choice for you, double sided PCB board for tablets comes with 1.6mm board thickness and immersion gold surface finish, ONE piece order accepted.
Specification
Layers: 2L
Material: FR4
Board Thickness: 1.60mm
Surface Finish: HASL lead free
Surface Finish : Immersion Gold
Min Line Width : 0.075mm(3 mil)
Min Line Space : 0.075mm(3 mil)
Special Requirements : Board Thickness 0.40mm+/-0.05mm
Application
XINJIAYE PCB offers OEM service for this type PCB board, which can be used for a wide range of Tablet sets.
Our Production Capability for PCB :
Layer |
1 to 28 layers |
Material type |
FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers |
Board thickness |
0.21mm to 7.0mm |
Copper thickness |
0.5 OZ to 7.0 OZ |
Copper thickness in hole |
>25.0 um (>1mil) |
Size |
Max. Board Size: 23 × 25 (580mm×900mm) |
Min. Drilled Hole Size: 3mil (0.075mm) |
Min. Line Width: 3mil (0.075mm) |
Min. Line Spacing: 3mil (0.075mm) |
Surface finishing |
HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating |
Tolerance
|
Shape tolerance: ±0.13 |
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 |
Certificate |
UL, ISO 9001, ISO 14001 |
Special requirements |
Buried and blind vias+controlled impedance +BGA |
Profiling |
Punching, Routing, V-CUT, Beveling |
Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products. |
Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.
XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.
8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.
Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.
We are servicing our customers all over the world and gain their testimonials.
Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.
In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!
XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
