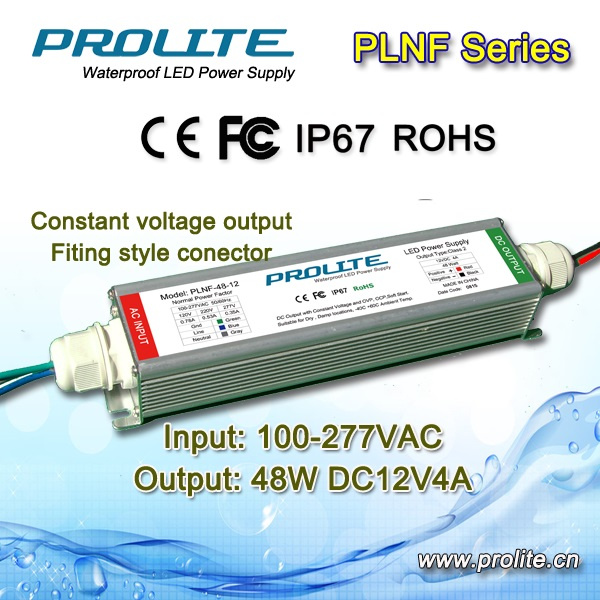

LED Power Supply Plnf-48W

Prod Model:	PLNF-48W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer

Product Description

1.Features:
·         Universal AC input / Full range (up to 295VAC)
·         Protections: Short circuit / Overload / Over voltage / Over temperature
·         Fitting style connector design, easy to connect with Junction box
·         Constant voltage Output
·         High efficiency up to 85%
·         Aluminum case and silicone potted
·         IP67 design for indoor or outdoor installations
·         Cooling by free air convection
·         100% full load burn-in test
·         High reliability
·         Meet CE/EMC/RoHS/UL certificate
·         Compliance to worldwide safety regulations for lighting
·         Suitable for LED lighting/Channel LED and Sign applications
·         Suitable for dry / damp / wet locations
·         Size: 190×48×3mm(Main body),210×48×35(With Mounting)

2.Environmental Specs:
·          Operating temperature: -30 to ~+70 oC
·          Storage Temp/Humidity: -40 to 80 oC, 10~95% RH
·          Working Humidity: 20 ~ 95% RH non-condensing
·          Temp. Coefficient: +/-0.03%/oC (0~50oC)

3.Electrical Specification:

Output Voltage (VDC)	Output Current (A)	Max.Output Watts(W)	Input Voltage(VAC,Hz)	Efficiency	MODEL
12	0-5	60	90-305VAC 47-63Hz	85%	PLNF-60-12
24	0-2.5			86%	PLNF-60-24
36	0-1.67			87%	PLNF-60-36
48	0-1.25			88%	PLNF-60-48

Note: if you have any other requirement on product, please contact with us directly.
