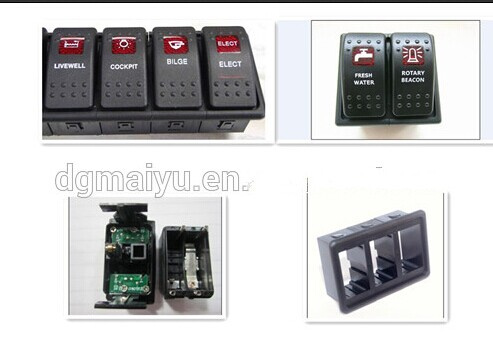

LED Rocker Switch Panel with Circuit Breakermarine/Boat Switch Panel

Prod Model:	Rocker Switch panel-173
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Maiyu
Max. Current:	20A
Max. Voltages:	24V
Cover Dimesion:	36.8*21mm
Hxwxd:	42X24X40mm
Certifications:	RoHS, CE
Rating Current:	12V
Feature:	Waterproof Rotary Switch
Function:	on-off,on-off-on
Cover Thickness:	Between 1/16'' and 1/4''
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Certification:	CE
Condition:	New
Color:	Red,Green,Blue,Orange,Gray,Grey,White,Yellow

Product Description

Product Description


Specifications

Car Laser Rocker Switches
1.Single pole single throw ON-OFF,ON-OFF-ON ,Momentary Switch
2.Approval: ROHS, CE
3.High quality



  12V/24V Momentary Car/Marine Dual Led light Laser etched Rocker Switches with 3,5Pin
1.Single pole single throw ON-OFF,ON-OFF-ON,Momentary Switch
2.Compressor Legend
3. High quality and competitive price
This high quality 12 volt Rocker switch it is a single throw ON - OFF switch designed to operate your 12 volt driving lights. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''. This is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

Packaging & Delivery

Packaging Details:	50pcs in a box, normal carton
Delivery Detail:	7-14days after confirm payment


.
Car Boat Offroad 12V 20A 24V Bar Rocker Toggle Switch 3 Pin Red LED Lights

Descriptions :

ON - OFF switch

Black hard surface rocker.

Rate: 20A 12V or 10A 24V

Color: Black

Size (L x W x T): 50 x 44 x 20 mm

You are bidding on one brand new Rocker Switch On/Off 20 Amp 12 Volt with Orange Light.

This switch has many different uses. It is commonly used for off road and marine vehicles.



Single Pole Single Throw ON - OFF,ON-OFF-ON switch
Black hard surface rocker.
Laser etched ROOF LIGHTSLegend
Single upper  light.
Single lower  light.
Upper light is ON when the switch is pressed UP.
Lower light can be wired to separate dash light circuit.
Same size as the ARB switches.
Rated 20A 12V.
This switch uses the same light configuration as the ARB switches.
No rear barriers between terminals.
Wiring diagram supplied with switch.
Switch cut out size 0.83'' x 1.45''.
Panel thickness between 1/16'' and 1/4''

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.




About us

1. Our company with more than 10 years experience for exporting ,

 We have professional work team for Car , Marine boat Laser engraving rocker switches , rocker switches panel ,12V/24V car ,boat power socket . our price is competitive as compared with the international market .

2. If you have interest of our products , please feel free to contact us !

3. Hope we can have a business relationship in the future.
