| Prod Model: |
LYD-17A |
| Working Temperature: |
-10-60 |
| Storage Temprature: |
-20-85 |
| Material: |
Aluminium |
| Gross Weight: |
1.07kg |
| Output Type: |
Single |
| Output Power: |
301 - 400W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
RoHS |

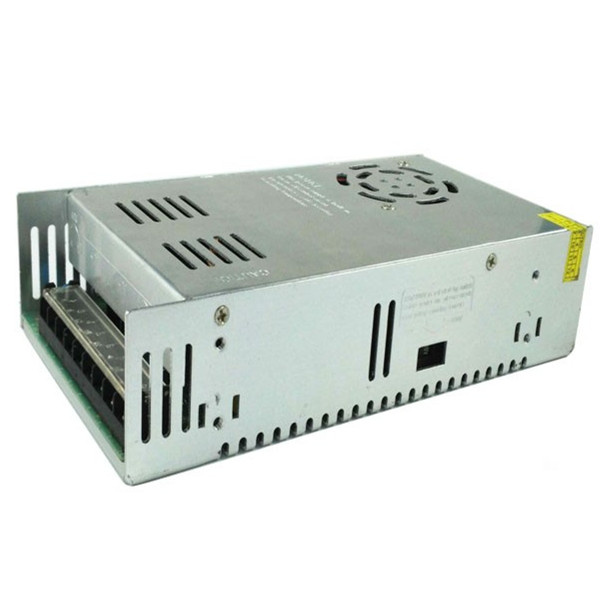

Product Description
Basic Info| place of origin: | Shenzhen,China | brand name: | louita | model no.: | LYD-17A |
| gross weight: | 1.07kg | dimension: | 214X113X50mm | output frequency: | 47-63HZ |
| material: | Aluminium | output type: | single | | |
Product Description:
Features:1) High efficiency, low operation temperature .
2) Built-in EMI filter
3) 100% full load burn-in test
4) Protection: Overload, short circuit
5) Competitive price, high reliability
6) Output: 12V, 15V, 24V,36V, 48V
7) Input: 110/220VAC, change by switch
8) Storage temperature / humidity: 0 - 50° C / 100%, -10° C / 80%, 60° C / 60%, 20% - 90% RH
9) Dimensions: 215 x 115 x 50mm
10) CE, RoHS certified
| MODEL | S-400-12 | S-400-15 | S-400-24 | S-400-36 |
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 36V |
| RATED CURRENT | 33A | 27A | 17A | 11A |
| RATED POWER | 396W | 405W | 408W | 396W |
| RIPPLE&NOISE | 180mVp-p | 180mVp-p | 180mVp-p | 240mVp-p |
| VOLTAGE ADJ.RANGE | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V | 32.4-39.6V |
| VOLTAGE TOLERANCE | 1.0% | 1.0% | 1.0% | 1.0% |
| LINE REGULATION | 0.5% | 0.5% | 0.5% | 0.5% |
| LOAD REGULATION | 1.0% | 0.5% | 0.5% | 0.5% |
| SETUP,RISE TIME | 300ms,50ms/230VAC 800ms,50ms/115VAC at full load |
| HOLD UP TIME(TYP.) | 90ms/230VAC 12ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 85-264VAC 120-370VDC |
| FREQUENCY RANGE | 47-63HZ |
| EFFICIENCY(Typ.) | 74% | 78% | 81% | 83% |
| AC CURRENT(Typ.) | 5.6A/115V 2.8A/230VAC |
| INRUSH CURRENT | COLD START 25A/115VAC 50A/230V |
| LEAKAGE CURRENT | 3.5mA/240VAC |
| PROTECTION | OVERLOAD | 105-150% RATED OUTPUT POWER |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| OVER VOLTAGE | 115-135% RATED OUTPUT VOLTAGE |
| Protection type:Hiccup mode,recovers automatically after fault condition |
| ENVIRONMENT | WORKING TEMP | -10~+60C |
| WORKING HUMIDITY | 20-90%RH non-condesing |
| STORAGE TEMP,HUMIDITY | -20~+85C,10-95%RH |
| TEMP.COEFFICIENT | 0.03%C(0-50C) |
| VIBRATION | 10-500HZ |
| SAFETY&EMC | SAFETY STANDARD | CE RoHS |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute |
| ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25C/70%RH |
| EMI CONDUCTION&RADIATION | Design refer to GB4943,UL60950,EN60950 |
| EMC STANDARD | Design refer to GB9254,EN55022 Class A |
| DIMENSION | L214*W113*H50mm |
| PACKING | 1.2kg,16pcs/19.2kg |
Product Applications • Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
