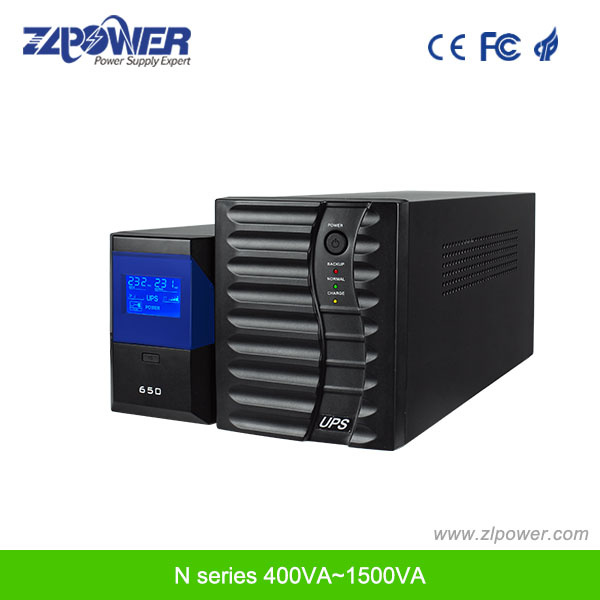

Name: LED UPS-Small UPS-Offline UPS-Standby Offline UPS-Line Interractive UPS 400va-1500va
Brand: all-electronics-online.com
SKU: 678441515
Availability: InStock
Rating: 4.7 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	N400~N1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single Phase
Type:	Standby
Protection:	Short Circuit

Product Description

LED UPS-Small UPS-Offline UPS-Standby Offline UPS-Line Interractive UPS 400VA-1500VA
Product Features

IP/OP: 110/220VAC 50/60Hz
IP/OP: 110/220VAC 50/60Hz

KEY FEATURES
Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Function & Characteristic:
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
APPLICATION
Home, computer, printer, POS, Comouter Peripherals

Product performance

TECHNICAL SPECIFICATION
MODEL N400 N500 N650 N800 N1000 N1200 N1500
Nominal Capacity 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Input Voltage Range 145~280VAC/ 80VAC-150VAC
Frequency 50/60Hz
Output Voltage Range 220VAC/120VAC ± 10%
Frequency 50Hz/60Hz ± 5%
Output Waveform Square Wave
Transfer time < 10ms
Battery Type Sealed free maintenance lead acid battery
Capacity 12V, 4AH *1PCS 12V, 7AH *1PCS 12V, 7AH *1PCS 12V, 9AH *1PCS 12V, 7AH *2PCS 12V, 9AH *2PCS 12V, 9AH *2PCS
Recharge Time 8 hrs to 90% of capacity full load discharge
Protection Auto protect
Back-up time( Full load ) 3~5 min 5~7 min 7~10 min 6~8 min 5~7 min 8~10 min 10-12min
Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload
dB-9 port, communication software Optional RS232, RJ11, RJ45, USB
Protection AC mode Fuse
Short circuit AC Fuse
Invert mode Auto protect
Alarm Alarm Battery discharge Alarm beeps every four seconds
Low battery voltage Alarm beeps every second
Overload Alarm beeps continuously
Indicator light Auto adjust Green lighting: AC mode
Battery Discharge Red lighting: Battery mode
Environment Operating temperature 0C~40C
Operating Humidity 0-90% non-condensing
Noise <35dB(1 meter distance)
UPS Dimension(L× W× H)mm 325*90*150 335*100*150 345*125*190
Net weight (N. W) 4.5KG 6.5KG 6.8KG 7.5KG 11KG 12KG 13KG
Gross weight (G. W) 4.7KG 6.7KG 7KG 7.7KG 11.3KG 12.3KG 13.3KG

MODEL			N400	N500	N650	N800	N1000	N1200	N1500
Nominal Capacity			400VA/240W	500VA/300W	650VA/390W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/900W
Input	Voltage Range		145~280VAC/ 80VAC-150VAC
	Frequency		50/60Hz
Output	Voltage Range		220VAC/120VAC ± 10%
	Frequency		50Hz/60Hz ± 5%
Output Waveform			Square Wave
Transfer time			< 10ms
Battery	Type		Sealed free maintenance lead acid battery
	Capacity		12V, 4AH *1PCS	12V, 7AH *1PCS	12V, 7AH *1PCS	12V, 9AH *1PCS	12V, 7AH *2PCS	12V, 9AH *2PCS	12V, 9AH *2PCS
	Recharge Time		8 hrs to 90% of capacity full load discharge
	Protection		Auto protect
	Back-up time( Full load )		3~5 min	5~7 min	7~10 min	6~8 min	5~7 min	8~10 min	10-12min
Function			Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port, communication software			Optional RS232, RJ11, RJ45, USB
Protection	AC mode		Fuse
	Short circuit	AC	Fuse
		Invert mode	Auto protect
Alarm	Alarm	Battery discharge	Alarm beeps every four seconds
		Low battery voltage	Alarm beeps every second
		Overload	Alarm beeps continuously
	Indicator light	Auto adjust	Green lighting: AC mode
		Battery Discharge	Red lighting: Battery mode
Environment	Operating temperature		0C~40C
	Operating Humidity		0-90% non-condensing
	Noise		< 35dB(1 meter distance
UPS Dimension(L× W× H)mm			32590150	335100150			345125190
Net weight (N. W)			4.5KG	6.5KG	6.8KG	7.5KG	11KG	12KG	13KG
Gross weight (G. W)			4.7KG	6.7KG	7KG	7.7KG	11.3KG	12.3KG	13.3KG

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
