| Prod Model: |
Global gps tracker tk103B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Car Security Tracking Function: |
Engine Cut, Fuel Monitor, Acc/Door Alarm |
| Map: |
Real Time Google Map |
| Tracking: |
by SMS or GPRS |
| Arm/Disarm Alarms: |
Acc/Door/Shock Sensor Alarm |
| Warranty Time: |
12 Months |
| Packaging: |
50 Unit /Carton in Standard Color Box |
| Main Alarms: |
Geofence, Sos, Speed, Engine Cut, Fuel Monitor |
| Remote Controller Frequency: |
433 MHz |
| GPRS Web Tracking Platform: |
Www.Gpstrackerxy.COM with Andorid Ios Apps |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Brand: |
Baanool Brand |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

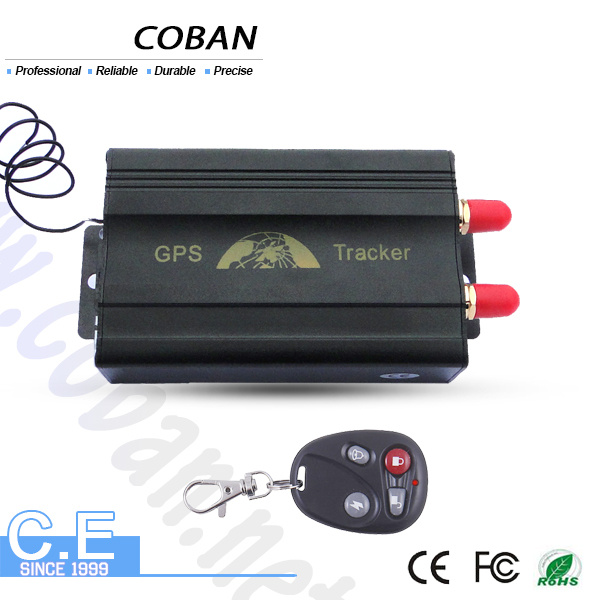

legal imei Global gps tracker tk103B for car Anti-theft with real time tracking
vehicle gps tracker TK103A functions and features1. Work worldwide use (850/900/1800/1900MHz)
2. Can accurately position even if with weak signal--LBS location
3. High-sensitivity, latest technology and the most advanced GPS chip
4. Tracking on demands or SMS commands
5. Tracking by time intervals
7.
Real time tracking via SMS or GPRS (TCP/UDP) 8. Show location directly on mobile phone with HTTP link
9. Five authorized phone numbers to protect tracker information and assets
10. Easy switch for track or Monitor
11. SOS button for emergency
Feature: 1)Support
ACC, Door and Shock sensor alarm 3)Reset inside GSM and GPS module by SMS and Reset button
4)"Arm" and "Disarm" by sending SMS
5)Support Silent Mode by SMS commands
6)SMS tracking on cell phone with Google maps link
7)Get accurate address including street name by SMS
8)Real time tracking
9)Android Ios app for live tracking
10)Web based online tracking server
11)Five mobile numbers can be authorized to device
12)Support GPS+LBS Positioning ways
Basic Functions: 1. ACC alarm, Door alarm and Shock sensor alarm at ARM state
2. Set up ARM and DISARM by Cell phone or remote controller
3. Anti-thief for 24 hours a day to protect the vehicle well
4. Emergency for help, SOS panic alarm
5. The internal GSM and GPS module can be reset by press reset button or SMS
6. Free PC Platform use free Google map, it is not necessary to pay any map charge
7. If enters places (underground park) without GPS, it will report the last position tracked
8. Send alert of over range/speed to the authorization phone when it go out the restricted area/exceeds the restricted speed
9.
Power or Oil cut off and resume/restore alarm by SMS GPRS 10. Show location directly on mobile phone with HTTP Google map link
11. Web based online tracking at our server
12. View target current location on map on the cell phone and PDA with maps links in the message from tracker
13.24 hours real-time SMS/GPRS tracking
14. Auto tracking continuously
15. Sending "address+password" to unit to get absolute street address
16. Support GPS+LBS double positioning ways
17. Set the local GPS time by SMS
18. Low battery alarm
19. Geo-fence
20. Movement alarm
21. Over speed alarm
Application Vehicle monitoring
Car positioning
Logistic monitoring
How to tracking ?The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;

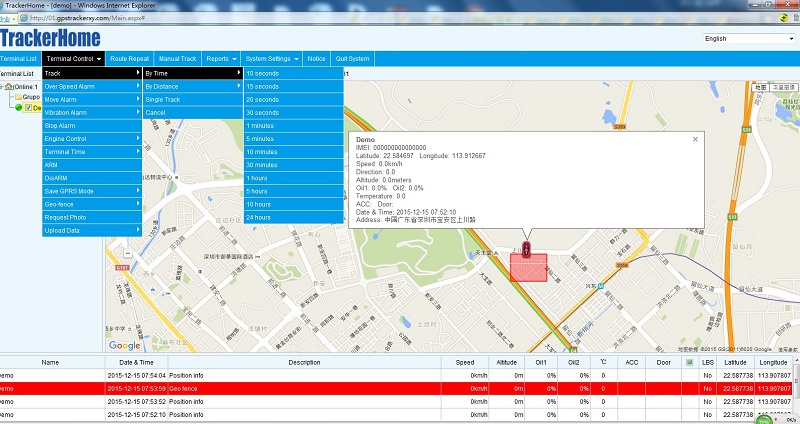

D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
car GPS Tracker Specification| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage of car power system | 12 V -24V
|
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |

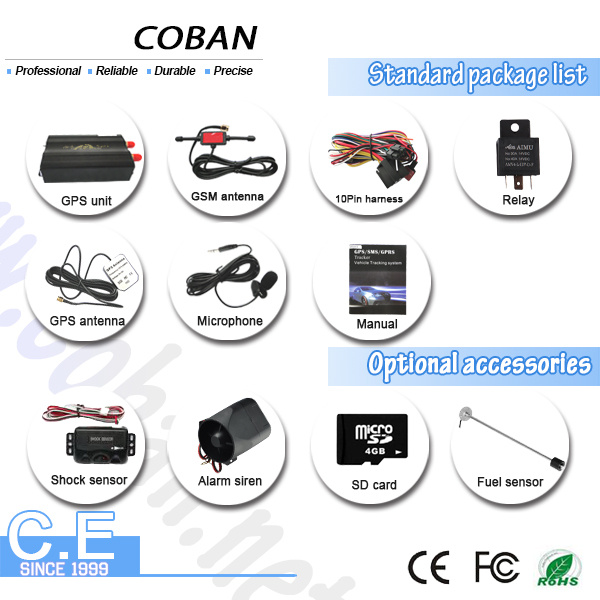

coban TK103A standard and optional accessories Standard accessories
GPS Unit
10 PIN harness
Relay for stopping engine
External GSM antenna
External GPS antenna
External microphone
Manual
package
Optional accessories
Shock sensor
alarm siren
Microsd memory card
Accident sensor
car gps tracker TK103 certificate
Company profile We Coban Electronics Co.,Ltd are GPS Tracker manufacturer in Shenzhen,China,with the
strength of technical team to develop our own platform&firmware,excellent production lines ,strict quality controllersetc,with pretty competitive price and first-class service
90% of products are exported.The main market are European and American countries ,then Asian-African-Latin countries .
As part of the company growth, we are now sincerely looking for reputable retailers and
wholesalers help us developing new overseas market.
Why Choose Us
-Professional enthusiastic marketing team
-Expinreced engineers
-Good after sale service
-Good quality with CE, FCC certificates
-Patent
-fast delivery in 2-3 days
-First manufacturer to use google map link in message
-FREE tracking software
-OEM/ODM service
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device
2.Customize box
3.Offer firmware modification service
4. Customize design in bulk order
Delivery
1.Mini order will be delivered within 1-3 working days after the receipt of payment.
2.For order over 500pcs or customized order, lead time will be 3-15 days after the receipt of payment. Please contact our sales to make sure the current inventory.
4.Shipment: Express (FedEx, DHL, UPS ,TNT,Post) or Air freight or by your forwarder
