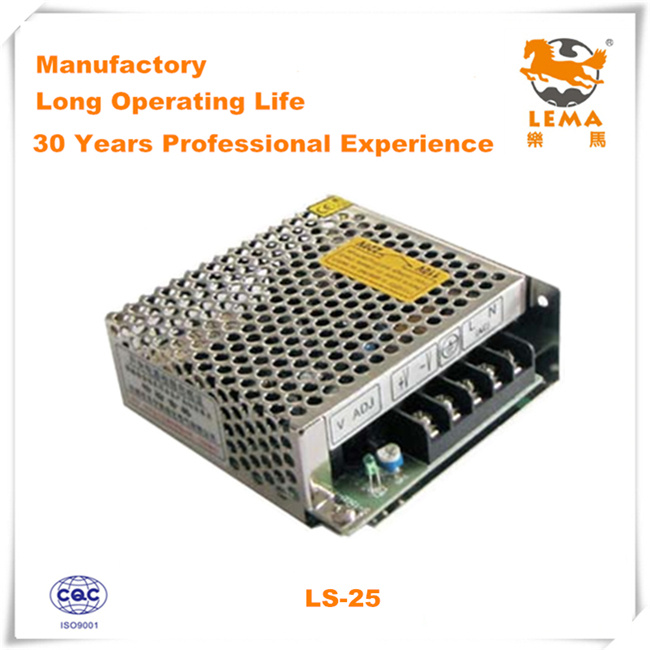

Lema Ls-25 Single Output Switching Power Supply

Prod Model:	Ls-25
Output DC V:	25W
Protection:	Over Load
Dimensions:	129*98*38
Trade Mark:	Lema
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Input Voltage:	90-132VAC/180AC-264vacby Switch,47-63Hz
Brand:	Lema

Product Description

LED Single Output Switching Power Adaptor

LS series single output switching power supply is an electronic power supply that incorporates a switching regulator in order to be highly efficient. Like other types of power supplies.

LS series single output switching power supply transfer's power from a source like the electrical power grid to a load (e. G., a personal computer) while converting voltage and current characteristics.

LS series single output switching power supply is usually employed to efficiently provide a regulated output voltage, typically at a level different from the input voltage.


Feature

1. High efficiency, high reliability

2. AC input 110VAC, 220VAC select by switch

3.100% full load burn-in test

4. Protections: Short circuit/Over load

5. Cooling by free air convention

6. Fixed switching frequency at 37KHz


Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 centigrade degree of ambient temperature.

2. Ripple &noise are measured at 20MHz of bandwidth by using a 12'' twisted pair-wire terminated with a 0.1& 47 parallel capacitor.

3. Tolerance: Includes set up tolerance, line regulation and load regulation.

Model		LS-25-5		LS-25-12			LS-25-15		LS-15-24
Output	DC Voltage	5V		12V			15V		24V
	Voltage Tolerance	± 2%		± 1%			± 1%		± 1%
	Rated Current	5A		2.1A			1.7A		1.1A
	Current Range	0-5A		0-2.1A			0-1.7A		0-1.1A
	Rated Power	25W		25.2W			25.5W		26.4W
	Ripple & Noise	50mVp-p		100mVp-p			100mVp-p		100mVp-p
	DC Adjustment Range	-5%,+10%		± 10%			± 10%		± 10%
	Setup, Rise, Hold Time	800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC at full load
Input	Voltage Range	85-132VAC/170-264VAC 47-63Hz; Selected by switch 120-370VDC
	AC Current	0.6A/115V 0.35A/230V
	Efficiency	72%/115VAC	76%/115VAC			77%/115VAC		80%/115VAC
	Inrush Current	Cold start 15A/115VAC 30A/230VAC
	Leakage Current	Less than 0.75 mA/240VAC
Protection	Over Load	110%-160%
		Protection type: Fold back current limiting, recovers automatically after fault condition is removed
	Over Voltage	115%-135%
		Protection type: hiccup mode, recovers automatically after condition is removed.
Environment	Working Temp., Humidity	-10  ° C- +60  ° C; 20%-90% RH
	Storage Temp., Humidity	-20  ° C- +85  ° C;10%-95 RH
	Vibration	10-500Hz,2G 10min./1cycle, period for 60 min, X, Y, Z each along axes
Safety	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard	Safety Standard	Design refer to UL1012, TUV EN60950
	EMC Standard	Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5 ENV50204, EN55024
Others	Weight	0.39Kg
	Dimensions	99*97*36mm(L*W*H)

FAQ:
Q1--What is your MOQ?
In general, our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time?
3-7 days for samples; 10-30 days for batch goods.
Q3--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

More information of our products, please do feel free to contact us.
Reply will be available within 24 hours. Thanks!
