Length 40mm 0.9 Degree 1.3A 2 Phase NEMA17 Stepper Motor, Cheap Stepper Motor, 42hm4013

Name: Length 40mm 0.9 Degree 1.3A 2 Phase NEMA17 Stepper Motor, Cheap Stepper Motor, 42hm4013
Brand: all-electronics-online.com
SKU: 838032305
Availability: InStock
Rating: 4.7 (111 reviews)

Price:	US $ 5-9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	42HM4013
Current:	1.3A
Holding Torque:	3.6kg.Cm
Step Angle:	0.9 Degree
Rated Volage:	3.25V
Resistance/Phase:	2.5Ω
Inductance/Phase:	6.2mh
No Of Leads:	4
Rotor Inertia:	54G.Cm2
Weight:	0.28kg
Detent Torque:	180g.Cm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	2 Phase
Type:	Stepper Motor
Certification:	Ce
Brand:	Sjie

Product Description

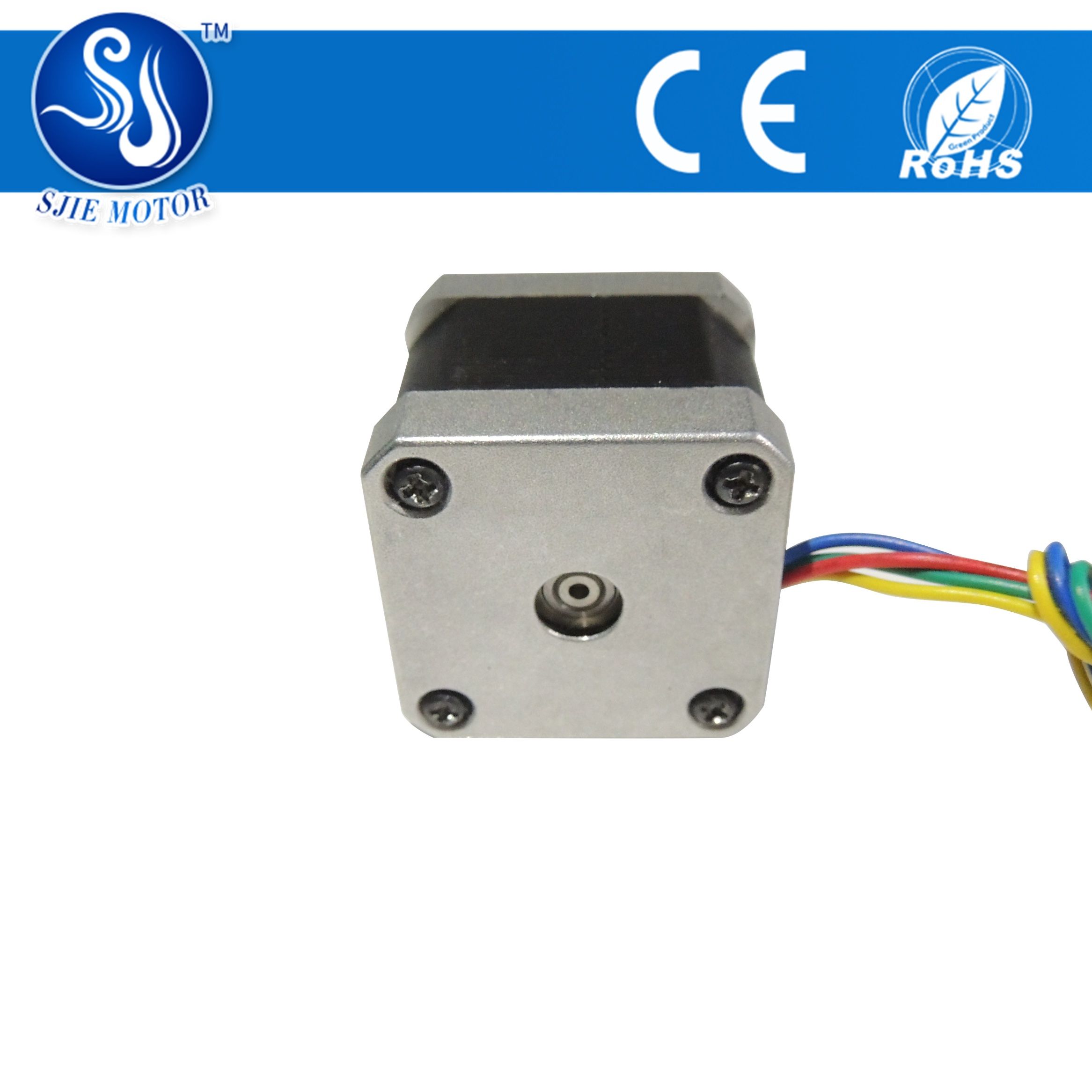

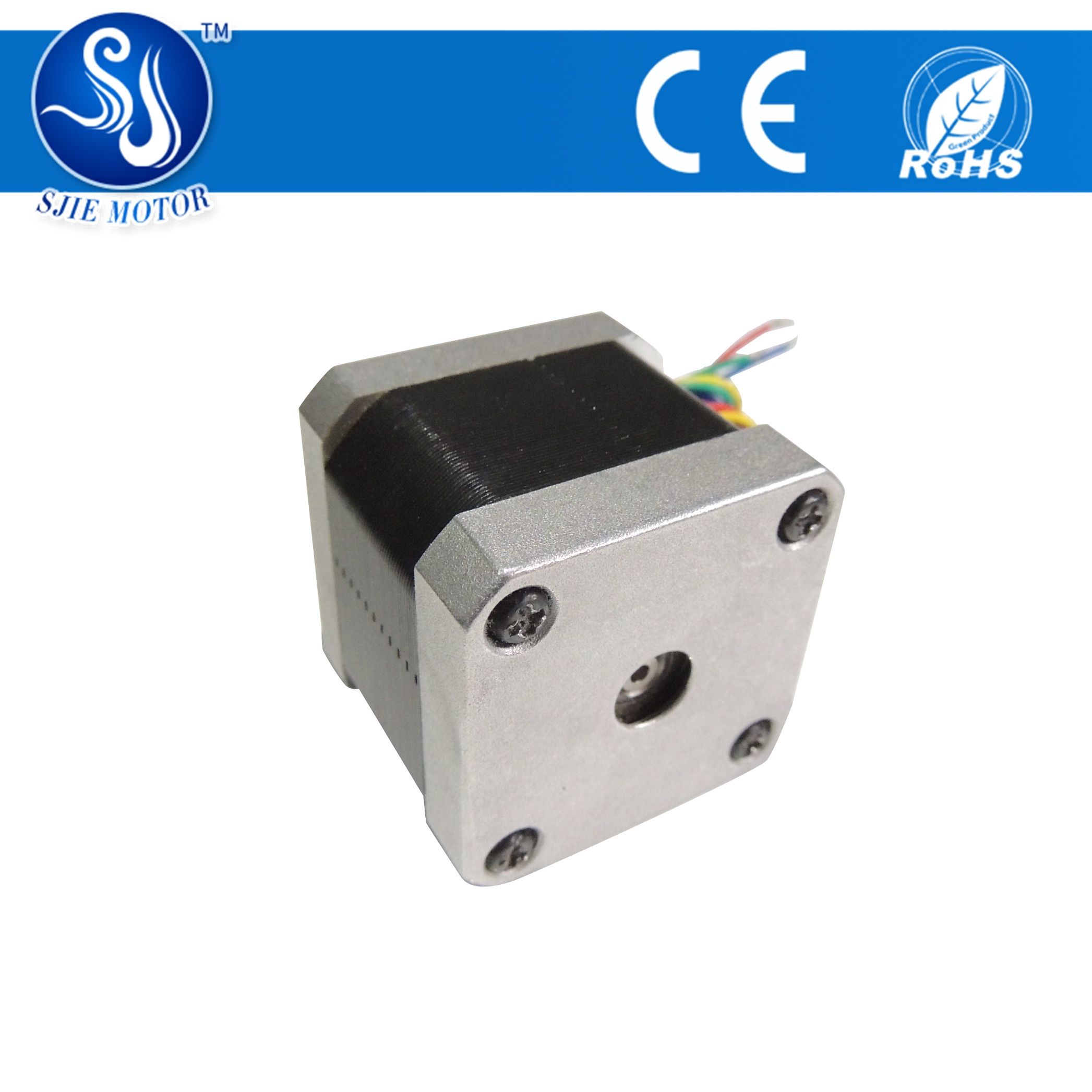

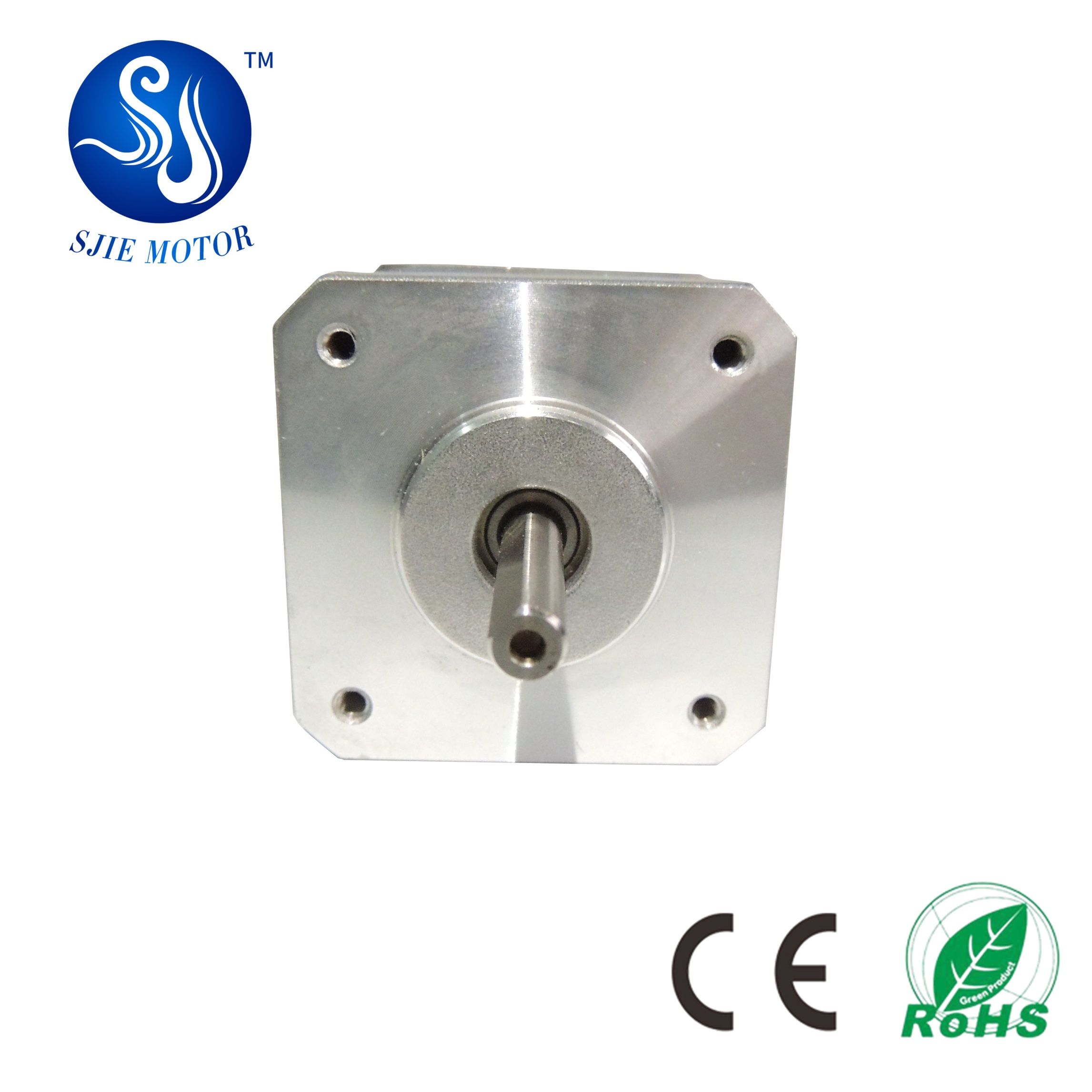

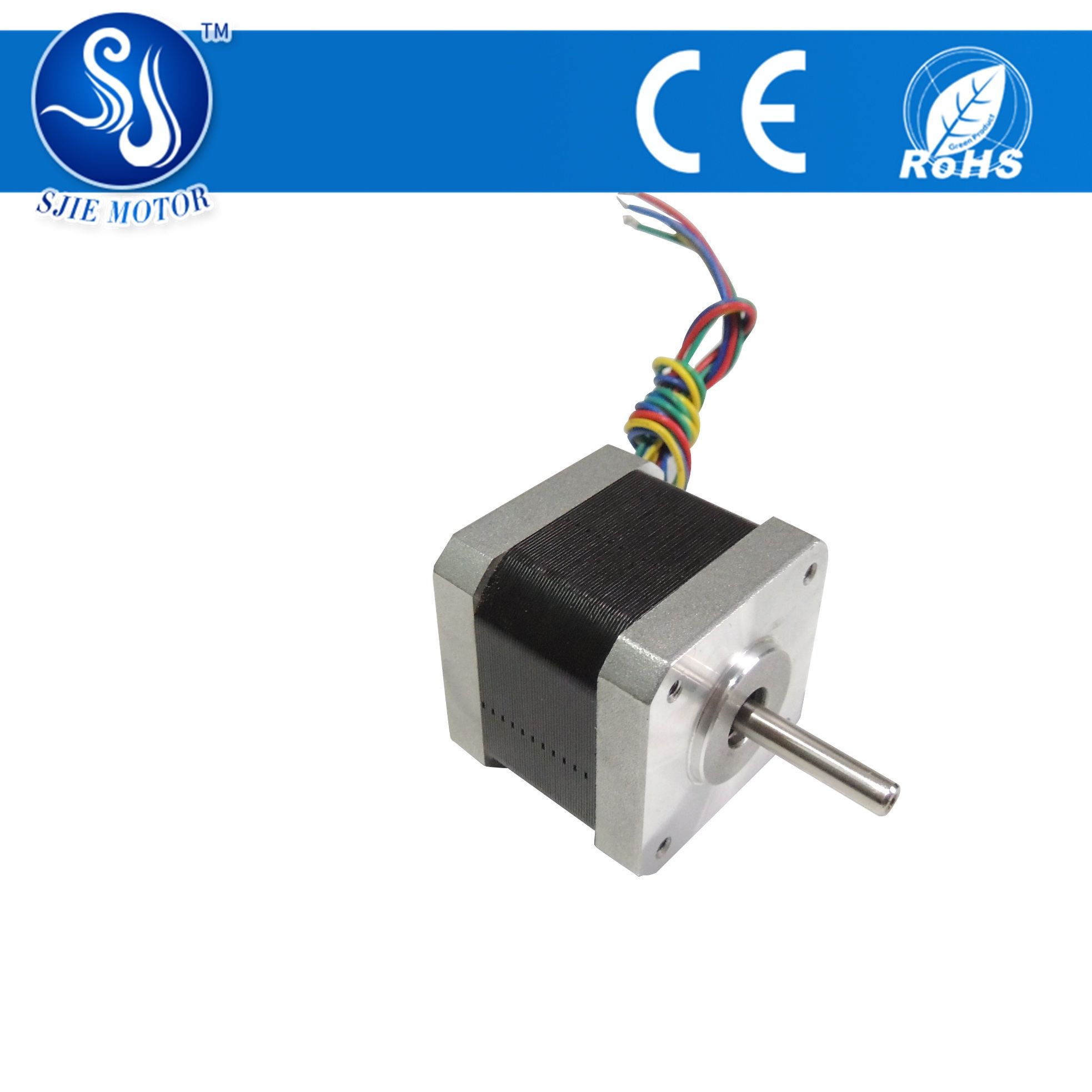

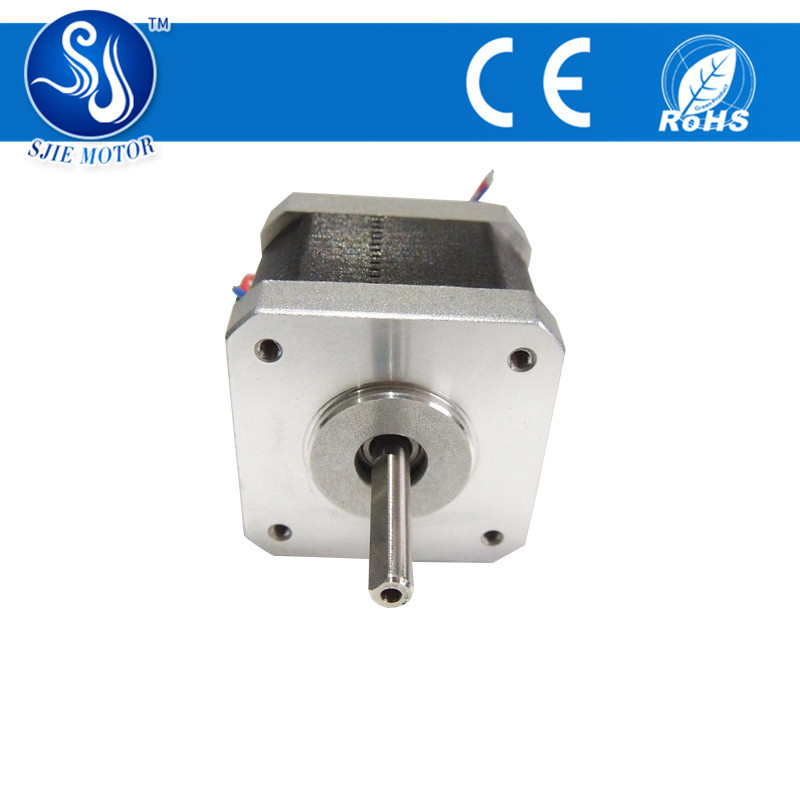

Product Photos:

1.8degree Size 40mm High Torque Hybrid stepper motor.

40mm size stepper motor,

NEMA42stepping motor,

2 phase 40mm stepper motor

Stepper motor 40mm size

Hybrid Stepper Motors

1) We can develop customer design version

Specifications:

Item	Specification
Temperature Rise	80°C Max
Insulation Resistance	100MΩ Min., 500VDC
Step Angle Accuracy	±5%(full step, no load)
Resistance Accuracy	±10%
Amibent Temperature	-20°C~+50°C
Inductance Accuracy	±20%
Dielectric Strength	500VAC for one minute

Electrical Specific
Electrical Specific
Series	Step	Motor	Rated	Phase	Phase	Holding	Detent	Rotor	Lead	Motor
Model	Angle Length	Current	Current	Resistance	Inductance	Torque	Torque	Inertia	Wire	Weight
	(° )	(mm)	(A)	(Ω)	(mH)	(kg.cm Min)	(g.cm Max)	(g.cm²)	(No.)	(g)
42HS1006	0.9	28	0.6	9	9	1	90	20	4	150
42HS1613	0.9	34	1.3	2.4	3.6	2	120	34	4	220
42HS1617	0.9	34	1.7	1.2	2.2	2	120	34	4	220
42HS1604	0.9	34	0.4	30	45	2	120	34	4	220
42HS1604-6	0.9	34	0.4	30	22	2	120	34	4	220
42HS2217	0.9	40	1.7	1.5	3.8	4	180	54	4	280
42HS2213	0.9	40	1.3	2.5	6.2	4	180	54	4	280
42HS2212	0.9	40	1.2	3.2	3.8	3	180	54	4	280
42HS2204	0.9	40	0.4	30	34	3	180	54	4	280
42HS3017	0.9	48	1.7	1.8	4.0	4	220	68	4	350
42HS3013	0.9	48	1.3	3.0	7.0	4	220	68	4	350
42HS3023	0.9	48	2.3	1.2	2.0	4	220	68	4	350
42HS3004	0.9	48	0.4	30	28	3	220	68	4	350
*Note:We can manufacture products according to customer's requirements.
