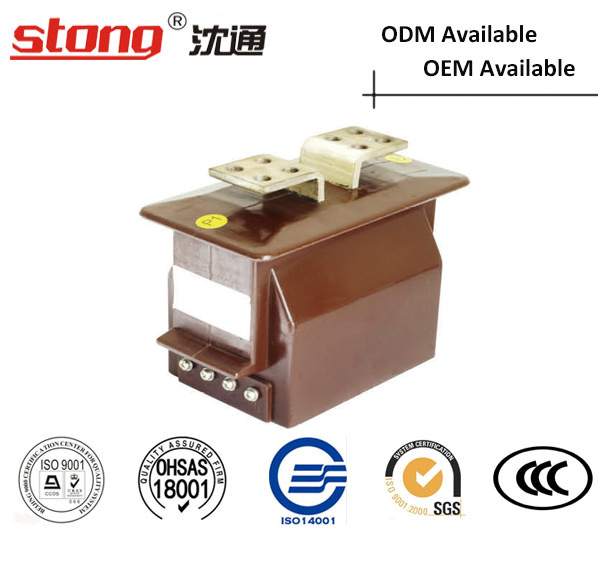

Lfs-10q CT Current Transformer Instrument Transformer
| Price: |
US $ 110/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LFS-10Q |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Three |
Product Description
Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling DirectlyDescriptionThe LFS-10Q high voltage low current transformer is epoxy resin casted with totally hermetically structure. The high voltage low current transformer is applicable to current and power measurement and relay protection in the indoor power system with rated voltage 10KV and below, rated frequency 50Hz, comply with GB1208 and IEC185 standards. ConstructionThe core, primary windings and secondary windings are totally enclosed in epoxy resin insulation, it has better insulating and moisture proof performance and could work under the circumstances of humidity, condensation and pollution II, with small size, light weight, also suitable for installation at any position and direction. Four M10 mounting holes are on the pedestal for installation. Technical Data1. Standard: GB1208 and IEC185
2. Rated insulation level: 12/42/75KV
3. Power factor of load: COSΦ=0.8 (lagging)
4. Rated secondary current: 5A or 1A
5. External creepage distance 230mm
6. Other technical parameters refer to the datum of the table| Rated primary current (A) | Accuracy class | COSΦ=0.8 Accuracy class and rated output | Short-time thermal current(KA/s) | Rated dynamic current(KA) |
| 0.2(S) | 0.5(S) | 10P10 |
| 5-200 | 0.2S/0.5
0.2S/10P10
0.5S/10P10 | 10 | 10 | 15 | 100IIn | 250Iin |
| 250 | 27 | 67.5 |
| 300 | 36 | 80 |
| 400 | 45 | 90 |
| 500-600 | 56 | 100 |
| 750-800 | 63 | 110 |
| 1000 | 80 | 130 |
Main Technical Parameters
