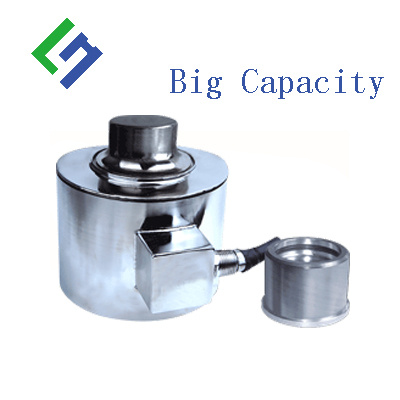

Lhb-1 Big Capacity Pressure Load Cell From 200t to 3000t

Name: Lhb-1 Big Capacity Pressure Load Cell From 200t to 3000t
Brand: all-electronics-online.com
SKU: 840262865
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	US $ 1270-16000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHB-1
Sensitivity:	2.00+/-0.005
Nonlinearity:	+/-0.03%Fs
Hysteresis:	+/-0.03%Fs
Repeatability:	+/-0.02%Fs
Out-Wire:	4 or 6 Wire
Output Signal Type:	Digital or Analog Type
Material:	Metal or Stainless Steel
IP Rating:	IP67 or IP68

Product Description

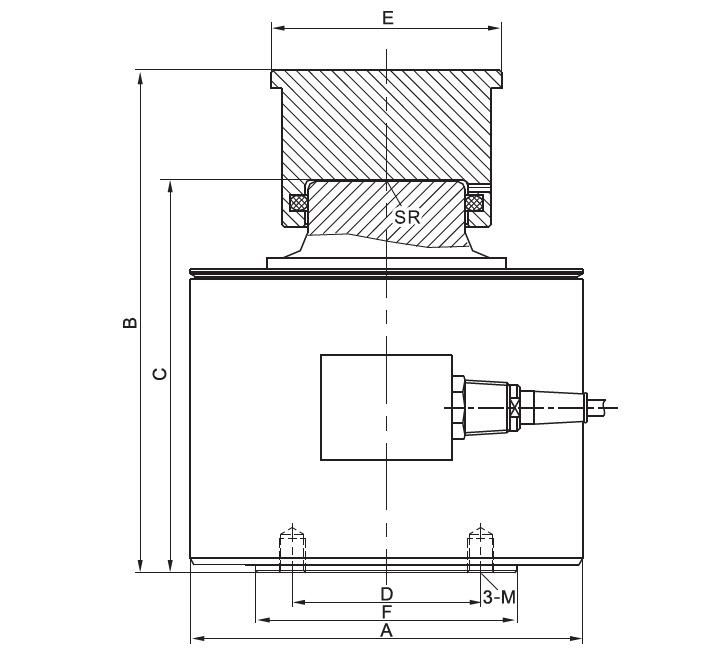

Capacity	Size mm
t	A	B	C	D	E	F	SR	M
200	150.0	190.0	150.0	72.0	88.0	100.0	600.0	M10
500	235.0	290.0	230.0	130.0	150.0	170.0	800.0	M16
700	265.0	330.0	260.0	160.0	168.0	200.0	1000.0	M18
1000	320.0	400.0	320.0	200.0	190.0	260.0	1500.0	M20
2000	470.0	750.0	600.0		430.0	438.0		M20.0

provide CUSTOMIZED service for more bigger capacity

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Specification

Capacity	200t~3000t
Rated output	2.00± 0.010mv/v
Nonlinearity	± 0.3%F. S
Hysteresis	± 0.3%F. S
Repeatability	± 0.01%F. S
Creep(30)	± 0.03%F. S
Zero balance	± 1%F. S
TCO	± 0.02%F. S /10º C
Input reistence	1165± 10Ω
Output resistence	1050± 5Ω
Insulation resistence	≥ 5000M
Operating tem range	-10~+50º C
Safe overloade	120%F. S
Recommend excitation	10v DC/AC
Material	Alloy steelor stainless steel

Exhibition Show

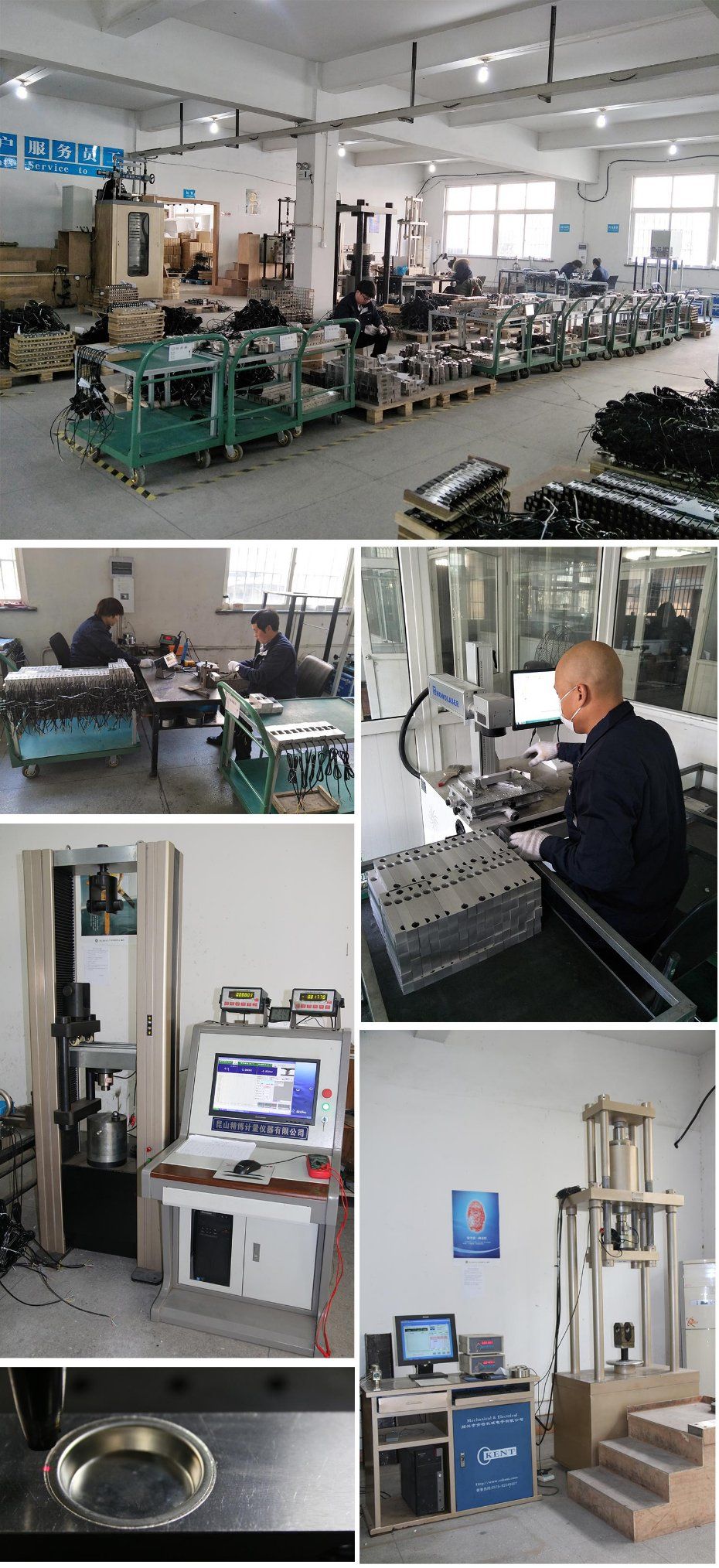

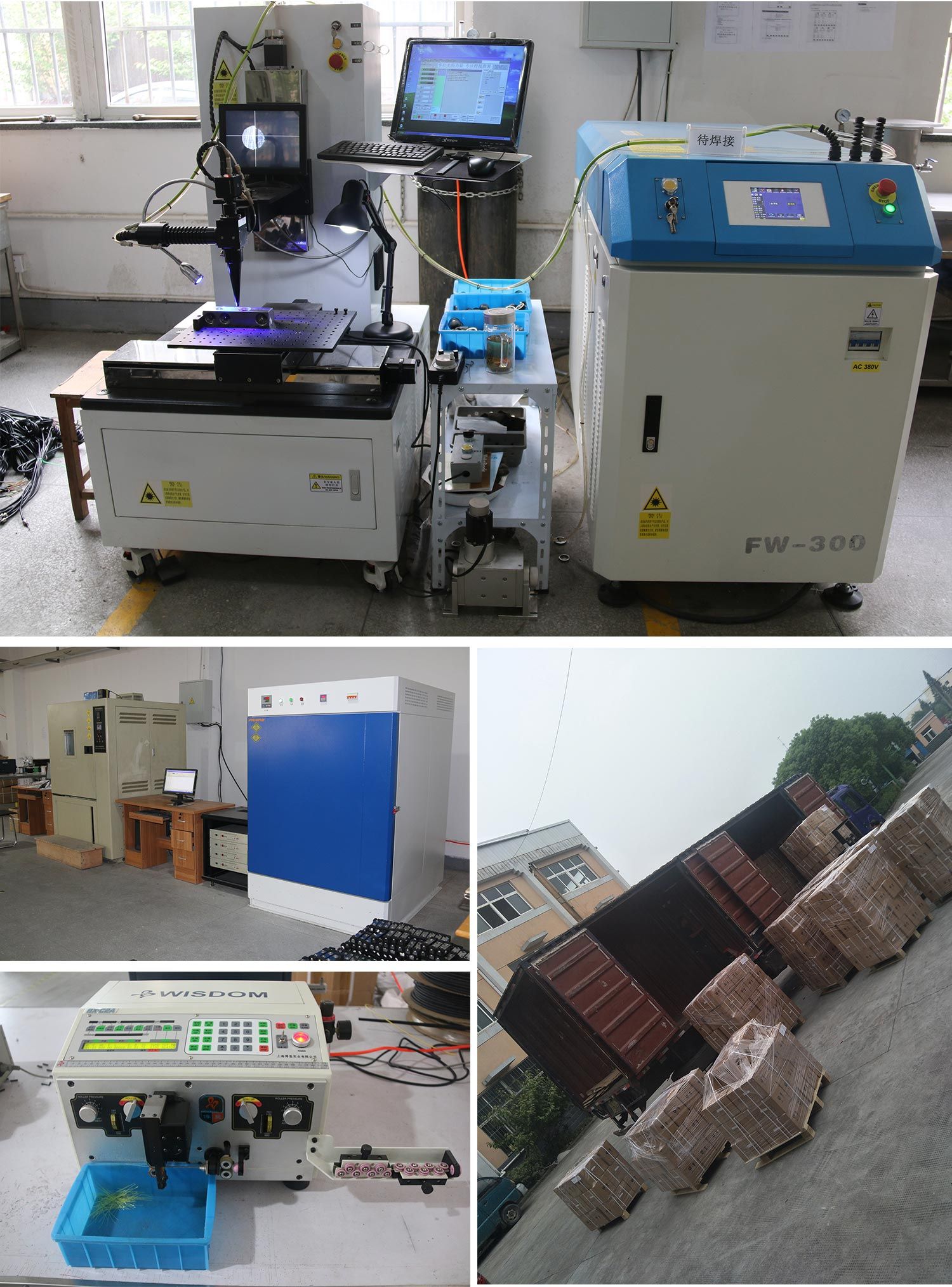

Company Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
