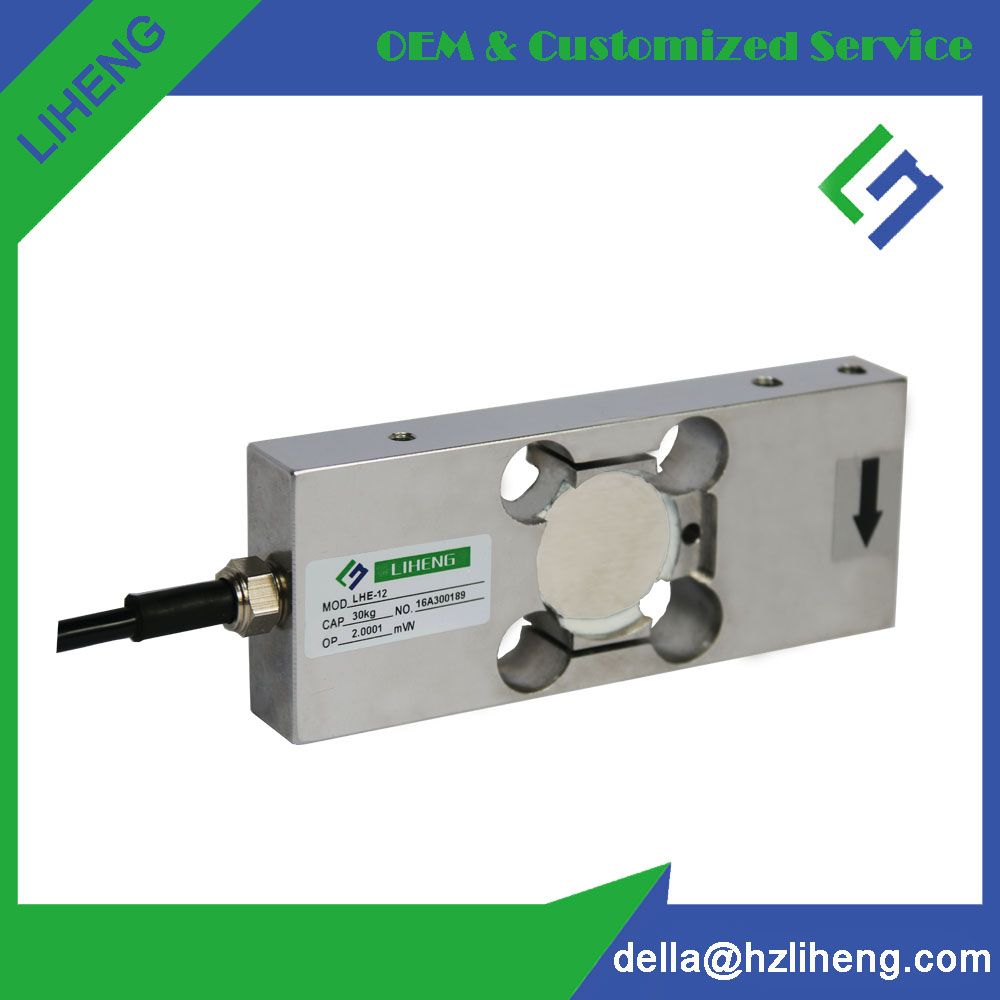

Lhe-12 Stainless Steel Single Point Load Cell

Name: Lhe-12 Stainless Steel Single Point Load Cell
Brand: all-electronics-online.com
SKU: 837766825
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	US $ 100-135/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHE-12
Sensitivity:	2+/-0.1
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Pattern:	Single Point

Product Description

Stainless steel load cell, triplicate beam welded structure.
Corner adjust before delivery to ensure consistent in stated load plane.
Simple to install, easy to use.
Suitable for small capacity electronic platform scales.

Specification
Rated Output	2±0.1	Input Resistance(Ω)	410±15
Nonlinearity	±0.02%FS	Output Resistance(Ω)	350±3
Hysteresis	±0.02%FS	Excitation Voltage	10V(DC/AC)
Repeatability	±0.01%FS	Compensated Temperature Range	-10~+50ºC
Creep(30 minutes)	±0.02%FS	Operating Temperature Range	-20~+60ºC
Zero Balance	±1.00%FS	Safe Overload	120%FS
Temperature Effect On Zero	±0.02%FS/10ºC	Cable	Φ5.4x3m
Temperature Effect On Output	±0.02%FS/10ºC	Cable Color Code	Input: red+ black- Output: green+ white-
Insulation Resistance	≥5000MΩ	Cable Color Code	Input: red+ black- Output: green+ white-

About us

Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Exhibition Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
