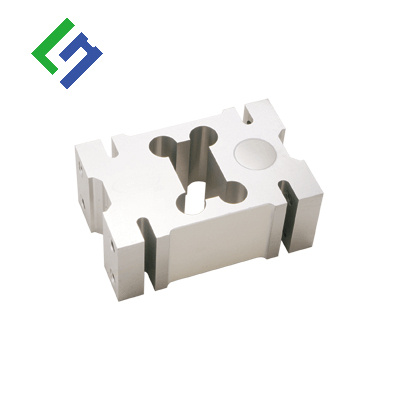

Lhe-4 Aluminum Platform Scale Load Cell

Name: Lhe-4 Aluminum Platform Scale Load Cell
Brand: all-electronics-online.com
SKU: 838548975
Availability: InStock
Rating: 5 (32 reviews)

Price:	US $ 25-47/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHE-4
Sensitivity:	2+/-0.1
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Pattern:	Single Point
Material:	Aluminum

Product Description

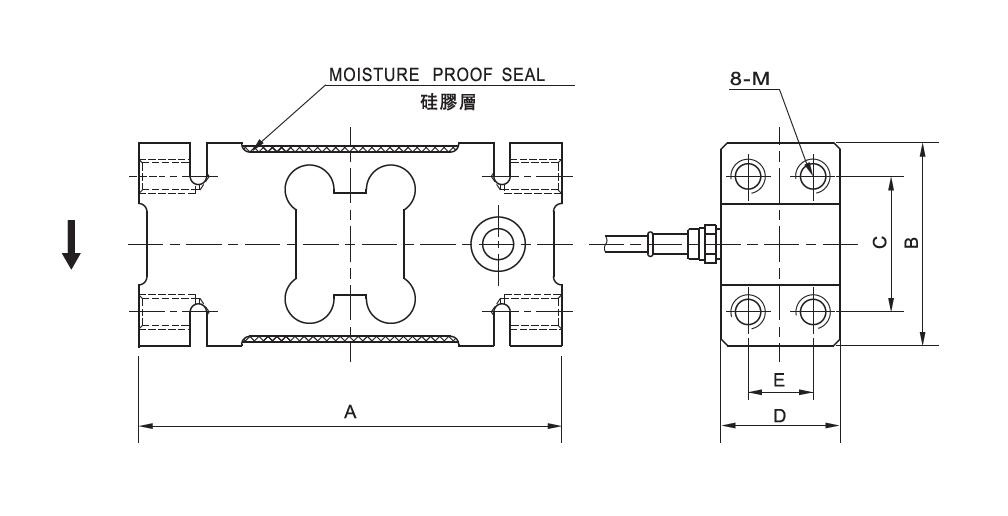

Double holes cantilever beam structure
Temperature compensated and four corners adjusted
Low profile, small size
Suitable for electronic price computing scale, table top scale, platform scale and other small capacity electronic scales

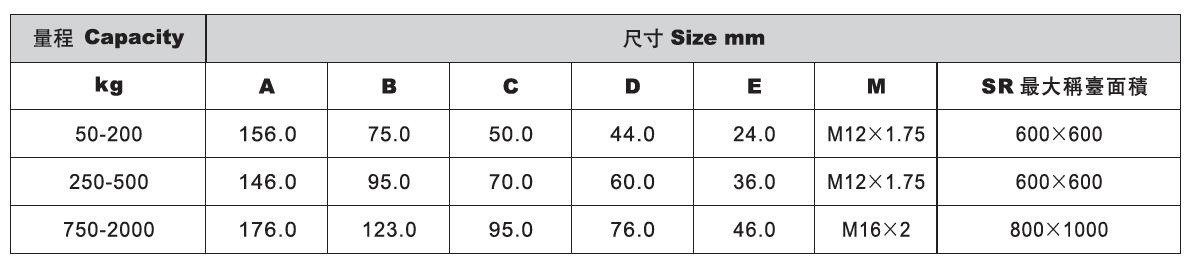

Capacity	50KG~2T
Rated output	2.00± 0.010mv/v
Nonlinearity	± 0.02%F.S,
Hysteresis	± 0.02%F.S,
Repeatability	± 0.01%F.S,
Creep(30)	± 0.02%F.S,
Zero balance	± 1%F.S
TCO	± 0.02%F.S /10º C
Input resistence	410± 15Ω
Output resistence	350± 3Ω
Insulation resistence	≥ 5000M
Operating tem range	-20~+60º C
Safe overload	120%F.S
Recommend excitation	10v DC/AC
Material	Aluminum

Exhibition Show

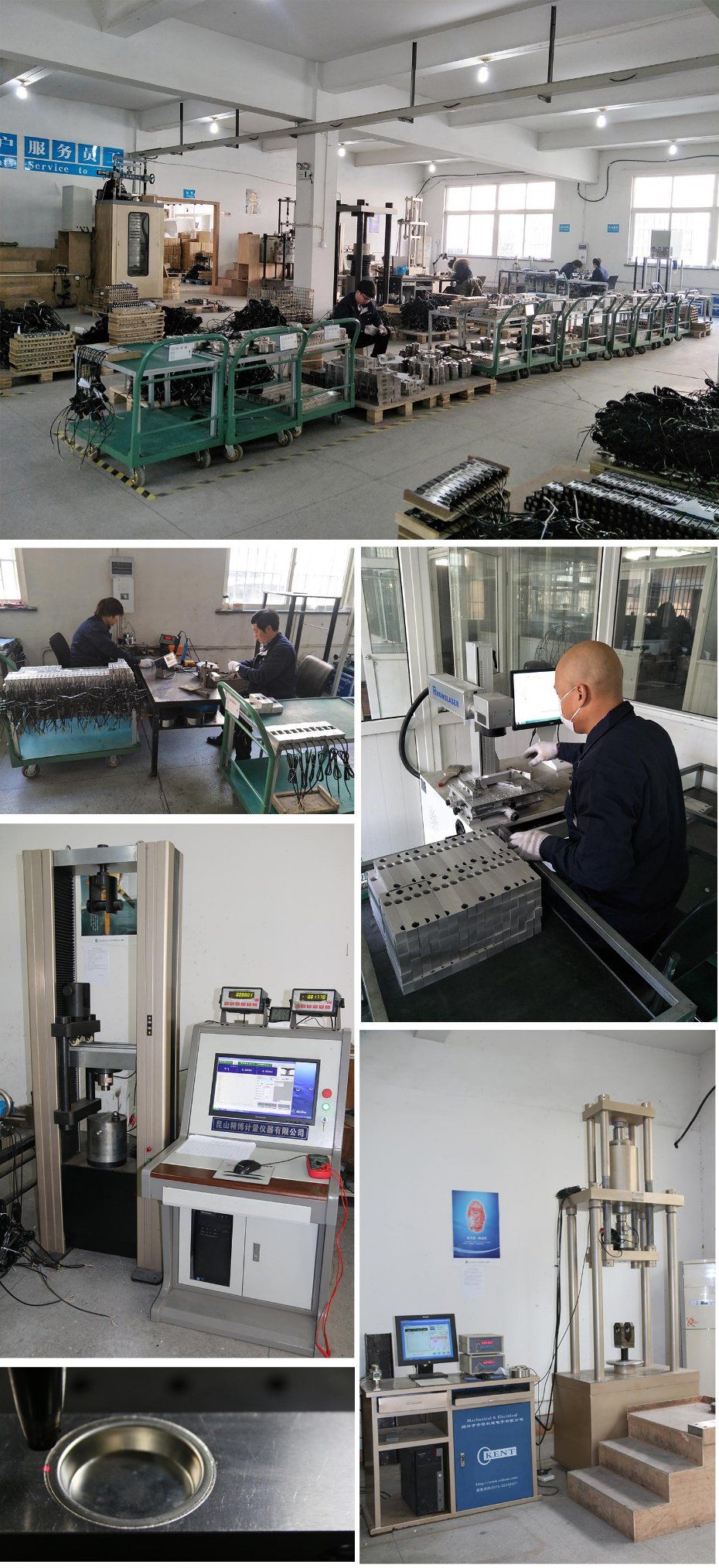

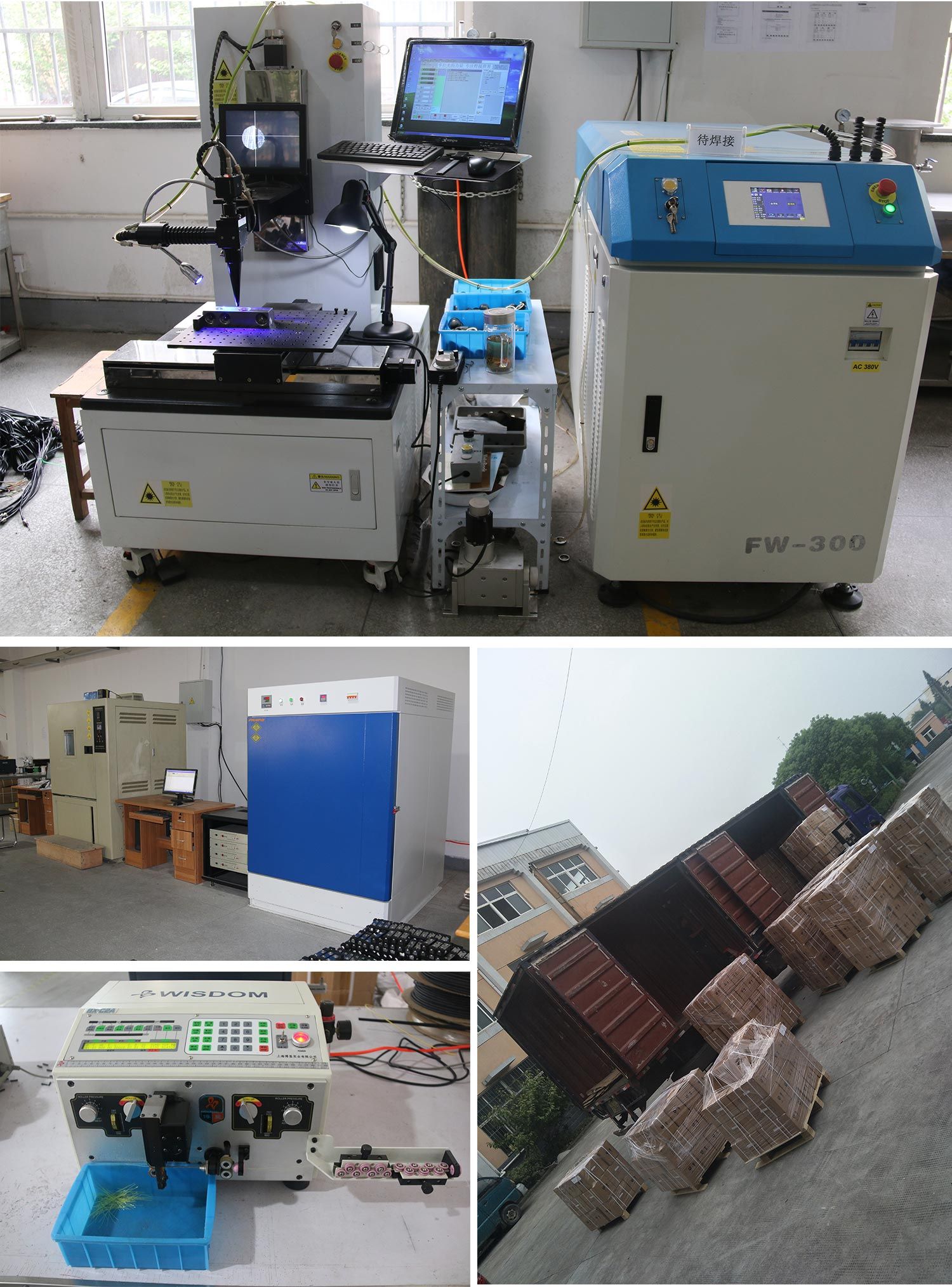

Company Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
