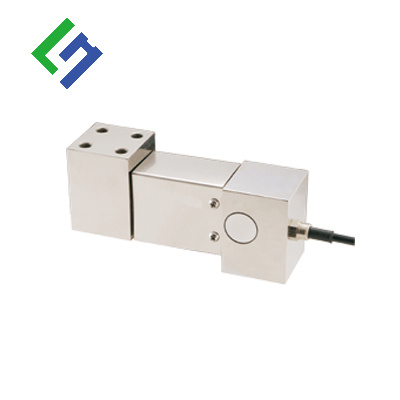

Lhe-8 Steel Load Cell for Platform Scale

Lhe-8 Steel Load Cell for Platform Scale
Price: US $ 39-55/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: LHE-8
Sensitivity: 2+/-0.005
Nonlinearity: +/-0.02%Fs
Hysteresis: +/-0.02%Fs
Repeatability: +/-0.01%Fs
Material: Aluminum

Product Description

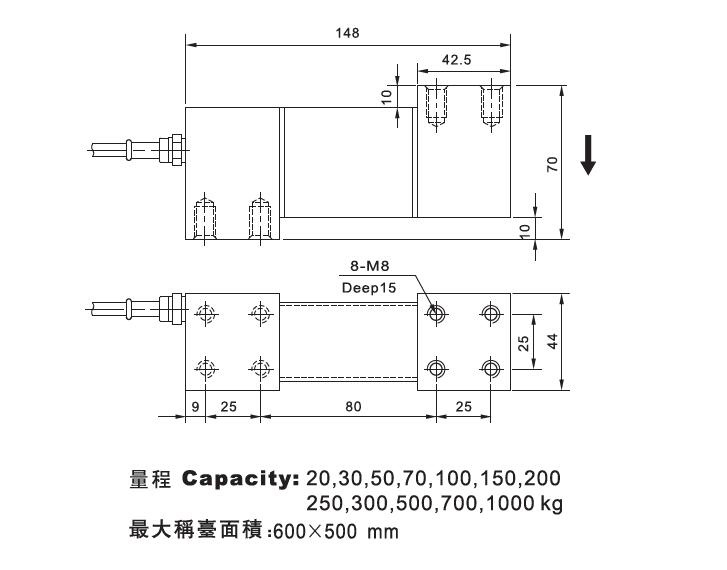

Capacity20KG~1T
Rated output2.00± 0.005mv/v
Nonlinearity± 0.02%F.S,
Hysteresis± 0.02%F.S,
Repeatability± 0.01%F.S,
Creep(30)± 0.03%F.S,
Zero balance± 1%F.S
TCO± 0.03%F.S  /10º C
Input resistence385± 10Ω
Output resistence350± 3Ω
Insulation resistence≥ 5000M
Operating tem range-20~+60º C
Safe overload120%F.S
Recommend excitation10v  DC/AC
Material Alloy steel or Stainless steel




Exhibition Show

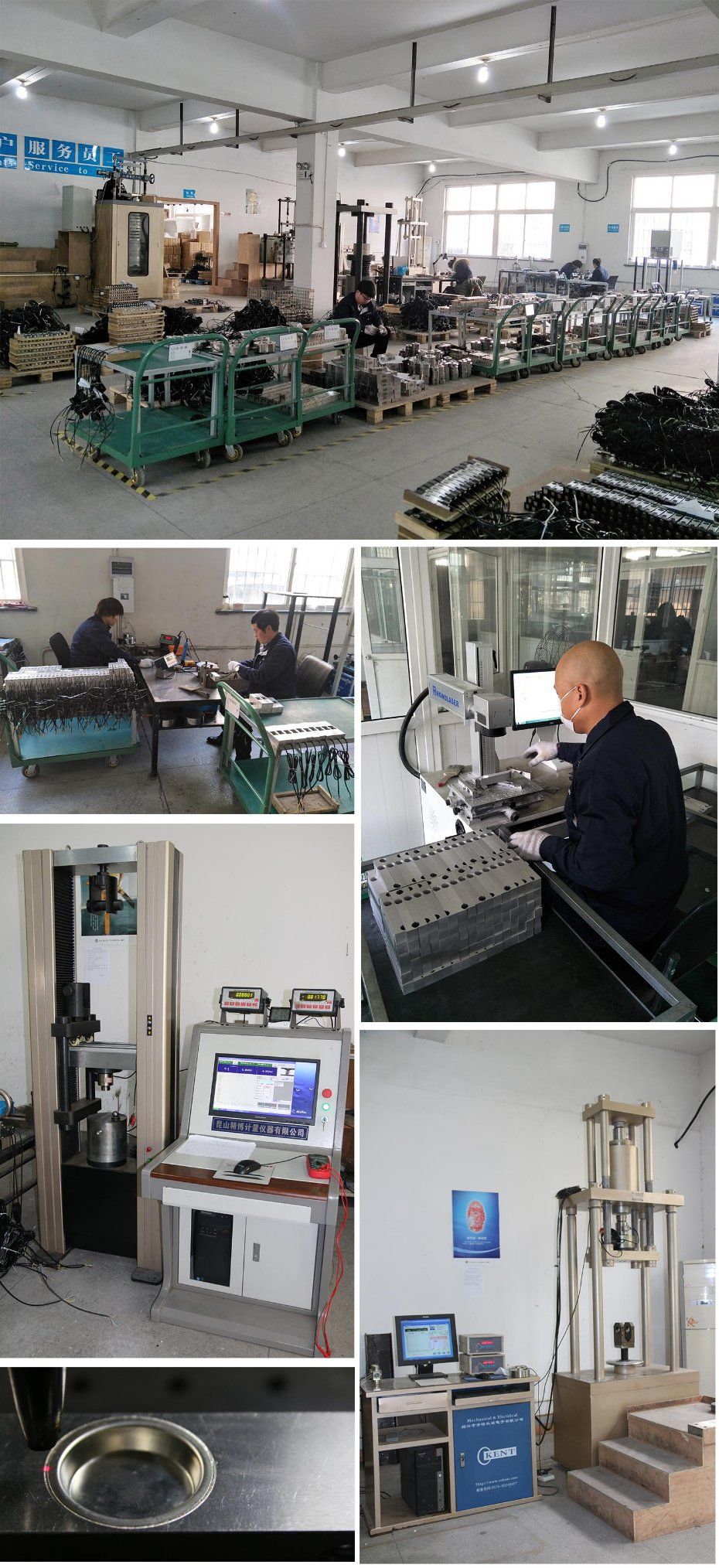

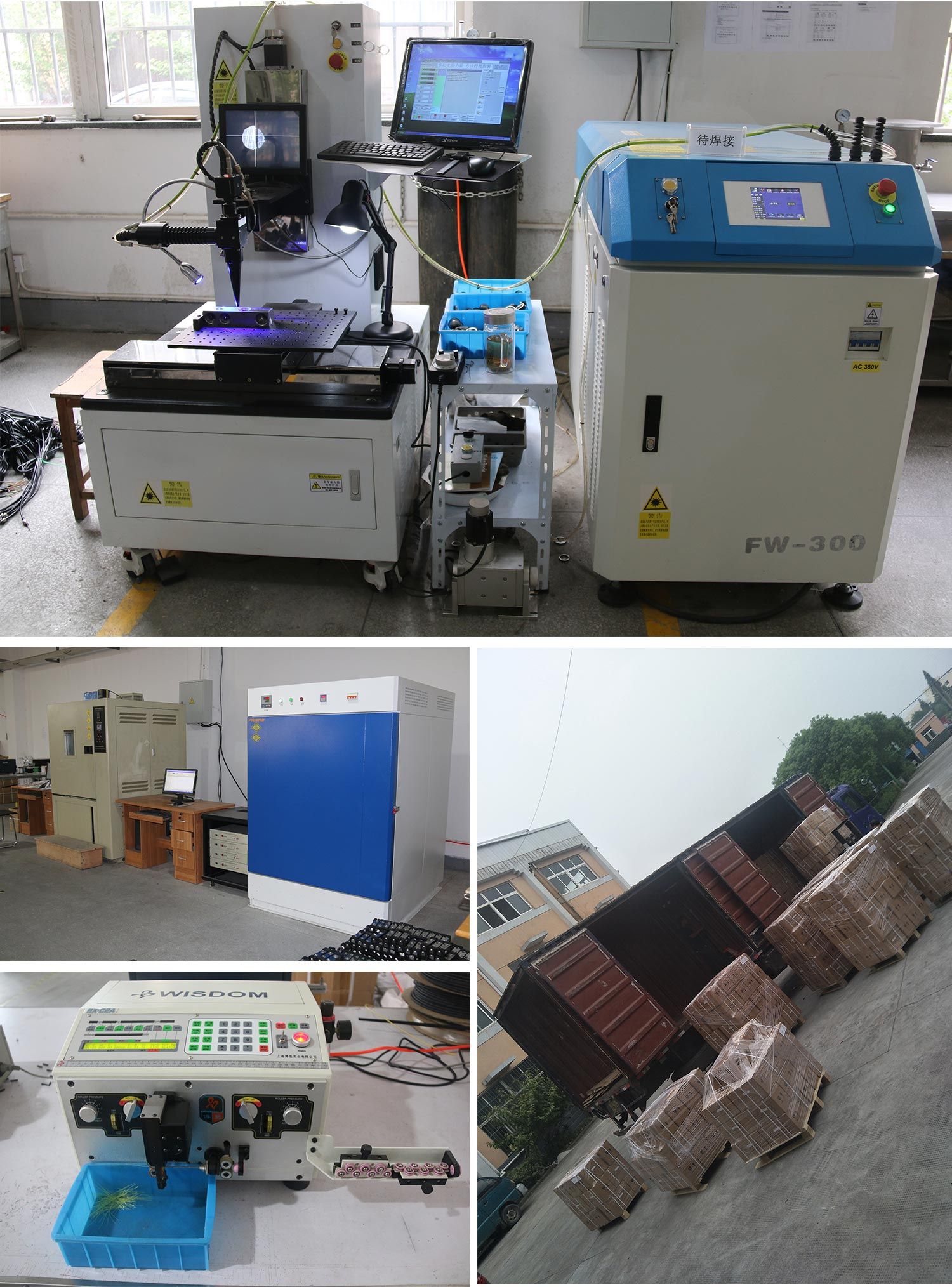

Company Show




Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
