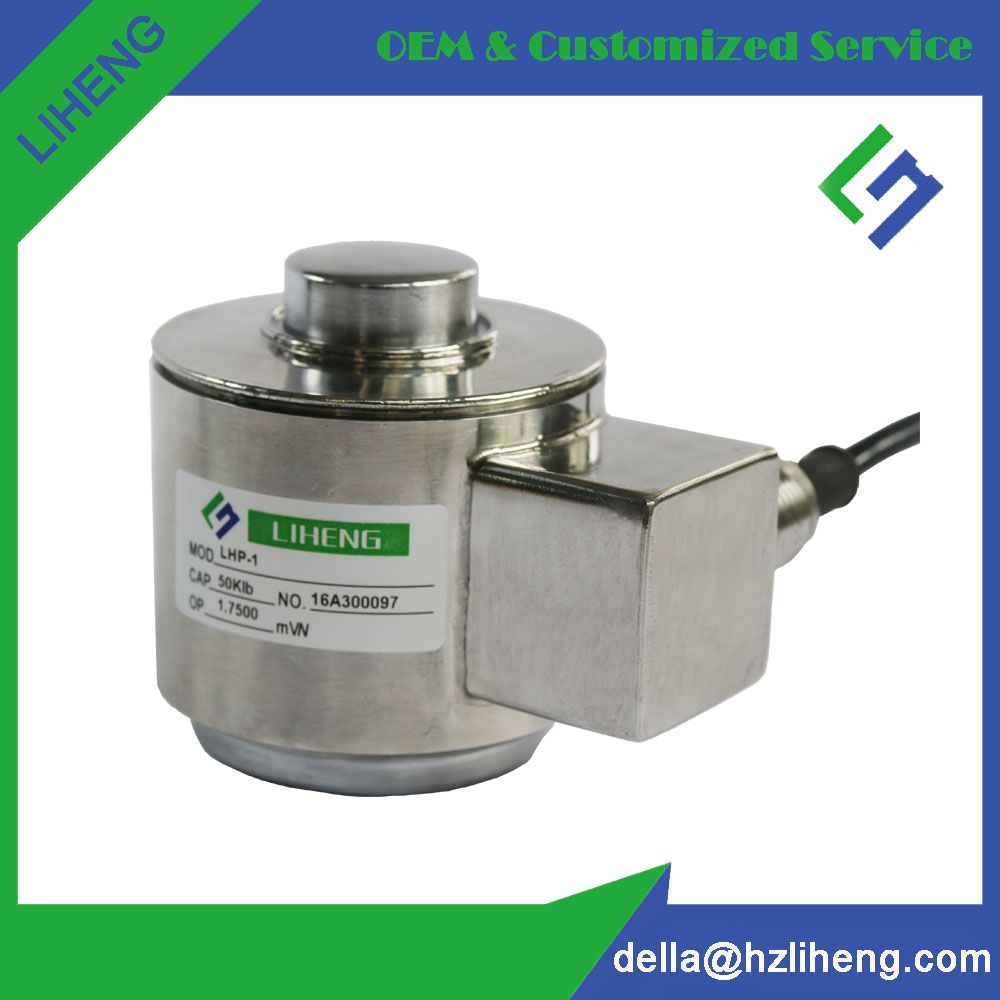

Lhp-1 Column Canister Load Cell for Compression

Name: Lhp-1 Column Canister Load Cell for Compression
Brand: all-electronics-online.com
SKU: 687387841
Availability: InStock
Rating: 4.7 (60 reviews)

Price:	US $ 80-1200/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHP-1
Sensitivity:	1.75+/-0.005,2.00+/-0.005
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Out-Wire:	4 or 6 Wire
Output Signal Type:	Digital or Analog Type
Material:	Metal or Stainless Steel
IP Rating:	IP67 or IP68

Product Description

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Specification

Capacity	5~450t
Rated output	1.75.00± 0.010mv/vor 2.00± 0.010mv/v
Nonlinearity	± 0.02%F. S
Hysteresis	± 0.02%F. S
Repeatability	± 0.01%F. S
Creep(30)	± 0.02%F. S
Zero balance	± 1%F. S
TCO	± 0.02%F. S /10º C
Input reistence	450± 5Ω
Output resistence	480± 3Ω
Insulation resistence	≥ 5000M
Operating tem range	-10~+50º C
Safe overloade	120%F. S
Recommend excitation	10v DC/AC
Material	Alloy steelor stainless steel

Exhibition Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
