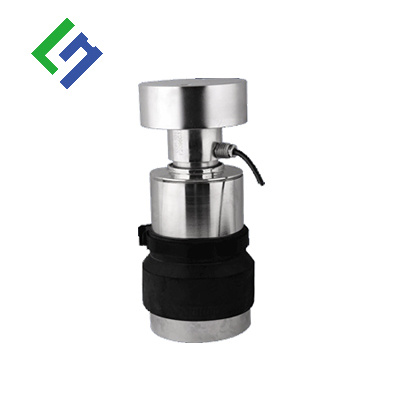

Lhp-15 Column Load Cell for Truck Scale

Name: Lhp-15 Column Load Cell for Truck Scale
Brand: all-electronics-online.com
SKU: 687389811
Availability: InStock
Rating: 4.7 (58 reviews)

Price:	US $ 130-160/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHP-15
Sensitivity:	2.00+/-0.005
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Output Signal Type:	4 or 6 Wires

Product Description

Specification The general data of liheng as below, but we can design and manufacture various kinds of load cells to meet different customers' demands.
Characteristic	LHP-15 load cell is made of high quality alloy steel, stainless steel, with spherical surface on both ends. It has good self-resetting, compact structure and good performance on water proof with argon welding. Its low profile is easily to be used among various truck scales, railway scales, hopper and tank scales, etc.
Materials	Alloy steel, Stainless steel
Suitable for	various truck scales, railway scales, hopper and tank scales, etc.
Capacity	10t, 20t, 30t, 40t
Sensitivity	2.00± 0.010	MV/V
Nonlinearity	± 0.02	%FS
Hysteresis	± 0.02	%FS
Repeatability	± 0.01	%FS
Creep(30 minutes)	± 0.02	%FS
Zero balance	± 1.00	%FS
Temperature effect on zero	± 0.02	%FS/10º C
Temperature effect on output	± 0.02	%FS/10º C
Input resistance	700± 5	Ω
Output resistance	700± 3	Ω
Insulation resistance	≥ 5000	MΩ
Excitation voltage	10	V(DC/AC)
Compensated temperature range	-10~+50	º C
Operating temperature range	-20~+60	º C
Safe overload	120	%FS
cable	Φ 6X12	M
Cable color code	Input: red+ black- Output: green+ white-

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Exhibition Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
