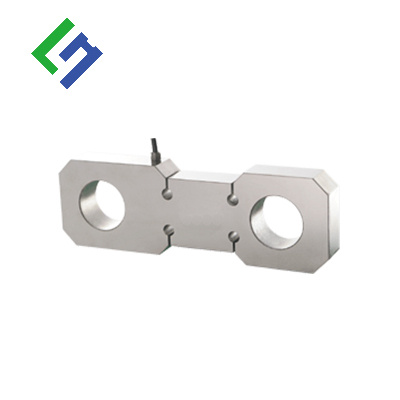

Lht-4 Tension Load Cell for Crane Scale

Name: Lht-4 Tension Load Cell for Crane Scale
Brand: all-electronics-online.com
SKU: 809346045
Availability: InStock
Rating: 4.6 (138 reviews)

Price:	US $ 50-800/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHT-4
Sensitivity:	1.5+/-0.005
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Pattern:	Tension Type

Product Description

1, Board and ring type

2, thin wall and blind hole structure

3, high presion

4, strong anti-deflective loading, good shock resistance

5, simple to install

6, moistureproof sealed, ideal for hostile environment

7, can make bigger capacity like 200t, 300t and so on.

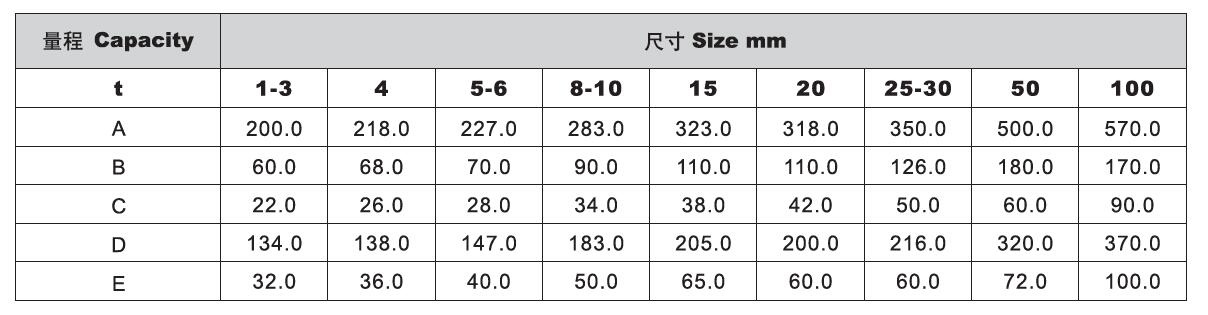

Capacity	1~100t
Rated output	1.50± 0.10mv/v
Nonlinearity	± 0.02%F. S,
Hysteresis	± 0.02%F. S,
Repeatability	± 0.01%F. S,
Creep(30)	± 0.02%F. S,
Zero balance	± 1%F. S
TCO	± 0.02%F. S /10º C
Input resistence	385± 10Ω
Output resistence	350± 3Ω
Insulation resistence	≥ 5000M
Operating tem range	-20~+60º C
Safe overload	120%F. S
Recommend excitation	10v DC/AC
Material	Alloy steel

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

Exhibition Show

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
