Huzhou Liheng Electronic Technology Co., Ltd. >> Lhy-7 Low Profile Load Cell for Weighing Scales

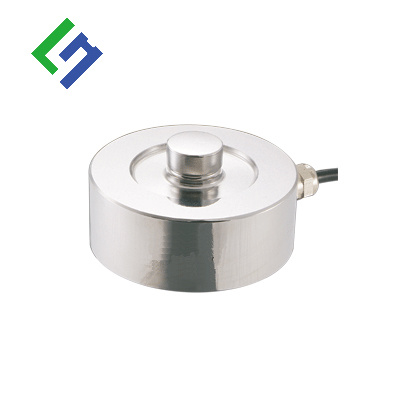

Lhy-7 Low Profile Load Cell for Weighing Scales

Lhy-7 Low Profile Load Cell for Weighing Scales
Price: US $ 44-88/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: LHY-7
Sensitivity: 2.00+/-0.005
Nonlinearity: +/-0.05%Fs
Hysteresis: +/-0.05%Fs
Repeatability: +/-0.02%Fs
Out-Wire: 4 or 6 Wires

Product Description

  Capacity  2.5~30t
  Rated output  2.00± 0.010mv/v
  Nolinearity  ± 0.05%F. S
  Hysteresis  ± 0.05%F. S
  Repeatability  ± 0.02%F. S
  Creep(30)  ± 0.02%F. S
  Zero balance  ± 1%F. S
  TCO  ± 0.02%F. S  /10 º C
  Input resistence  750± 10Ω
  Output resistence  700± 5Ω
  Insulation resistence  ≥ 5000M
  Operation tem range  -20~+60º C
  Safe overload  120%F. S
  Recommend excitation  10v  DC/AC
  Material  stainless steel



About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.


Exhibition Show


Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
