| Prod Model: |
QW294-005-LW |
| Battery Type: |
Li-Polymer Battery |
| Voltage: |
29.4V |
| Desktop Type: |
Yes |
| Delivery Date: |
15days |
| Warranty: |
One Year |
| Type: |
Lithium Battery |
| Charger Type: |
Electric Charger |
| Nominal Voltage: |
29.4V |
Product Description

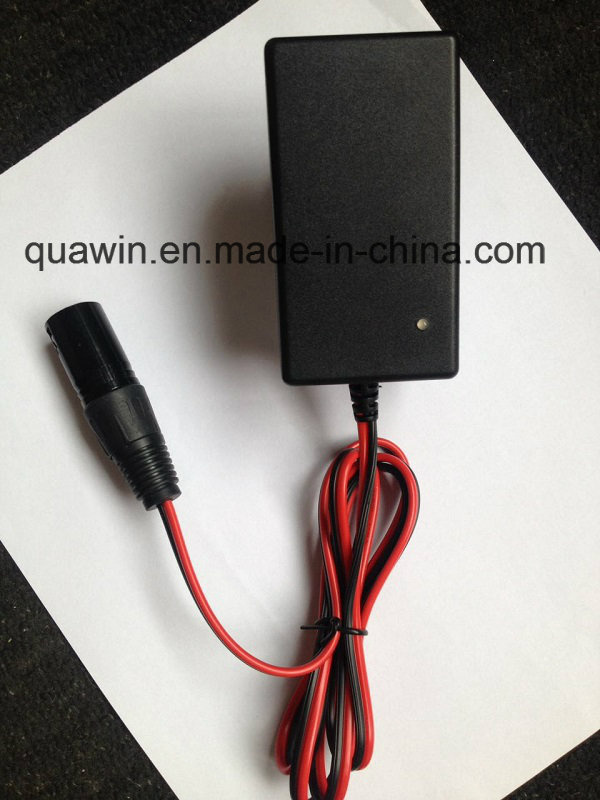

25.9V 0.5a Li-ion Lithium Polymer battery Charger
Quick Detail:
Brand Name: QUAWIN
Model Number: QW259-005-LW
Use: 25.9V Li-ion or Li-polymer battery pack
Type: Electric
Place of Origin: Guangdong China (Mainland)
Battery charger: Automatic battery charger 29.4V
Color: Black
Input voltage: 100-240VAC 50/60Hz
Output voltage: 29.4V
Output current: 0.5A
Output power: 14.7WH
Charge mode: CC- CV(Constant Current- Constant Voltage)
Output Connector: DC Jack, Small crocodile clip, Cigar lighter, XRL, Ring terminal
Packaging:
Inner package: White box/polybags/at your request
outer package: Carton
Specifications:
25.9V Li-ion or Lithium Polymer battery PACK
Features:
Charging mode: CC- CV(Constant Current- Constant Voltage)
High efficiency and low power consumption
Stabilized output and low noice
Efficiency(at 100% load): >=80%
Operating temperature: -10C ~ 45C
Storage temperature: -20C ~ 70C
Operating humidity: 5%~90%RH
Specification:
Input: AC 100-240V 50-60Hz 5.0A
Output: DC 29.4V
Charging current: 0.5A
Safety protections:
Over Voltage protection
Short Circuit protection
Polarity error protection
Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
Charging: Red LED
Battery Full: Green LED
| ITEM | QW074-080-L | QW074-090-L | QW074-100-L | QW111-050-L | QW111-060-L | QW111-070-L |
| Output voltage: | 8.4V | 8.4V | 8.4V | 12.6V | 12.6V | 12.6V |
| Rated output current: | 8A | 9A | 10A | 5A | 6A | 7A |
| Output power: | 67.2W | 75.6W | 84W | 63W | 75.6W | 88.2W |
| ITEM | QW111-080-L | QW111-090-L | QW111-100-L | QW111-110-L | QW148-040-L | QW148-050-L |
| Output voltage: | 12.6V | 12.6V | 12.6V | 12.6V | 16.8V | 16.8V |
| Rated output current: | 8A | 9A | 10A | 11A | 4A | 5A |
| Output power: | 100.8W | 113.4W | 126W | 138.6W | 67.2W | 84W |
| ITEM | QW148-060-L | QW148-070-L | QW148-080-L | QW148-090-L | QW185-030-L | QW185-040-L |
| Output voltage: | 16.8V | 16.8V | 16.8V | 16.8V | 21V | 21V |
| Rated output current: | 6A | 7A | 8A | 9A | 3A | 4A |
| Output power: | 100.8W | 117.6W | 134.4W | 151.2W | 63W | 84W |
| ITEM | QW185-050-L | QW185-060-L | QW185-070-L | QW222-030-L | QW222-040-L | QW222-050-L |
| Output voltage: | 21V | 21V | 21V | 25.2V | 25.2V | 25.2V |
| Rated output current: | 5A | 6A | 7A | 3A | 4A | 5A |
| Output power: | 105W | 126W | 147W | 75.6W | 100.8W | 126W |
| ITEM | QW222-060-L | QW259-030-L | QW259-040-L | QW259-050-L | QW296-020-L | QW296-030-L |
| Output voltage: | 25.2V | 29.4V | 29.4V | 29.4V | 33.6V | 33.6V |
| Rated output current: | 6A | 3A | 4A | 5A | 2A | 3A |
| Output power: | 151.2W | 88.2W | 117.6W | 147W | 67.2W | 100.8W |
| ITEM | QW296-040-L | QW333-020-L | QW333-030-L | QW333-040-L | QW370-020-L | QW370-030-L |
| Output voltage: | 33.6V | 37.8V | 37.8V | 37.8V | 42V | 42V |
| Rated output current: | 4A | 2A | 3A | 4A | 2A | 3A |
| Output power: | 134.4W | 75.6W | 113.4W | 151.2W | 84W | 126W |
| ITEM | QW370-035-L | QW407-020-L | QW407-030-L | QW444-020-L | QW444-030-L | QW481-020-L |
| Output voltage: | 42V | 46.2V | 46.2V | 50.4V | 50.4V | 54.6V |
| Rated output current: | 3.5A | 2A | 3A | 2A | 2.5A | 2A |
| Output power: | 147W | 92.4W | 138.6W | 100.8W | 151.2 | 109.2 |
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.
We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.
As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.
We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.
We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.
To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
